5-50 Term. 29 Low Frequency

Range:
100 Hz* [0 - 110000 Hz]

5-51 Term. 29 High Frequency

Range:
100 Hz* [0 - 110000 Hz]

5-52 Term. 29 Low Ref./Feedb. Value

Range:
0.000 N/A* [-999999.999 - 999999.999 N/A]

5-53 Term. 29 High Ref./Feedb. Value

Range:
100.000 N/ [-999999.999 - 999999.999 N/A]
A*
5-54 Pulse Filter Time Constant #29
Range:
100 ms* [1 - 1000 ms]
5-55 Term. 33 Low Frequency
Range:
100 Hz* [0 - 110000 Hz]
5-56 Term. 33 High Frequency
Range:
100 Hz* [0 - 110000 Hz]
5-57 Term. 33 Low Ref./Feedb. Value
Range:
0.000 N/A* [-999999.999 - 999999.999 N/A]
Function:
Enter the low frequency limit corresponding to the low motor shaft speed (i.e. low reference value)
Term. 29 Low Ref./Feedb. Value
in par. 5-52
Function:
Enter the high frequency limit corresponding to the high motor shaft speed (i.e. high reference
Term. 29 High Ref./Feedb. Value
value) in par. 5-53
Function:
Enter the low reference value limit for the motor shaft speed [RPM]. This is also the lowest feedback
value, see also par. 5-57 Term. 33 Low Ref./Feedb. Value
Function:
Enter the high reference value [RPM] for the motor shaft speed and the high feedback value, see
also par. 5-58 Term. 33 High Ref./Feedb. Value
Function:
Enter the pulse filter time constant. The pulse filter dampens oscillations of the feedback signal,
which is an advantage if there is a lot of noise in the system. A high time constant value results in
better dampening but also increases the time delay through the filter.
This parameter cannot be adjusted while the motor is running.
Function:
Enter the low frequency corresponding to the low motor shaft speed (i.e. low reference value) in
par. 5-57 Term. 33 Low Ref./Feedb. Value
Function:
Enter the high frequency corresponding to the high motor shaft speed (i.e. high reference value) in
Term. 33 High Ref./Feedb. Value
par. 5-58
Function:
Enter the low reference value [RPM] for the motor shaft speed. This is also the low feedback value,
Term. 29 Low Ref./Feedb. Value
see also par. 5-52
MG.11.C9.02 - VLT ® is a registered Danfoss trademark
3 Parameter Description

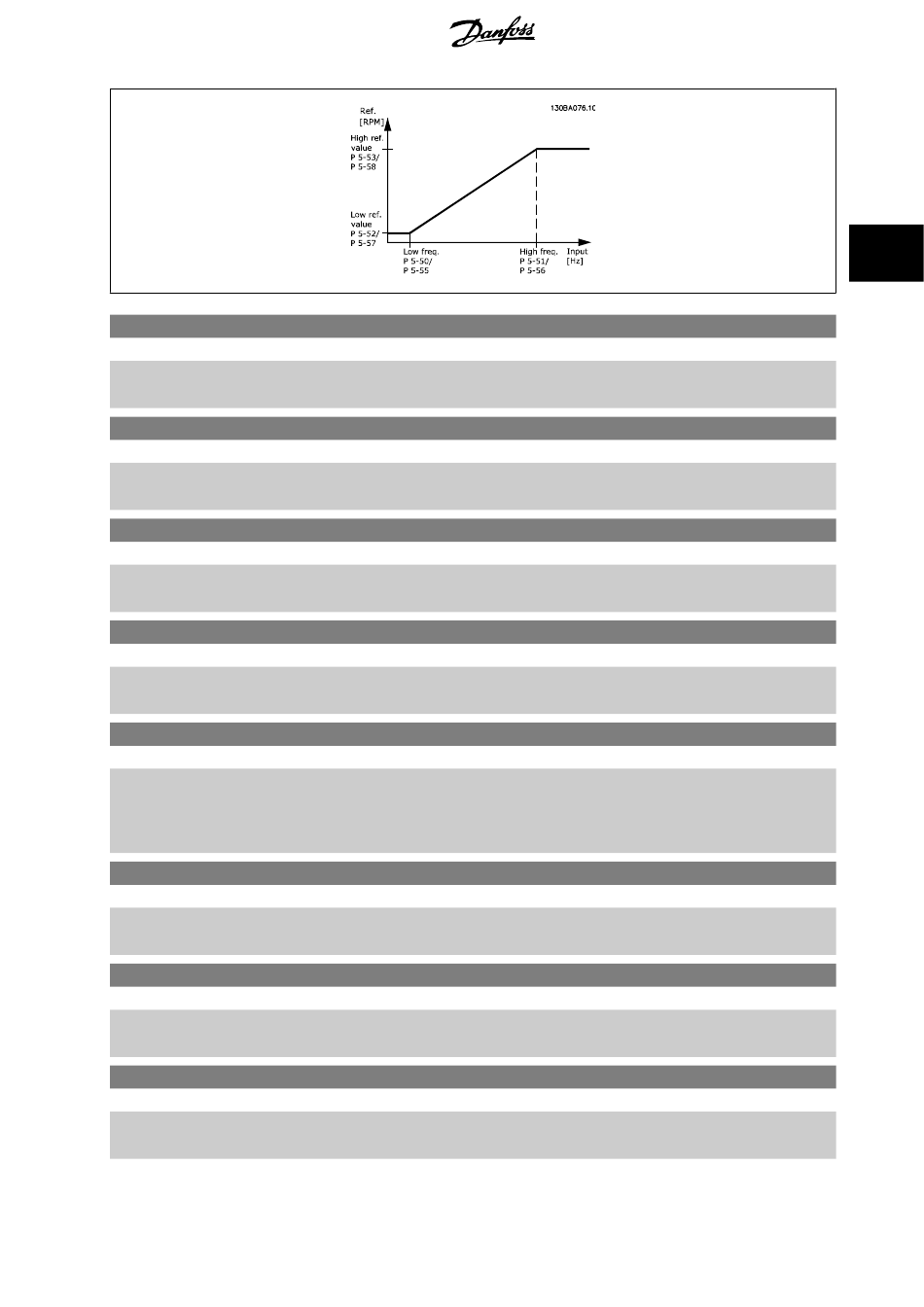

. Refer to the diagram in this section.
.
.
.
.
.
.
