2 How to Programme

2.1.6 Function Set-ups

The Function set-up provides quick and easy access to all parameters required for the majority of VLT HVAC Drive applications including most VAV and
2 CAV supply and return fans, cooling tower fans, Primary, Secondary and Condenser Water Pumps and other pump, fan and compressor applications.
How to access Function set-up - example

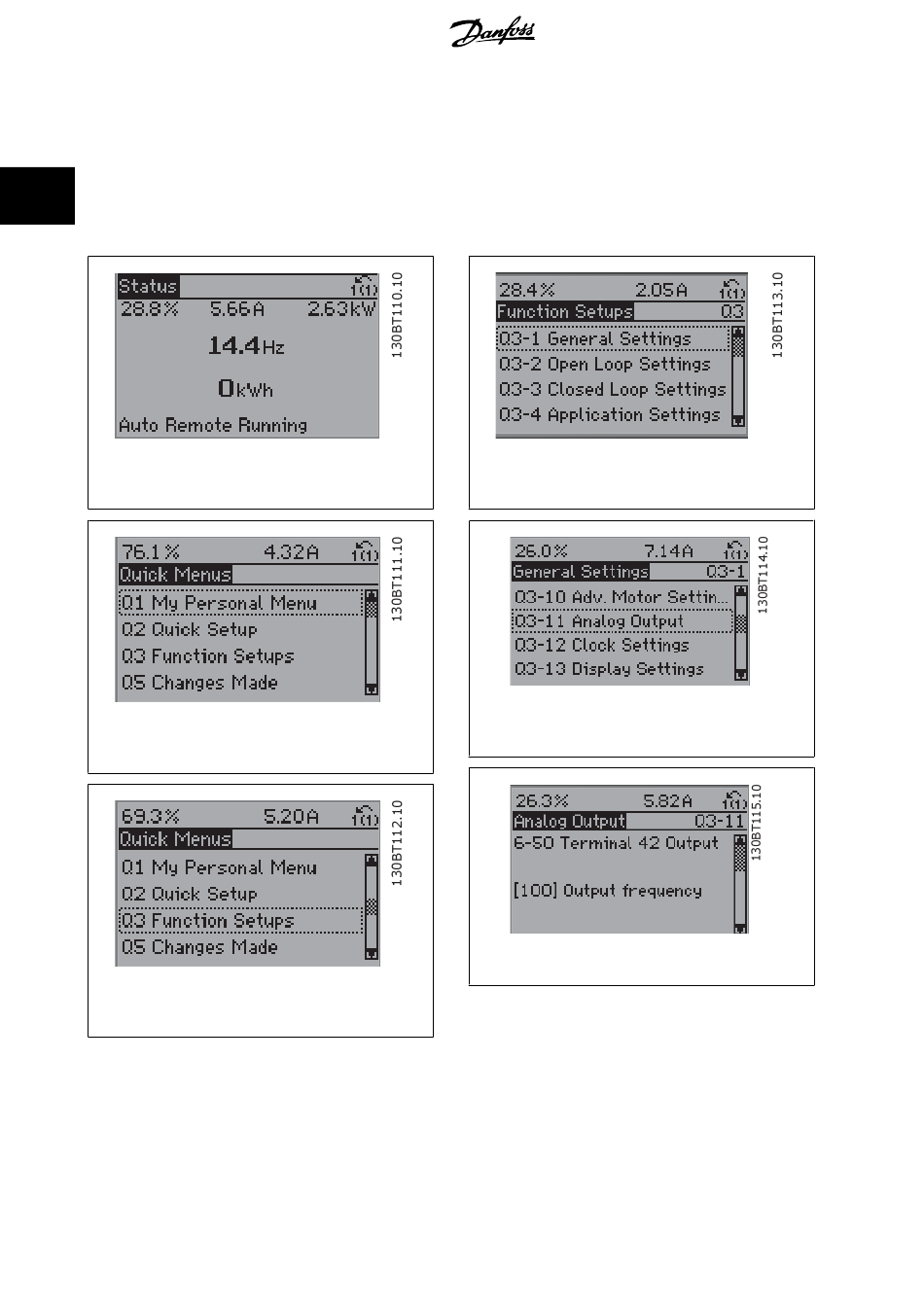

Illustration 2.7: Step 1: Turn on the frequency converter
(yellow LED lights)
Illustration 2.8: Step 2: Press the [Quick Menus] button
(Quick Menus choices appear).
Illustration 2.9: Step 3: Use the up/down navigation keys to
scroll down to Function set-ups. Press [OK].
24
Illustration 2.10: Step 4: Function set-ups choices appear.
Choose Q3-1
Illustration 2.11: Step 5: Use the up/down navigation keys
to scroll down to i.e. Q3-11
Illustration 2.12: Step 6: Choose par. 6-50. Press [OK].
MG.11.C9.02 - VLT ® is a registered Danfoss trademark
®
VLT HVAC Drive Programming Guide
General Settings
. Press [OK].
Analog Outputs . Press [OK].
