Secton 8 - Troubleshootng - 3084RT Models

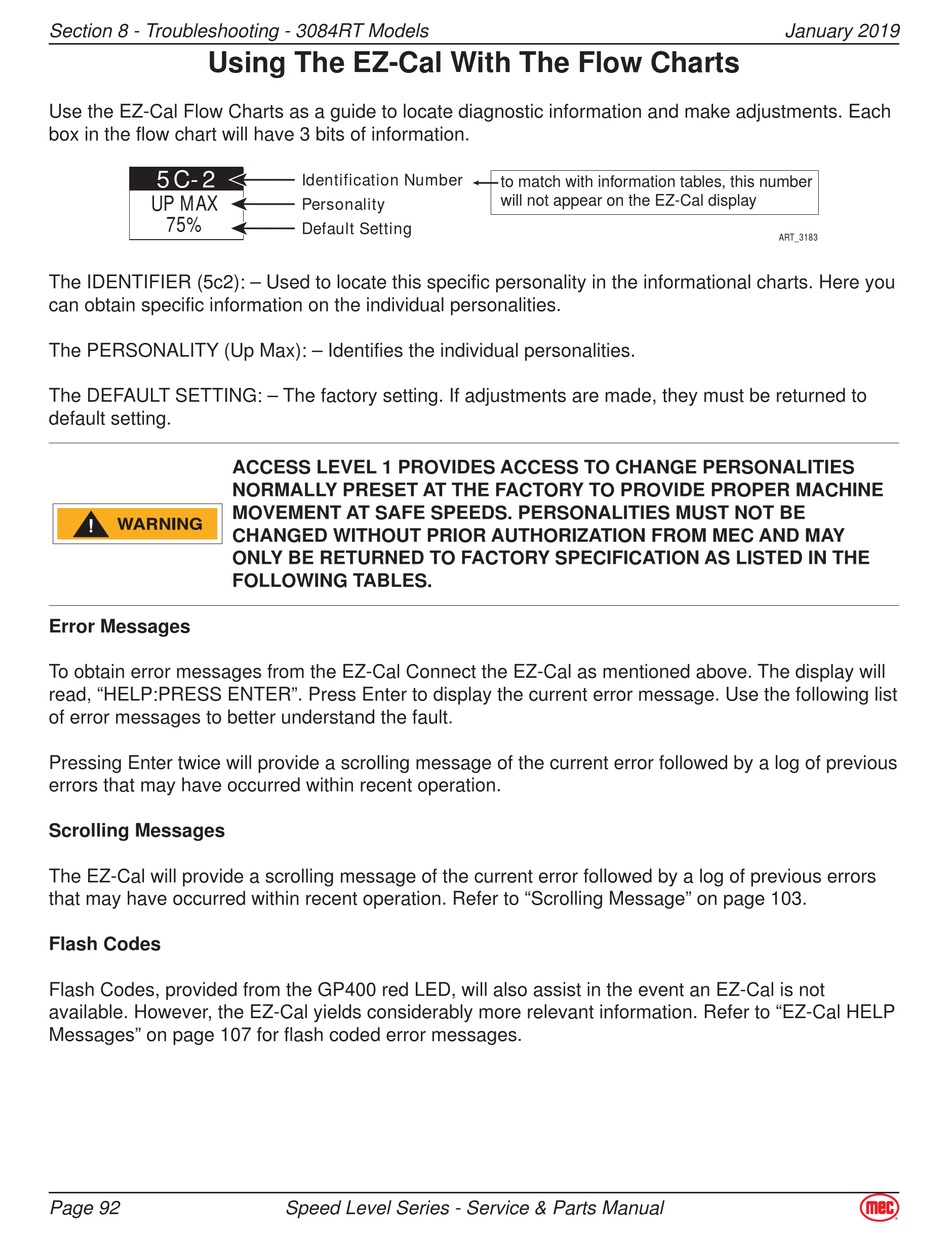

Using The EZ-Cal With The Flow Charts
Use the EZ-Cal Flow Charts as a guide to locate diagnostic information and make adjustments. Each
box in the flow chart will have 3 bits of information.
5C-2
UP MAX
75%
The IDENTIFIER (5c2): – Used to locate this specific personality in the informational charts. Here you
can obtain specific information on the individual personalities.
The PERSONALITY (Up Max): – Identifies the individual personalities.
The DEFAULT SETTING: – The factory setting. If adjustments are made, they must be returned to
default setting.
Error Messages
To obtain error messages from the EZ-Cal Connect the EZ-Cal as mentioned above. The display will
read, "HELP:PRESS ENTER". Press Enter to display the current error message. Use the following list
of error messages to better understand the fault.
Pressing Enter twice will provide a scrolling message of the current error followed by a log of previous
errors that may have occurred within recent operation.
Scrolling Messages
The EZ-Cal will provide a scrolling message of the current error followed by a log of previous errors
that may have occurred within recent operation. Refer to "Scrolling Message" on page 103.
Flash Codes
Flash Codes, provided from the GP400 red LED, will also assist in the event an EZ-Cal is not
available. However, the EZ-Cal yields considerably more relevant information. Refer to "EZ-Cal HELP
Messages" on page 107 for flash coded error messages.
Page 92
Identification Number
Personality
Default Setting
ACCESS LEVEL 1 PROVIDES ACCESS TO CHANGE PERSONALITIES
NORMALLY PRESET AT THE FACTORY TO PROVIDE PROPER MACHINE
MOVEMENT AT SAFE SPEEDS������ PERSONALITIES MUST NOT BE
CHANGED WITHOUT PRIOR AUTHORIZATION FROM MEC AND MAY
ONLY BE RETURNED TO FACTORY SPECIFICATION AS LISTED IN THE
FOLLOWING TABLES������
Speed Level Seres - Servce & Parts Manual
to match with information tables, this number
will not appear on the EZ-Cal display
January 2019
ART_3183
