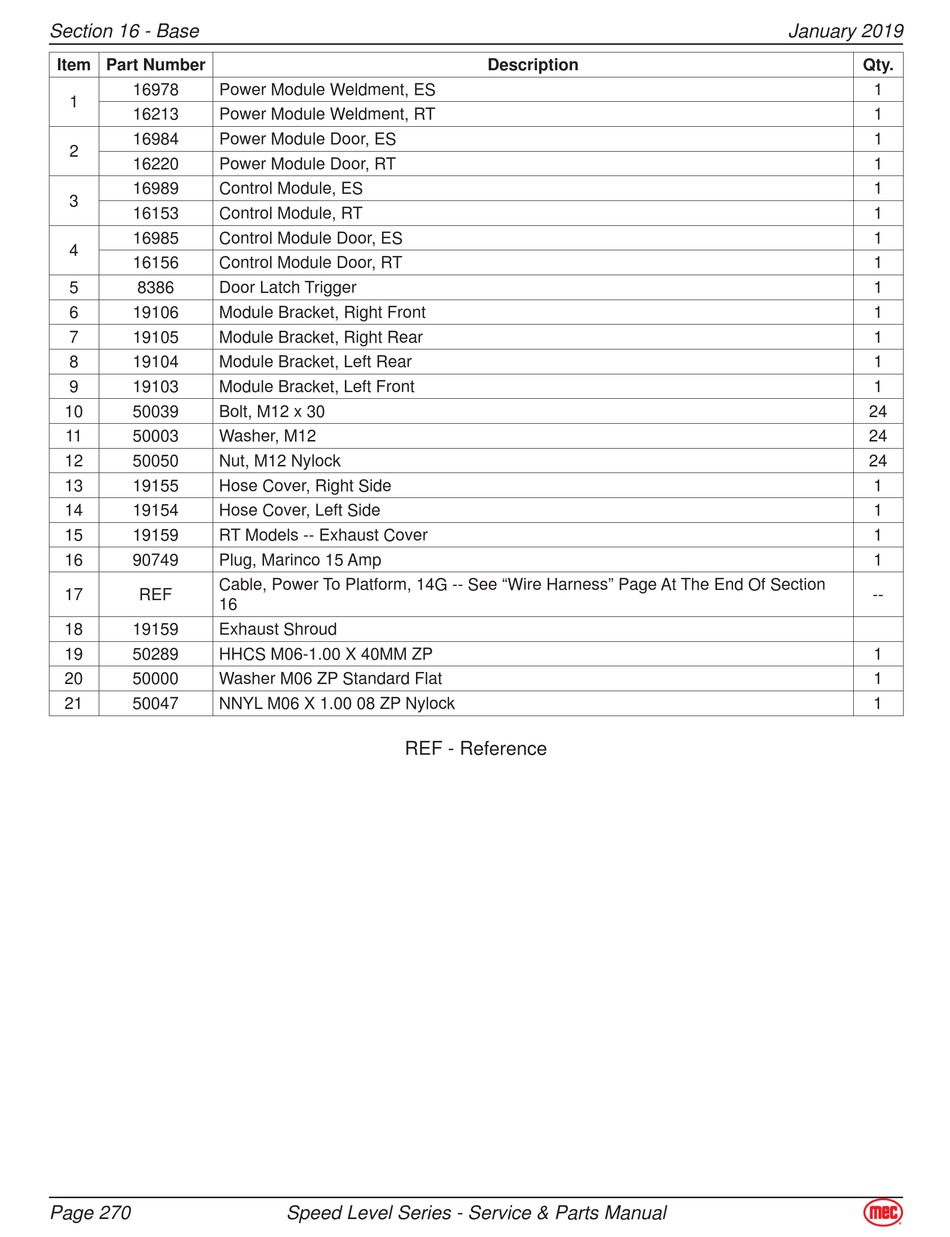

January - Mec Speed Level Series Service & Parts Manual

Secton 16 - Base
Item Part Number
16978 Power Module Weldment, ES
1
16213 Power Module Weldment, RT
16984 Power Module Door, ES
2
16220 Power Module Door, RT
16989 Control Module, ES
3
16153 Control Module, RT
16985 Control Module Door, ES
4
16156 Control Module Door, RT
5 8386 Door Latch Trigger
6 19106 Module Bracket, Right Front
7 19105 Module Bracket, Right Rear
8 19104 Module Bracket, Left Rear
9 19103 Module Bracket, Left Front
10 50039 Bolt, M12 x 30
11 50003 Washer, M12
12 50050 Nut, M12 Nylock
13 19155 Hose Cover, Right Side
14 19154 Hose Cover, Left Side
15 19159 RT Models -- Exhaust Cover
16 90749 Plug, Marinco 15 Amp
Cable, Power To Platform, 14G -- See "Wire Harness" Page At The End Of Section
17 REF
16
18 19159 Exhaust Shroud
19 50289 HHCS M06-1.00 X 40MM ZP
20 50000 Washer M06 ZP Standard Flat
21 50047 NNYL M06 X 1.00 08 ZP Nylock
Page 270
REF - Reference
Speed Level Seres - Servce & Parts Manual
Description

January 2019

Qty������
1
1
1
1
1
1
1
1
1
1
1
1
1
24
24
24
1
1
1
1
--
1
1
1
