Secton 5 - Hydraulc System

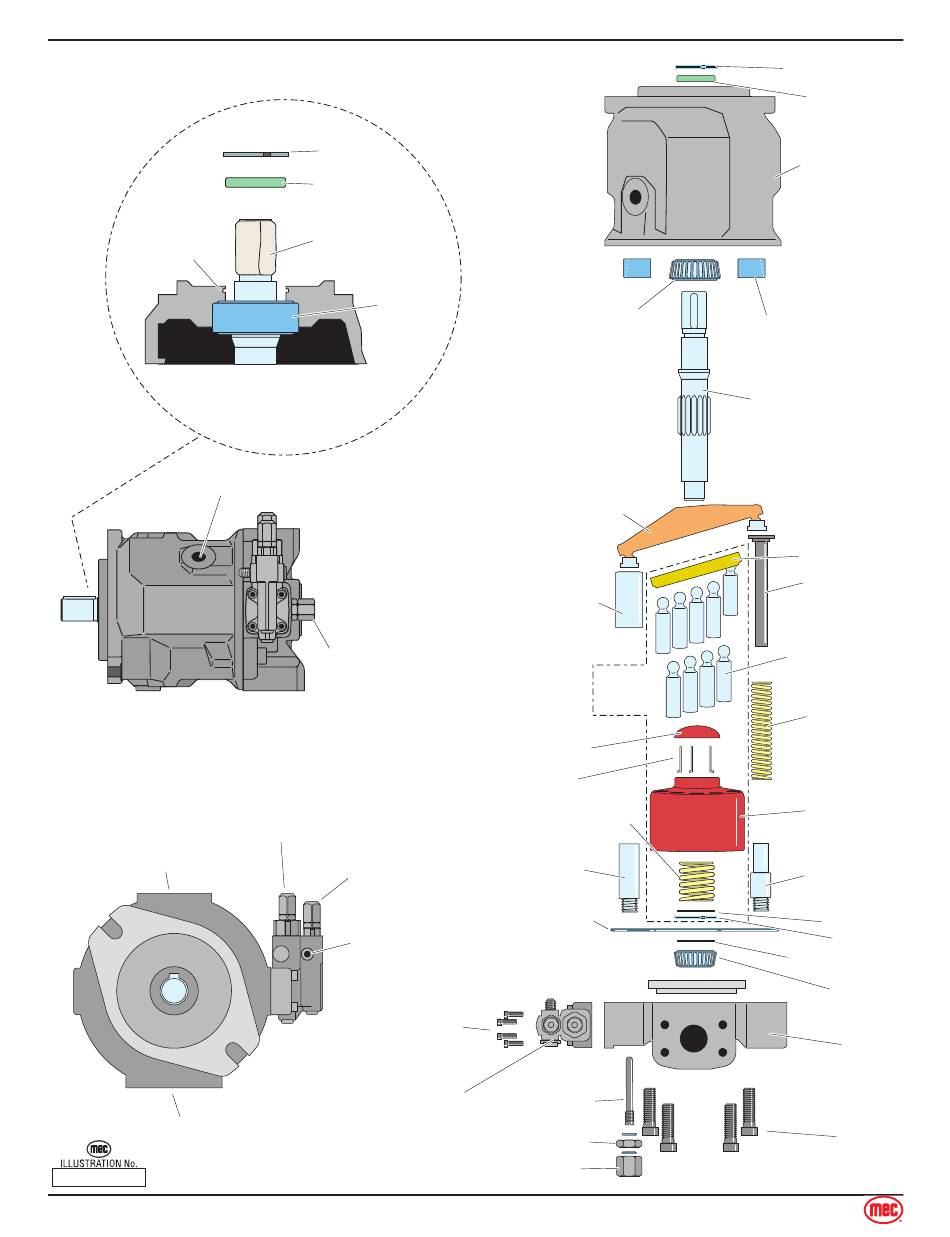

Hydraulic Pump
3084RT
Snap Ring
Groove
Shaft Seal Installation
Case Drain
Pressure Port
Suction Port
ART_3285
Page 23
Snap Ring
Shaft Seal
Drive shaft splines
Covered with tape
To protect seal during
Installation
Roller
Bearing
Port
Minimum Flow
Adjustment
Main Pressure
Adjustment
Standby Pressure
Adjustment
Line Sense
Port
Speed Level Seres - Servce & Parts Manual
Swash
Plate
Control
Piston
Retainer Ball
Seal Pins
Spring
Control
Piston
Guide
O-ring
Allen
Head
Screws
Control
Min Flow
Valve
Stopper
Stop Nut
Cap Nut
Bearing
Bearing
Shell
Drive
Shaft
Rotary
Group
January 2019
Snap
Ring
Shaft
Seal
Housing
Retainer
Plate
Piston
Pistons
(9 total)
Piston
Spring
Piston
Cylinder
Piston Guide
Shim
Snap Ring
Shim
Bearing
Port
Body
Allen
Head
Screws
