Mec Speed Level Series Service & Parts Manual page 204

Secton 11 - Controls

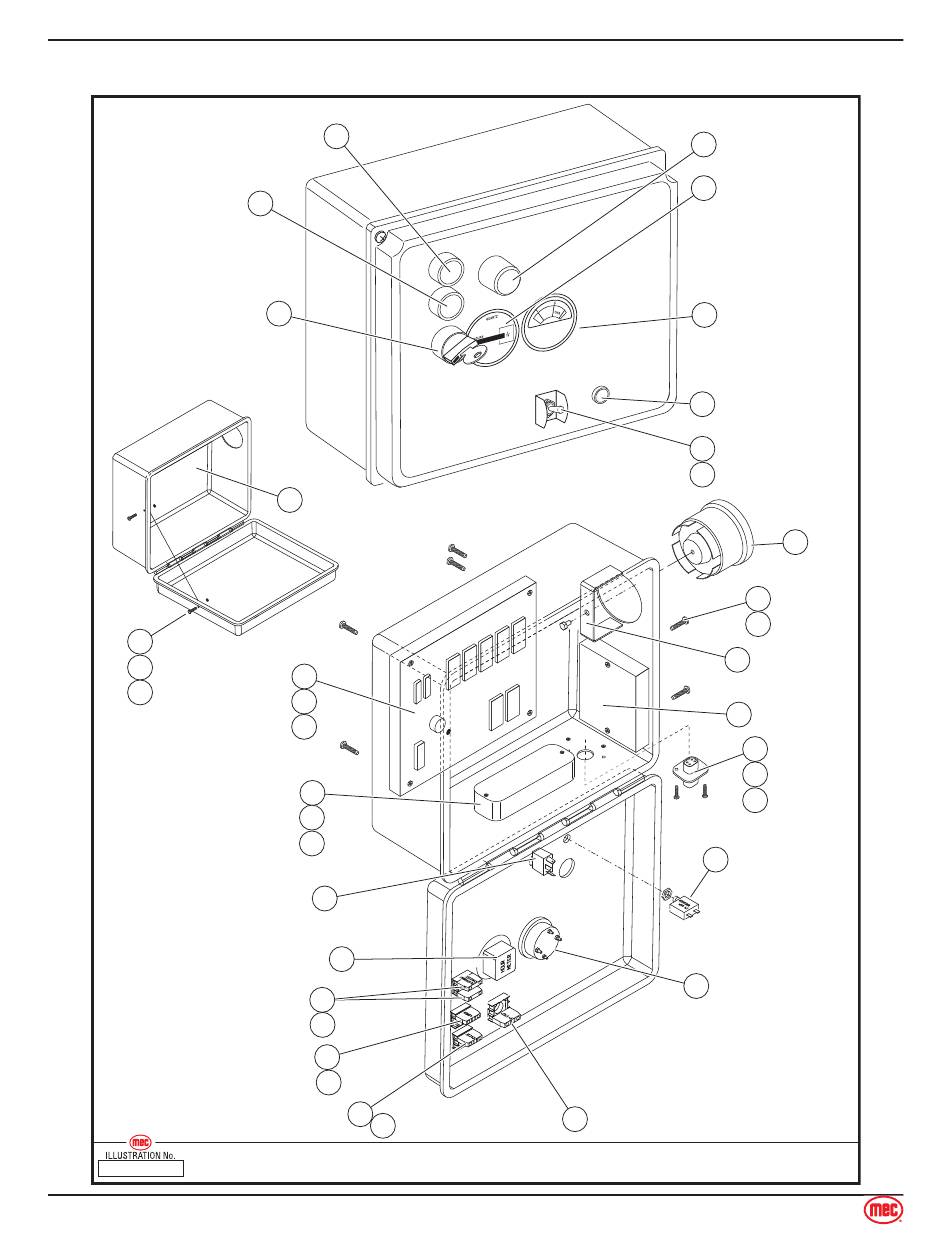

Lower Controls, 3084ES Electric Models
Raise (Green)
Lower (Green)
Platform / Base
Selector Switch
20 x2
21 x2
22
Connector
Emergency Lower
Toggle Switch
Platform / Base - N.O.
Lower - N.O.
ART_3106
Page 197
2
2
1
23
13
GP400
18 x4
19 x4
14
20 x2
21 x2
7
4
Hour Meter
15
9 x2
15
9
15
Raise - N.O.
9
Speed Level Seres - Servce & Parts Manual
Emergency Stop
3
4 Hour Meter
Charge Indicator
5
1 5
6 Circuit Breaker
Emergency Lower
7
Toggle Switch
16
11
12
17
20 x2
21 x2
Circuit Breaker
6
Charge Indicator
5
3
Emergency Stop
Lower Controls, Electric
January 2019
10
Alarm
18 x2
19 x2
TBM
