Service & Parts Manual

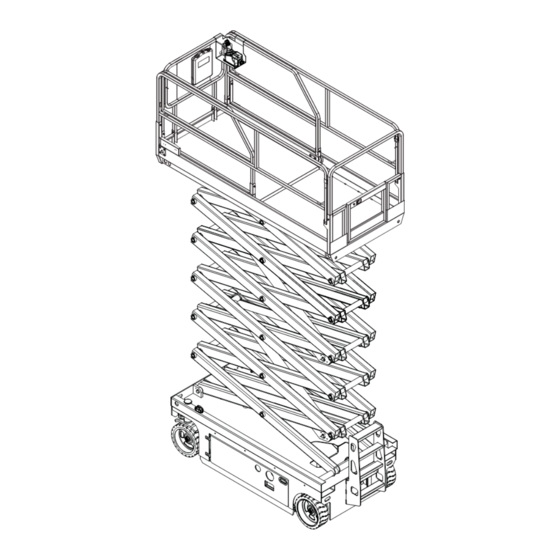

1930SE Serial Number Range 16400000 - Up
2632SE Serial Number Range 16500000 - Up
3346SE Serial Number Range 16600000 - Up
4046SE Serial Number Range 16700000 - Up
4555SE Serial Number Range 16800001 - Up
SE Series
1930SE
2632SE
3346SE
4046SE
4555SE
ART_4908
Part # 94124
March 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SE Series and is the answer not in the manual?

Questions and answers

Related Manuals for Mec SE Series

Summary of Contents for Mec SE Series

  • Page 1 Service & Parts Manual SE Series 1930SE 2632SE 3346SE 4046SE 4555SE ART_4908 1930SE Serial Number Range 16400000 - Up Part # 94124 2632SE Serial Number Range 16500000 - Up March 2020 3346SE Serial Number Range 16600000 - Up 4046SE Serial Number Range 16700000 - Up...
  • Page 2 Updated all Platform Extension Assembly March 2020 Updated Lower Lift Cylinder Assembly MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1 - 877 - 632 - 5438 Phone: 1 - 559 - 842 - 1500 Fax: 1 - 559 - 842 - 1520 info@MECawp.com...

  • Page 3: Table Of Contents

    Service Introduction ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ Section 1 - MEC Operator Policy ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ MEC Operator Polcy ������ ������ ������...
  • Page 4 March 2020 Section 13 - Parameter Adjustment ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ 37 Parameter Adjustment ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������...
  • Page 5 March 2020 Section 17 - Platform ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ 107 Platform Installaton ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������ ������...

  • Page 6: Chapter 1 - Service

    All parts represented here are manufactured and supplied in accordance with MEC quality standards. We recommend that you use genuine MEC parts to ensure proper operation and reliable performance. To obtain maximum benefits from your MEC Aerial Work Platforms, always follow the proper operating and maintenance procedures.

  • Page 7: Section 1 - Mec Operator Policy

    Any procedures not found within this manual must be evaluated by the individual to assure oneself that they are “proper and safe.” Your MEC Aerial Work Platform has been designed, built, and tested to provide many years of safe, dependable service. Only trained, authorized personnel should be allowed to operate or service the machine.

  • Page 8: Section 2 - Safety Symbols & General Safety Tips

    Safety Symbols & General Safety Tips Safety Symbols & General Safety Tips MEC manuals and decals use symbols, colors and signal words to help you recognize important safety, operation and maintenance information. RED and the word DANGER – Indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury������...

  • Page 9: Section 3 - Specifications

    Secton 3 - Specfcatons March 2020 Specifications - 1930SE, 2632SE, 3346SE Specifications - 1930SE, 2632SE, 3346SE 1930SE 2632SE 3346SE Working Height* 25 ft 7.8 m 32 ft 10 m 39 ft 12 m Platform Height 19 ft 5.8 m 26 ft 33 ft 10 m Maximum Drive Height...

  • Page 10: SpecFCatOns - 4046Se, 4555Se

    Secton 3 - Specfcatons March 2020 Specifications - 4046SE, 4555SE 4046SE 4555SE Working Height* 46 ft 14 m 51 ft 15.7 m Platform Height 40 ft 12 m 45 ft 13.7 m Maximum Drive Height 40 ft 12 m 45 ft 13.7 m Top Guardrail 102 in...

  • Page 11: Section 4 - Torque Specifications

    Secton 4 - Torque Specfcatons March 2020 Bolt Torque Specification - American Standard Bolt Torque Specification - American Standard Fasteners Use the following values to apply torque unless a specific torque value is called out for the part being used. American Standard Cap Screws SAE Grade Cap Screw...

  • Page 12: Bolt Torque SpecFCatOn - MetrC Standard

    Secton 4 - Torque Specfcatons March 2020 Bolt Torque Specification - Metric Standard Fasteners Use the following values to apply torque unless a specific torque value is called out for the part being used Metric Cap Screws Metric Grade 8������ 8 10������...

  • Page 13: HydraulC Components Torque Table

    Secton 4 - Torque Specfcatons March 2020 Hydraulic Components Torque Table Note:Always lubricate threads with clean hydraulic fluid prior to installation. Use the following values to torque hydraulic components when a specific value is not available. Always check for torque values in the following places before relying on the Hydraulic Components Torque Table.

  • Page 14: Section 5 - Maintenance Locks

    Secton 5 - Mantenance Locks March 2020 Maintenance Locks - 1930SE, 2632SE, 3346SE Maintenance Locks - 1930SE, 2632SE, 3346SE DEATH OR SERIOUS INJURY HAZARD! NEVER perform work or inspection on the machine with the platform elevated without first blocking the scissor assembly with the Maintenance Lock������...
  • Page 15 Secton 5 - Mantenance Locks March 2020 Maintenance Locks - 4046SE, 4555SE DEATH OR SERIOUS INJURY HAZARD! NEVER PERFORM WORK OR INSPECTION ON THE MACHINE WITH THE PLATFORM ELEVATED WITHOUT FIRST BLOCKING THE SCISSOR ASSEMBLY WITH THE MAINTENANCE LOCK������ DO NOT ENGAGE THE MAINTENANCE LOCKS UNLESS THE PLATFORM IS EMPTY OF TOOLS AND MATERIAL������...
  • Page 16 Secton 5 - Mantenance Locks March 2020 Stowing The Maintenance Locks BOTH Maintenance Locks must be stowed before lowering the platform DO NOT attempt to lower the platform with one maintenance lock in place������ Raise the platform approximately 1 ft / .3 m up so that the Maintenance Locks clear the scissor link cross tubes.

  • Page 17: Section 6 - Hydraulic System, Electrical System And Total System

    Secton 6 - Hydraulc System, Electrcal System And Total System March 2020 Hydraulic System, Electrical System And Total System Hydraulic System, Electrical System And Total System Hydraulic System HYDRAULIC FLUID UNDER PRESSURE CAN PENETRATE AND BURN SKIN, DAMAGE EYES, AND MAY CAUSE SERIOUS INJURY, BLINDNESS, AND EVEN DEATH������...

  • Page 18: Section 7 - Primary Machine Components

    Secton 7 - Prmary Machne Components March 2020 Primary Machine Components Primary Machine Components Platform Manuals Typical Machine Controls Case Lanyard Guard Anchorage Rails Deck Extension Release Main Platform Deck Entry Gate Extension Lanyard Anchorage Controls Tray Maintenance Lift Cylinders Lock Maintenance Hydraulic Tank...

  • Page 19: Emergency Systems And Procedures

    Secton 8 - Emergency Systems And Procedures March 2020 Emergency Systems And Procedures Emergency Systems And Procedures IF THE CONTROL SYSTEM FAILS WHILE THE PLATFORM IS ELEVATED, USE THE EMERGENCY LOWERING PROCEDURE TO SAFELY LOWER THE PLATFORM������ DO NOT CLIMB DOWN THE ELEVATING ASSEMBLY OR EXIT THE PLATFORM������...

  • Page 20: Free-Wheel ConfGuratOn For WNchNg Or TowNg

    Secton 9 - Transport And Lftng Instructons March 2020 Free-Wheel Configuration For Winching Or Towing Free-Wheel Configuration For Winching Or Towing RUNAWAY HAZARD! AFTER RELEASING THE BRAKES THERE IS NOTHING TO STOP MACHINE TRAVEL������ MACHINE WILL ROLL FREELY ON SLOPES������ ALWAYS CHOCK THE WHEELS BEFORE MANUALLY RELEASING THE BRAKES������...

  • Page 21: DrVNg Or WNchNg Onto Or Off Of A Transport VehCle

    Secton 9 - Transport And Lftng Instructons March 2020 Driving or Winching onto or off of a Transport Vehicle Always attach the machine to a winch when loading or unloading from a truck or trailer by driving������ Read and understand all safety, control, and operating information found on the machine and in this manual before operating the machine������...
  • Page 22 Secton 9 - Transport And Lftng Instructons March 2020 Securing to Truck or Trailer for Transport • Turn the Key Switch to OFF and remove the key before transport. • Inspect the entire machine for loose or unsecured items. • Chock the wheels •...

  • Page 23: LFt And Support The MachNe

    Secton 9 - Transport And Lftng Instructons March 2020 Lift And Support The Machine DEATH OR SERIOUS PERSONAL INJURY MAY RESULT FROM THE USE OF SUBSTANDARD LIFTING DEVICES AND/OR JACK STANDS������ ENSURE THAT ALL LIFTING DEVICES AND JACK STANDS ARE OF ADEQUATE CAPACITY AND IN GOOD WORKING CONDITION BEFORE USE������...

  • Page 24: MachNe MaNtenance - General

    Secton 10 - Mantenance March 2020 Machine Maintenance – General Machine Maintenance – General Instructions in this portion of the manual are to be used in conjunction with the Pre-Start, Frequent and Annual Inspection checklists found in this machine’s Operator’s Manual. IMPORTANT: Scheduled maintenance inspection checklists are included in the Operator’s Manual for use only by qualified service technicians.

  • Page 25: Pre-Start InspectOn ChecklSt

    Secton 10 - Mantenance March 2020 Pre-Start Inspection Checklist Items on this checklist should be inspected before each work shift. A copy of this checklist is available in the notes section of this manual. Photocopy the Pre-Start Inspection Checklist to keep record of this inspection.

  • Page 26: Frequent InspectOn ChecklSt

    Secton 10 - Mantenance March 2020 Frequent Inspection Checklist THIS CHECKLIST MUST BE USED AT 3-MONTH INTERVALS OR EVERY 150 HOURS OF MACHINE USE, WHICHEVER OCCURS FIRST������ FAILURE TO DO SO COULD RESULT IN DEATH OR SERIOUS INJURY������ Frequent Maintenance Inspections should be conducted by qualified service technicians only. Photocopy the Frequent Inspection Checklist page from the Operator’s Manual to keep record of this inspection.
  • Page 27 NOTE: For best results, use an extension cord of adequate size with a length no longer than 50 ft / 15m. If you have any further questions regarding the battery charger operation, please contact the MEC Technical Support. Electrical Wiring Maintaining electrical wiring in good condition is essential to safe operation and good machine performance.
  • Page 28 Secton 10 - Mantenance March 2020 Inspect the following areas for burnt, chafed, corroded and loose wires: • Ground control panel • Control Module • Battery Module • Platform controls • Scissor control cable Turn the key switch to ground control and turn the red Emergency Stop button clockwise to the on position at both the ground and platform controls Set the Maintenance Locks (see the Introduction portion of this manual).
  • Page 29 Secton 10 - Mantenance March 2020 Turn the key switch to ground control and turn the red Emergency Stop button clockwise to the on position at both the ground and platform controls. Push in the red Emergency Stop button at the ground controls to the off position. •...
  • Page 30 Secton 10 - Mantenance March 2020 platform extension deck fully retracted and the platform in the stowed position. Mark a test line on the ground for reference. Turn the key switch to platform control and turn the red Emergency Stop button clockwise to the on position at both the ground and platform controls.
  • Page 31 Secton 10 - Mantenance March 2020 Turn the key switch to platform control and turn the red Emergency Stop button clockwise to the on position at both the ground and platform controls. Press the lift function select button. Press and hold the function enable switch on the joystick. Raise the platform approximately 10 ft /3 m from the ground.
  • Page 32 Secton 10 - Mantenance March 2020 Lubricate each module tray rotary latch. Using light oil, apply a few drops to each of the springs and to the sides of the rotary latch mechanism. Limit Switches Down Limit Switch Maintaining the limit switches is essential to safe operation Up Limit Switch and good machine performance.
  • Page 33 Secton 10 - Mantenance March 2020 functions should not operate. The machine is functioning properly. • Result: The diagnostic display does not show code 18, the alarm does not sound, and the steer and drive functions operate. Replace the Down Limit Switch. Press the lift function select button.
  • Page 34 Secton 10 - Mantenance March 2020 • Result: The platform continues to raise. Inspect or replace the Up Limit Switch. Install the limit switch house cover to chassis. Raise the platform and return the Maintenance Locks to the stowed position. Lower the platform to the stowed position.

  • Page 35: Annual InspectOn ChecklSt

    Secton 10 - Mantenance March 2020 Annual Inspection Checklist THE CHECKLIST MUST BE USED AT 12-MONTH INTERVALS OR EVERY 600 HOURS OF MACHINE USE, WHICHEVER OCCURS FIRST������ FAILURE TO DO SO COULD RESULT IN DEATH OR SERIOUS INJURY������ Annual Maintenance Inspections should be conducted by qualified service technicians only. Photocopy the Annual Inspection Checklist page from the Operator’s Manual to keep record of this inspection.
  • Page 36 Secton 10 - Mantenance March 2020 clogged or, over time, can deteriorate. If the breather cap is faulty or improperly installed, impurities can enter the hydraulic system which may cause component damage. Extremely dirty conditions may require that the cap be inspected more often. Remove and discard the hydraulic tank breather cap.
  • Page 37 Secton 10 - Mantenance March 2020 1930 2632 3346 4046 4555 FULL -- 16L FULL ADD -- 13L Controls Controls Tray Breather Cap Tray Hydraulic Hydraulic Filter Filter Hydraulic Hydraulic Reservoir Reservoir Hydraulic Hydraulic Pump & Motor Pump & Motor ART_5181 No������...

  • Page 38: Section 11 - Control Component Locations

    Secton 11 - Control Component Locatons March 2020 Control Component Locations Control Component Locations Platform Controls/ Controls Tray Hour Meter Functions Lift Cylinders Manifold Hydraulic Tank Hydraulic Pump Motor Controller/ & Motor ECU2 Main Power Switch Battery Charger Battery Tray Lower Controls Batteries...

  • Page 39: Section 12 - Fault Codes

    Secton 12 - Fault Codes March 2020 Fault Codes Fault Codes Fault Codes, when present, appear on the LED Indicator at the Upper Upper Controls Controls station. ART_5126 LED Indicator Fault Description Models Solutions 01/10 System Initialization Fault All Models Check the ECU.
  • Page 40 Secton 12 - Fault Codes March 2020 Right Turn Coil Fault All Models Check the right steering solenoid and wiring. Left Turn Coil Fault All Models Check the left steering solenoid and wiring. General Brake Coil Fault Check the brake module and wiring, brakes and All Models - Brakes about 46 ohms wiring, and the battery voltage.
  • Page 41 Secton 12 - Fault Codes March 2020 Check the right drive motor and wiring, and motor Right Drive Motor Short 1930SE/Micro controller and wiring. Right Brake Coil - Brakes Check battery voltage, contactor, wiring to brakes, 1930SE/Micro about 46 ohms wiring to drive motors, motor controller and wiring.

  • Page 42: Parameter Adjustment

    PARAMETERS SHOULD BE ADJUSTED ONLY IF THE FUNCTION IS OPERATING OUTSIDE OF MACHINE SPECIFICATIONS, OR IF WRITTEN APPROVAL IS OBTAINED FROM MEC PRIOR TO MAKING THE CHANGE������ The following adjustments are made at the Platform Controls station using the LED Indicator to display the current settings. Follow the instructions to reach the desired setting.
  • Page 43 Secton 13 - Parameter Adjustment March 2020 Saving New Values New values must be saved immediately after adjustment. To save new values, press and hold the Horn button for 3 seconds. To operate the machine with new values, press the Emergency Stop ART_5135 button, then rotate it to return to the ON position.
  • Page 44 Secton 13 - Parameter Adjustment March 2020 Elevated Drive Speed This parameter controls drive speed when the platform is elevated. Press the Drive Mode Select button. The button will light up, indicating this mode is active. Press and hold the Low Speed Mode Select button (turtle icon). The button will light up, indicating this mode is active.

  • Page 45: Section 14 - Schematics

    Secton 14 - Schematcs March 2020 Hydraulic Schematic - 1930SE Hydraulic Schematic - 1930SE Platform Overload Sensor Lift Cylinder Steer Cylinder ORF1 ORF2 FRRV1 1930 HYDRAULIC SCHEMATIC ART_5140 Page 40 SE Seres - Servce & Parts Manual...

  • Page 46: HydraulC Components - 1930Se

    Secton 14 - Schematcs March 2020 Hydraulic Components - 1930SE Functions Manifold Lift Valve Lift Relief Steer Relief Steer Valve Controls Tray Functions Manifold Breather Cap Hydraulic Filter Hydraulic Reservoir Hydraulic Pump & Motor 1930 HYDRAULIC COMPONENTS ART_5136 Page 41 SE Seres - Servce &...

  • Page 47: HydraulC SchematC - 2632Se, 3346Se, 4046Se, 4555Se

    Secton 14 - Schematcs March 2020 Hydraulic Schematic - 2632SE, 3346SE, 4046SE, 4555SE Platform Overload Sensor Upper Lift Cylinder Lower Lift Cylinder Steer Cylinder ORF2 ORF1 FRRV1 2632 3346 4046 4555 HYDRAULIC SCHEMATIC ART_5140 Page 42 SE Seres - Servce & Parts Manual...

  • Page 48: HydraulC Components - 2632Se, 3346Se, 4046Se, 4555Se

    Secton 14 - Schematcs March 2020 Hydraulic Components - 2632SE, 3346SE, 4046SE, 4555SE Functions Manifold Lift Valve Lift Relief Steer Relief Steer Valve Breather Hydraulic Reservoir Functions Manifold Filter Pump Motor 2632 3346 4046 4555 HYDRAULIC COMPONENTS ART_5136 Page 43 SE Seres - Servce &...

  • Page 49: FunctOn Valves

    Secton 14 - Schematcs March 2020 Function Valves Lift Valve Lift Overflow Valve Soleniod Steer Valve Steer Pressure-Gradient Soleniod Control Valve FRRV1 Test Presure Pipe Port Out Port Lift Right Turn Left Turn ILLUSTRATION No. 1930SE, 2632SE, 3346SE, 4046SE, 455SE Function Valves Art_5579 Page 44...

  • Page 50: ElectrCal SchematC - 1930Se

    Secton 14 - Schematcs March 2020 Electrical Schematic - 1930SE Page 45 SE Seres - Servce & Parts Manual...

  • Page 51: Harness Control CRcuT - 1930Se

    Secton 14 - Schematcs March 2020 Harness Control Circuit - 1930SE Page 46 SE Seres - Servce & Parts Manual...

  • Page 52: ElectrCal SchematC - 2632Se, 3346Se, 4046Se, 4555Se

    Secton 14 - Schematcs March 2020 Electrical Schematic - 2632SE, 3346SE, 4046SE, 4555SE Page 47 SE Seres - Servce & Parts Manual...
  • Page 53 Secton 14 - Schematcs March 2020 Harness Control Circuit - 2632SE, 3346SE, 4046SE, 4555SE Page 48 SE Seres - Servce & Parts Manual...
  • Page 54 Secton 14 - Schematcs March 2020 Wiring Diagram Battery Charger Input: 100-240VAC Output: 24VDC 25A 750W Power Switch Batteries Drive Motor 300A Fuse Drive Motor DC Contactor Motor Controller Pump Motor 1930SE, 2632SE, 3346SE, 4046SE, 4555SE WIRING DIAGRAM ART_5143 Page 49 SE Seres - Servce &...

  • Page 55: Chapter 2 - Parts

    This Parts sections consists of illustrated parts sections and is designed to provide you, the customer, with illustrations and the list of associated parts needed to properly maintain the MEC self-propelled aerial work platform. When used in conjunction with the Service section in this manual and the Operator’s Manual (provided separately), this manual will assist you in making necessary adjustments...

  • Page 56: Section 15 - Chassis

    Secton 15 - Chasss March 2020 Chassis Assembly - 1930SE Chassis Assembly - 1930SE Chassis Assembly -- 1930SE SE Series ART_5185 Page 51 SE Seres - Servce & Parts Manual...
  • Page 57 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41771 Battery Module 41772 Chassis Weldment 41310 Beacon 41309 Cover 53038 Washer, M5 53042 Screw, M5 x 16 53043 Washer, M5 Spring 41370 Trim Lock 41773 Limit Switch Assembly 41435 Pipe Bracket Assembly 41774...

  • Page 58: ChassS Assembly - 2632Se

    Secton 15 - Chasss March 2020 Chassis Assembly - 2632SE Chassis Assembly -- 2632SE SE Series ART_5186 Page 53 SE Seres - Servce & Parts Manual...
  • Page 59 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41783 Battery Module Assembly 41784 Chassis Weldment 41310 Beacon 41309 Cover 53038 Washer 5 53043 Spring washer 5 53042 Screw M5×16-H 41370 Trim Lock 41371 Limit Switch Assembly 41450 Pipe Bracket Assembly 41438 Steering Wheel Assembly...

  • Page 60: ChassS Assembly - 3346Se, 4046Se

    Secton 15 - Chasss March 2020 Chassis Assembly - 3346SE, 4046SE Chassis Assembly -- 3346SE, 4046SE SE Series ART_5188 Page 55 SE Seres - Servce & Parts Manual...
  • Page 61 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41785 3346SE -- Battery Module Assembly 41786 4046SE -- Battery Module Assembly 41787 Chassis Weldment 41310 Beacon 41309 Cover 53038 Washer 5 53043 Spring washer 5 53042 Screw M5×16-H 41370 Trim Lock 41371...

  • Page 62: ChassS Assembly - 4555Se

    Secton 15 - Chasss March 2020 Chassis Assembly - 4555SE Chassis Assembly -- 4555SE SE Series ART_5098 Page 57 SE Seres - Servce & Parts Manual...
  • Page 63 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41788 Battery Module Assembly 41789 Chassis Weldment 41310 Beacon 41309 Cover 53038 Washer 5 53043 Spring washer 5 53042 Screw M5×16-H 41370 Trim Lock 41371 Limit Switch Assembly 41435 Pipe Bracket Assembly 41454 Steering Wheel Assembly...

  • Page 64: SteerNg Wheel Assembly - 1930Se

    Secton 15 - Chasss March 2020 Steering Wheel Assembly - 1930SE Steering Components -- 1930SE SE Series ART_5189 Page 59 SE Seres - Servce & Parts Manual...
  • Page 65 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41774 Steering Wheel Assembly, 1930SE 41593 Steering cylinder 41594 Seal kit 41225 Bearing 41321 41322 Cotter Pin 41226 Thrust Washer 41210 Bearing 41596 Cover 41595 Bearing 41603 Strain Relief 41792 Seal 41793...

  • Page 66: SteerNg Wheel Assembly - 2632Se, 3346Se, 4046Se, 4555Se

    Secton 15 - Chasss March 2020 Steering Wheel Assembly - 2632SE, 3346SE, 4046SE, 4555SE Steering Components -- 2632SE, 3346SE, 4046SE, 4555SE SE Series ART_5099 Page 61 SE Seres - Servce & Parts Manual...
  • Page 67 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41391 2632SE -- Steer linkage 41393 3346SE, 4046SE -- Steer linkage 41394 4555SE -- Steer linkage 50214 Bolt M6×30 41342 Pin 6×45 50000 Washer 6 50047 Nut M6 41386 Axle 41387 Steering cylinder...

  • Page 68: Rear Wheel Assembly - 1930Se

    Secton 15 - Chasss March 2020 Rear Wheel Assembly - 1930SE Rear Wheels -- 1930SE SE Series ART_5190 Page 63 SE Seres - Servce & Parts Manual...
  • Page 69 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41782 Rear Wheel Assembly, 1930 SE 50032 Bolt, M8 x 30 53055 Washer, M8 Spring 50001 Washer, M8 41591 Wheel 50457 Screw M8×20 41237 41024 Bearing 41803 Plate 50032 Bolt, M8 x 30 41804 Spindle...

  • Page 70: Rear Wheel Assembly - 2632Se, 3346Se, 4046Se, 4555Se

    Secton 15 - Chasss March 2020 Rear Wheel Assembly - 2632SE, 3346SE, 4046SE, 4555SE Rear Wheels -- 2632SE, 3346SE, 4046SE, 4555SE SE Series ART_5100 Page 65 SE Seres - Servce & Parts Manual...
  • Page 71 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41441 Rear Wheel Assembly 41021 Cushion 41022 Axle Seat 41023 Seal FB70 50 8 41324 Bearing 30206 41322 Cotter Pin 5×40 41025 Bearing seat 41328 End cover 41027 Wheel 53053 Washer, M12 Spring 53052...

  • Page 72: Pothole ProtectOn Assembly - 1930Se

    Secton 15 - Chasss March 2020 Pothole Protection Assembly - 1930SE Pothole Protection Assembly -- 1930SE SE Series ART_5191 Page 67 SE Seres - Servce & Parts Manual...
  • Page 73 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41778 Pothole Protection Assembly 41806 Pothole Guard 50010 Bolt, SHCS M8 x 25 53055 Washer, M8 Spring 41036 Switch 50001 Washer, M8 50050 Nut, M12 41807 Hasp 41604 Axle Bolt 41051 Bearing 41210...

  • Page 74: Pothole ProtectOn Assembly - 2632Se, 3346Se, 4046Se, 4555Se

    Secton 15 - Chasss March 2020 Pothole Protection Assembly - 2632SE, 3346SE, 4046SE, 4555SE Pothole Protection Assembly -- 2632SE, 3346SE, 4046SE, 4555SE SE Series ART_5101 Page 69 SE Seres - Servce & Parts Manual...
  • Page 75 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41030 2632SE, 3346SE, 4046SE -- Linkage Weldment 41400 4555SE -- Linkage Weldment 41031 Lock Hasp 41401 2632SE, 3346SE, 4046SE -- Pothole Guard 41032 4555SE -- Pothole Guard 50005 Washer 20 53049 Washer 14 50052...

  • Page 76: Battery Module Assembly - 1930Se

    Secton 15 - Chasss March 2020 Battery Module Assembly - 1930SE Battery Module -- 1930SE SE Series ART_5192 Page 71 SE Seres - Servce & Parts Manual...
  • Page 77 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41771 Battery Module Assembly, 1930SE 41811 Battery, Trojan T605 41812 Brace 50001 Washer, M8 50048 Nut, M8 41813 41037 Bearing 41814 Spacer Washer 50005 Washer, M20 41355 Snap Ring 41815 Battery Tray 53044...

  • Page 78: Battery Module Assembly - 2632Se, 3346Se, 4046Se, 4555Se

    Secton 15 - Chasss March 2020 Battery Module Assembly - 2632SE, 3346SE, 4046SE, 4555SE Battery Module -- 2632SE, 3346SE, 4046SE, 4555SE SE Series ART_5193 Page 73 SE Seres - Servce & Parts Manual...
  • Page 79 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 53058 Screw M6×12-H 50000 Washer M6 53046 Washer, M6 Spring 41069 Battery Charger 50049 Nut, M10 50002 Washer, M10 50001 Washer 8 53055 Washer, M8 Spring 50048 Nut M8 41060 Hinge Pin 41046...

  • Page 80: Control Module Assembly - 1930Se

    Secton 15 - Chasss March 2020 Control Module Assembly - 1930SE Control Module -- 1930SE SE Series ART_5194 Page 75 SE Seres - Servce & Parts Manual...
  • Page 81 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41037 Bearing 41813 41077 Oil Filter 41078 Filter Element 53046 Washer, M6 Spring 50025 Bolt, M6 x 20 41817 Filter Bracket 50047 Nut, M6 50000 Washer, M6 53014 Nut, M8 50001 Washer, M8 41818...

  • Page 82: Control Module Assembly - 2632Se, 3346Se, 4046Se, 4555Se

    Secton 15 - Chasss March 2020 Control Module Assembly - 2632SE, 3346SE, 4046SE, 4555SE Control Module -- 2632SE, 3346SE, 4046SE, 4555SE SE Series ART_5195 Page 77 SE Seres - Servce & Parts Manual...
  • Page 83 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41061 Snap Ring 41019 Bearing 41046 Bearing 41060 Hinge Pin 50025 Bolt M6×20 53046 Washer M6, Spring 50000 Washer M6 41070 Hour Meter 41071 Hydraulic Tank Assembly 53014 Nut M8 50001 Washer 8 53051...

  • Page 84: HydraulC Tank Assembly - 1930Se

    Secton 15 - Chasss March 2020 Hydraulic Tank Assembly - 1930SE Hydraulic Tank -- 1930SE SE Series ART_5196 Page 79 SE Seres - Servce & Parts Manual...
  • Page 85 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41818 Hydraulic Tank Assembly 41412 Washer 22 41085 Fitting M22×1.5 41413 41167 Seat 41166 Bolt 53049 Washer, M14 41082 Breather Nut 41823 Hydraulic Tank 41412 Washer 18 41087 Drain Plug 41824 Filter 41825...

  • Page 86: HydraulC Tank Assembly - 2632Se, 3346Se, 4046Se, 4555Se

    Secton 15 - Chasss March 2020 Hydraulic Tank Assembly - 2632SE, 3346SE, 4046SE, 4555SE Hydraulic Tank -- 2632SE, 3346SE, 4046SE, 4555SE SE Series ART_5274 Page 81 SE Seres - Servce & Parts Manual...
  • Page 87 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41071 Hydraulic Tank Assembly 41082 Breather Nut 41083 Cover 41028 Nut M22×1.5 41085 Fitting M22×1.5 41086 Filter 41087 Drain Plug 41412 Washer 18 41088 Tank 41428 Washer 27 41089 41412 Washer 22 41413...

  • Page 88: Motor Controller Assembly - 1930Se

    Secton 15 - Chasss March 2020 Motor Controller Assembly - 1930SE Motor Controller -- 1930SE SE Series ART_5197 Page 83 SE Seres - Servce & Parts Manual...
  • Page 89 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41821 Motor Controller Assembly, 1930SE 53014 Nut M8 53055 Washer, M8 Spring 50001 Washer M8 41827 Fuse, 250A 53061 Screw M4×16-H 41092 Fuse Holder 41828 Plate 41095 DC Contactor 50284 Washer 4 53062...

  • Page 90: Motor Controller Assembly - 2632Se, 3346Se, 4046Se, 4555Se

    Secton 15 - Chasss March 2020 Motor Controller Assembly - 2632SE, 3346SE, 4046SE, 4555SE Motor Controller -- 2632SE, 3346SE, 4046SE, 4555SE SE Series ART_5198 Page 85 SE Seres - Servce & Parts Manual...
  • Page 91 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41429 Motor Controller Assembly 53055 Spring washer 8 53014 Nut M8 50001 Washer 8 41091 Fuse 300A 53061 Screw M4×16-H 41092 Fuse Holder 41427 Mounting Plate 41093 Motor Controller 50000 Washer 6 53046...

  • Page 92: LMT SwTch Assembly

    Secton 15 - Chasss March 2020 Limit Switch Assembly Limit Switch Assembly SE Series ART_5106 Page 87 SE Seres - Servce & Parts Manual...
  • Page 93 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41829 1930SE -- Cover 41096 2632SE, 3346SE, 4046SE, 4555SE -- Cover 53043 Washer, M5 Spring 53042 Screw, M5 x 16 53038 Washer, M5 50423 Screw, M4 x 12 50284 Washer, M4 41611 1930SE -- Signal Plate...
  • Page 94 Secton 15 - Chasss March 2020 Pipe Bracket Assembly Pipe Bracket Assembly SE Series ART_5107 Page 89 SE Seres - Servce & Parts Manual...
  • Page 95 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41435 Pipe Bracket Assembly 80251 Bolt, M8 x 65 41415 Base plate 41416 Oil pipe clamp 212.7 41417 Oil pipe clamp 215 50418 Bolt, M8 x 25 53055 Washer, M8 Spring 50001 Washer, M8 41425...

  • Page 96: Ground Controls Assembly - 1930Se

    Secton 15 - Chasss March 2020 Ground Controls Assembly - 1930SE Ground Control Assembly -- 1930SE SE Series ART_5199 Page 91 SE Seres - Servce & Parts Manual...
  • Page 97 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41418 Key Switch 91574 Key, Spare, 455 41419 Toggle Switch 41420 7 Amp Breaker 41614 Brake Reset Switch 41421 Indicator 41422 Emergency Stop 41423 Panel 41424 Decal Page 92 SE Seres - Servce &...

  • Page 98: Ground Controls Assembly - 2632Se, 3346Se, 4046Se, 4555Se

    Secton 15 - Chasss March 2020 Ground Controls Assembly - 2632SE, 3346SE, 4046SE, 4555SE Ground Control Assembly -- 2632SE, 3346SE, 4046SE, 4555SE SE Series ART_5200 Page 93 SE Seres - Servce & Parts Manual...
  • Page 99 Secton 15 - Chasss March 2020 Item Part Number Description Qty������ 41418 Key Switch 91574 Key, Spare, 455 41419 Toggle Switch 41420 7 Amp Breaker 41421 Indicator 41422 Emergency Stop 41423 Panel 41424 Decal Page 94 SE Seres - Servce & Parts Manual...

  • Page 100: Section 16 - Scissor

    Secton 16 - Scssor March 2020 Scissor Installation Scissor Installation Scissor Installation SE Series ART_5275 Page 95 SE Seres - Servce & Parts Manual...
  • Page 101 Secton 16 - Scssor March 2020 Item Part Number Description Qty������ 41708 1930SE -- Scissor Assembly 41468 2632SE -- Scissor Assembly 41470 3346SE -- Scissor Assembly 41473 4046SE -- Scissor Assembly 41474 4555SE -- Scissor Assembly 41103 Bearing 41432 Fixed Axle 41709 1930SE -- Axle 10×70 41431...
  • Page 102 Secton 16 - Scssor March 2020 Scissor Assembly - 1930SE Scissor Assembly -- 1930SE SE Series ART_5258 Page 97 SE Seres - Servce & Parts Manual...
  • Page 103 Secton 16 - Scssor March 2020 Item Part Number Description Qty������ 41685 Top Slide Pin 41706 Bearing 41633 Inner Arm 4 41698 Outer Arm 4 41695 Inner Arm 2 50022 Bolt, M10 x 70 41687 Cylinder Pin 41697 Inner Arm 3 41690 Cable Plate 50002...
  • Page 104 Secton 16 - Scssor March 2020 Scissor Assembly - 2632SE Scissor Assembly -- 2632SE SE Series ART_5259 Page 99 SE Seres - Servce & Parts Manual...
  • Page 105 Secton 16 - Scssor March 2020 Item Part Number Description Qty������ 41102 41103 Bearing 41492 Inner Arm 4 41478 Outer Arm 4 41105 Bearing 50024 Bolt, M10 x 80 50049 Nut, M10 Nylock 41479 41480 Thrust Washer 41481 Snap Ring 50002 Washer, M10 41495...

  • Page 106: ScSsor Assembly - 3346Se

    Secton 16 - Scssor March 2020 Scissor Assembly - 3346SE Scissor Assembly -- 3346SE SE Series3346 ART_5260 Page 101 SE Seres - Servce & Parts Manual...
  • Page 107 Secton 16 - Scssor March 2020 Item Part Number Description Qty������ 41102 41103 Bearing 41705 Inner Arm 5 50332 Bolt, M10 x 35 41431 41104 Cylinder Pin 41704 Outer Arm 5 50002 Washer, M10 50049 Nut, M10 Nylock 41105 Bearing 41489 Outer Arm 2 50024...

  • Page 108: ScSsor Assembly - 4046Se, 4555Se

    Secton 16 - Scssor March 2020 Scissor Assembly - 4046SE, 4555SE Scissor Assembly -- 4046SE, 4555SE SE Series ART_5261 Page 103 SE Seres - Servce & Parts Manual...
  • Page 109 Secton 16 - Scssor March 2020 Item Part Number Description Qty������ 41102 41103 Bearing 50035 Bolt, M10 x 40 41431 41104 Cylinder Pin 41493 4046SE -- Inner Arm 41506 4555SE -- Inner Arm 41494 4046SE -- Outer Arm 41507 4555SE -- Outer Arm 41499 4046SE -- Outer Arm 41508...
  • Page 110 Secton 16 - Scssor March 2020 41487 Spacer 41497 4046SE -- Outer Arm 41515 4555SE -- Outer Arm 41112 Manifold 50386 Screw, M6 x 25 41486 41113 Pothole Pusher 50035 Bolt, M10 x 40 41498 41104 4555SE Only -- Pin (From Serial #16800751) 50036 Bolt, M10 x 50 4046SE - Lower Lift Cylinder - See Section 20...
  • Page 111 March 2020 Notes Page 106 SE Seres - Servce & Parts Manual...

  • Page 112: Section 17 - Platform

    Secton 17 - Platform March 2020 Platform Installation Platform Installation Platform Installation SE Series ART_5269 Page 107 SE Seres - Servce & Parts Manual...
  • Page 113 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 50243 Bolt M10×100 41750 1930SE -- Platform Assembly 41751 2632SE -- Platform Assembly 41752 3346SE -- Platform Assembly 41753 4046SE -- Platform Assembly 41754 4555SE -- Platform Assembly 50002 Washer 10 50049 Nut M10...

  • Page 114: MaN Platform Assembly - 1930Se, ~SerAl #164000294

    Secton 17 - Platform March 2020 Main Platform Assembly - 1930SE, ~Serial #164000294 Main Platform Assembly -- 1930SE, Folding Rails SE Series ART_5294 Page 109 SE Seres - Servce & Parts Manual...
  • Page 115 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 53056 Screw, M5 x 12 53038 Washer, M5 41120 Bumper 41618 Upper Guardrail, Left 41620 Lower Left Guardrail 41617 Upper Guardrail 41121 Rivet, 4.8 x 16 41621 Rear Rail 41357 Spring Pin 41758...

  • Page 116: Platform ExtensOn Assembly - 1930Se, ~SerAl #164000294

    Secton 17 - Platform March 2020 Platform Extension Assembly - 1930SE, ~Serial #164000294 Platform Extension -- 1930SE, Folding Rails SE Series ART_5295 Page 111 SE Seres - Servce & Parts Manual...
  • Page 117 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 53056 Screw M5×12 53038 Washer 5 41120 Bumper 41678 Upper Left Rail 41625 Lower Left Rail 41357 Spring Pin 41626 Lower Right Rail 41677 Upper Right Rail 41121 Rivet 41627 Front Rail 41137...

  • Page 118: MaN Platform Assembly - 1930Se, SerAl #164000295

    Secton 17 - Platform March 2020 Main Platform Assembly - 1930SE, Serial #164000295~ Main Platform Assembly -- 1930SE, Fixed Guardrails SE Series ART_5282 Page 113 SE Seres - Servce & Parts Manual...
  • Page 119 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 41756 Right Guardrail 41128 Lower Hinge 41127 Upper Hinge 50000 Washer, M6 53046 Washer, M6 Spring 50445 Bolt, M6 x 16 41757 Left Guardrail 41758 Gate 50021 Bolt, M10 x 55 41124 Door Latch 41125...

  • Page 120: Platform ExtensOn Assembly - 1930Se, SerAl #164000295

    Secton 17 - Platform March 2020 Platform Extension Assembly - 1930SE, Serial #164000295~ Platform Extension -- 1930SE, Fixed Guardrails SE Series ART_5283 Page 115 SE Seres - Servce & Parts Manual...
  • Page 121 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 53056 Screw M5×12 53038 Washer 5 41761 Left Rail 53000 Bolt, M10 x 75 50049 Nut, M10 53044 Screw, M5 x 10 53038 Washer 5 53043 Spring Washer 5 41137 Platform Control Assembly 41764...
  • Page 122 Secton 17 - Platform March 2020 Main Platform Assembly - 2632SE Main Platform Assembly -- 2632SE SE Series ART_5262 Page 117 SE Seres - Servce & Parts Manual...
  • Page 123 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 53056 Screw, M5 x 12 53038 Washer, M5 41120 Bumper 41520 Upper Guardrail 41765 Lower Left Guardrail 41522 Upper Guardrail 41121 Rivet, 4.8 x 16 41523 Rear Rail 41357 Spring Pin 41588 Entry Gate...

  • Page 124: Platform ExtensOn Assembly - 2632Se

    Secton 17 - Platform March 2020 Platform Extension Assembly - 2632SE Platform Extension -- 2632SE SE Series ART_5266 Page 119 SE Seres - Servce & Parts Manual...
  • Page 125 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 53056 Screw M5×12 53038 Washer 5 41120 Bumper 41528 Upper Left Rail 41529 Lower Left Rail 41357 Spring Pin 41532 Lower Right Rail 41530 Upper Right Rail 41121 Rivet 41531 Front Rail 41137...

  • Page 126: MaN Platform Assembly - 3346Se

    Secton 17 - Platform March 2020 Main Platform Assembly - 3346SE Main Platform Assembly -- 3346SE SE Series ART_5263 Page 121 SE Seres - Servce & Parts Manual...
  • Page 127 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 41534 Right Guardrail 53056 Screw, M5 x 12 53038 Washer 5 41120 Bumper 41121 Rivet, 4.8 x 16 41357 Spring Pin 41535 Left Guardrail 41123 Rear Guardrail 41589 Gate 50021 Bolt, M10 x 55 41124...

  • Page 128: MaN Platform Assembly - 4046Se, 4555Se

    Secton 17 - Platform March 2020 Main Platform Assembly - 4046SE, 4555SE Main Platform Assembly -- 4046SE, 4555SE SE Series ART_5264 Page 123 SE Seres - Servce & Parts Manual...
  • Page 129 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 41534 4046SE -- Right Guardrail 41119 4555SE -- Right Guardrail 53056 Screw M5×12-h 53038 Washer 5 41120 Bumper 41121 Rivet 41357 Spring Pin 41535 4046SE -- Left Guardrail 41122 4555SE -- Left Guardrail 41123 4046SE -- Rear Guardrail...

  • Page 130: Platform ExtensOn Assembly - 3346Se, 4046Se, 4555Se

    Secton 17 - Platform March 2020 Platform Extension Assembly - 3346SE, 4046SE, 4555SE Platform Extension -- 3346SE, 4046SE, 4555SE SE Series ART_5265 Page 125 SE Seres - Servce & Parts Manual...
  • Page 131 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 53056 Screw M5×12 53038 Washer 5 41120 Bumper 41135 Left Rail 41357 Spring Pin 50238 Nut, #10-32 Nylock 8909 Manual Enclosure 41121 Rivet 41136 Front Rail 50191 Screw, #10-32 x .5 41137 Platform Control Assembly 41764...

  • Page 132: Platform ExtensOn Lock Assembly

    Secton 17 - Platform March 2020 Platform Extension Lock Assembly Platform Extension Lock SE Series ART_5046 Page 127 SE Seres - Servce & Parts Manual...
  • Page 133 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 41140 Platform Extension Lock Assembly 50049 Nut M10 50002 Washer 10 41143 Foot Pedal 41144 Lock Pin Housing 41145 Spring 41146 Lock pin 41147 Bracket 50020 Bolt M10×50 Page 128 SE Seres - Servce &...
  • Page 134 Secton 17 - Platform March 2020 Platform Controls Platform Controls SE Series ART_5115 Page 129 SE Seres - Servce & Parts Manual...
  • Page 135 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 41137 Platform Controls Assembly 41148 Decal 41149 Joystick 41150 Dust Cover 41151 Boot 41152 Cord 41153 Alarm 41154 Enclosure 41155 Button 41156 Pc Board 41157 Emergency Stop Switch Page 130 SE Seres - Servce &...

  • Page 136: HNdley Platform Controls

    Secton 17 - Platform March 2020 Hindley Platform Controls ILLUSTRATION No. 1930SE, 2632SE, 3346SE, 4046SE, 4555SE Hindley Controller Art_5582 Page 131 SE Seres - Servce & Parts Manual...
  • Page 137 Secton 17 - Platform March 2020 Item Part Number Description Qty������ 43819 Enclosure 43820 Control Box Bottom 43821 Clear Switch Actuator 43822 Circuit Bd Push Button 43823 Joystick 43835 Decal, Upper Control Box 43824 Coil Cord Assembly (Includes Connector) 43825 Continuous Tone Alarm, 6-28V 53306 HHMS 1/4-20 ×...

  • Page 138: Lower LFt CylNder Assembly

    Secton 18 - Hydraulcs March 2020 Lower Lift Cylinder Assembly Lower Lift Cylinder Assembly Lower Lift Cylinder Assembly SE Series ART_5285 Page 133 SE Seres - Servce & Parts Manual...
  • Page 139 Secton 18 - Hydraulcs March 2020 Item Part Number Description Qty������ 41629 Lower Lift Cylinder (1930SE) 41488 Lower Lift Cylinder (2632SE, 3346SE, 4046SE) 41171 Lower Lift Cylinder (4555SE) 42480 Plug 43370 Orifice (2632SE, 3346SE, 4046SE) 43645 Orifice (4555SE) 42821 Plug 41165 Check Valve 43638...

  • Page 140: Upper LFt CylNder Assembly - 3346Se, 4046Se, 4555Se Only

    Secton 18 - Hydraulcs March 2020 Upper Lift Cylinder Assembly - 3346SE, 4046SE, 4555SE Only Upper Lift Cylinder Assembly SE Series ART_5284 Page 135 SE Seres - Servce & Parts Manual...
  • Page 141 Secton 18 - Hydraulcs March 2020 Item Part Number Description Qty������ 41103 Bearing 41169 Pressure Relief Valve 41289 Valve Manifold 42979 Lowering Valve 41364 Coil 41505 3346SE, 4046SE -- Upper Lift Cylinder 41171 4555SE -- Upper Lift Cylinder (Up To Serial #16800750) 42580 4555SE -- Upper Lift Cylinder (From Serial #16800751) 41164...

  • Page 142: Hoses & FTtNgs - 1930Se

    Secton 18 - Hydraulcs March 2020 Hoses & Fittings - 1930SE Steer Cylinder Function Manifold Hose Assembly Adapter Union Hoses & Fittings -- 1930SE SE Series ART_5268 Page 137 SE Seres - Servce & Parts Manual...
  • Page 143 Secton 18 - Hydraulcs March 2020 Item Part Number Description Qty������ 41838 Hose Assembly 41839 Hose Assembly 41840 Hose Assembly 41841 Hose Assembly 41842 Hose Assembly 41843 Hose Assembly 41844 Fitting, Straight 41845 Fitting, Straight 41846 Fitting, Straight 41299 Fitting, Straight 41847 Fitting, Straight 41188...

  • Page 144: Hoses & FTtNgs - 2632Se

    Secton 18 - Hydraulcs March 2020 Hoses & Fittings - 2632SE Steer Cylinder Function Manifold Hose Assembly Adapter Union Hoses & Fittings -- 2632SE SE Series ART_5270 Page 139 SE Seres - Servce & Parts Manual...
  • Page 145 Secton 18 - Hydraulcs March 2020 Item Part Number Description Qty������ 41539 Hose Assembly 41541 Hose Assembly 41543 Hose Assembly 41544 Hose Assembly 41546 Hose Assembly 41179 Hose Assembly 41180 Hose Assembly 41844 Fitting, Straight 41845 Fitting, Straight 41846 Fitting, Straight 41299 Fitting, Straight 41847...

  • Page 146: Hoses & FTtNgs - 3346Se, 4046Se

    S te e r C ylinder F u n ctio n M anifold H o se A ssem bly A d a p ter U n ion Hoses & Fittings -- 3346SE, 4046SE SE Series ART_5271 Page 141 SE Seres - Servce & Parts Manual...
  • Page 147 Secton 18 - Hydraulcs March 2020 Item Part Number Description Qty������ 41540 Hose Assembly 51452 Hose Assembly 41545 Hose Assembly 41543 Hose Assembly 41546 Hose Assembly 41178 Hose Assembly 41779 Hose Assembly 41180 Hose Assembly 41844 Fitting, Straight 41845 Fitting, Straight 41846 Fitting, Straight 41184...

  • Page 148: Hoses & FTtNgs - 4555Se

    S te e r C ylinder F u n ctio n M anifold H o se A ssem bly A d a p ter U n ion Hoses & Fittings -- 4555SE SE Series ART_5276 Page 143 SE Seres - Servce & Parts Manual...
  • Page 149 Secton 18 - Hydraulcs March 2020 Item Part Number Description Qty������ 41174 Steer Hose Assembly 41175 Steer Hose Assembly 41176 Upper Lift Cylinder Hose Assembly 41177 Lift Cylinder Hose Assembly 41178 Manifold To Filter Hose Assembly 41178 Tank Return Hose Assembly 41179 Pressure Hose Assembly 41180...

  • Page 150: FunctOns ManFold

    Secton 18 - Hydraulcs March 2020 Functions Manifold Functions Manifold SE Series ART_5277 Page 145 SE Seres - Servce & Parts Manual...
  • Page 151 Secton 18 - Hydraulcs March 2020 Item Part Number Description Qty������ 41081 Functions Manifold Assembly, Complete w/o Fittings 41547 Valve Body 41548 Lift Valve Solenoid 41549 Lift Relief Valve 41550 Coil 41551 Coil 41537 Steer Valve Solenoid 41538 Steer Pressure-Gradient Control Valve Page 146 SE Seres - Servce &...

  • Page 152: ElectrCal Harness - 1930Se

    Secton 19 - Electrcal System March 2020 Electrical Harness - 1930SE Electrical Harness - 1930SE Platform Control Box Hour Alarm Horn Pressure Charger Meter sensor Angle Battery sensor Battery Level sensor Battery Travel switch Power Battery Down switch Travel switch Pothole Travel switch Fuse...
  • Page 153 Secton 19 - Electrcal System March 2020 Item Part Number Description Qty������ 41853 Harness, ECU 1930SE 41854 Harness, Drive Motor 1930SE 41855 Harness, Drive Controller 1930SE 41856 Harness, DC Contactor 1930SE 41857 Battery Harness 1930SE 41858 Battery Harness 1 1930SE 41859 Battery Harness 2 1930SE 41860...

  • Page 154: ElectrCal Harness - 2632Se , 3346Se

    Secton 19 - Electrcal System March 2020 Electrical Harness - 2632SE , 3346SE Platform Control Box Charger Pressure sensor Battery Angle sensor Battery Battery Power Battery Level switch sensor Fuse Travel switch 300A Down Drive Motor Travel switch Contactor Pothole Travel switch Drive Controller...
  • Page 155 Secton 19 - Electrcal System March 2020 Item Part Number Description Qty������ 41864 Harness, ECU 41865 Harness, Drive Motor 2632SE 41866 Harness, Drive Motor 3346SE 41867 Harness, Pump Motor Negative - 2632SE , 3346SE 41868 Harness, Drive Controller - 2632SE , 3346SE 41869 Harness, Pump Motor Positive - 2632SE , 3346SE 41870...

  • Page 156: ElectrCal Harness - 4046Se , 4555Se

    Secton 19 - Electrcal System March 2020 Electrical Harness - 4046SE , 4555SE Platform Control Box Charger Pressure sensor Battery Battery Angle sensor Power Battery Battery switch Level sensor Travel switch Fuse 300A Down Drive Motor Travel switch Contactor Pothole Travel switch Drive Controller...
  • Page 157 Secton 19 - Electrcal System March 2020 Item Part Number Description Qty������ 41864 Harness, ECU 41866 Harness, Drive Motor 4046SE 41880 Harness, Drive Motor 4555SE 41867 Harness, Pump Motor Negative - 2632SE , 3346SE 41868 Harness, Drive Controller - 2632SE , 3346SE 41869 Harness, Pump Motor Positive - 2632SE , 3346SE 41870...

  • Page 158: Decal LocatOns - 1930Se

    Secton 20 - Decals March 2020 Decal Locations - 1930SE Decal Locations - 1930SE M EC & More Warr anty 1 (84 Broc hure 95256 uals 13 14 29 Opposite side also Page 153 SE Seres - Servce & Parts Manual...
  • Page 159 94120 Qty. - 2 41632 Qty. - 1 41640 Qty. - 1 91850 Qty. - 2 94778 Qty. - 1 MEC - Model Info Text 1930SE 1 (844) 483-4669 Manuals Brochures Warranty & More 95256 90732 Qty. - 1 43879 Qty.
  • Page 160 Decal Instructions - Emergency Lower 41649 Decal, Warning Panel 90719 Decal, MEC Oval 41642 Decal, Tip Over Hazard 94423 Decal, MEC Direct Electric Drive 41648 Decal - Lanyard Anchorage 8911 Decal, Manuals Inside Icon 41652 Decal Danger - Safety Rules 41647...

  • Page 161: Decal LocatOns - 2632Se, 3346Se

    Secton 20 - Decals March 2020 Decal Locations - 2632SE, 3346SE 29 Opposite side also l Inf - Mo Text & More -466 Warra 1 (844 ) 483 ures Broch 95257 Manu Page 156 SE Seres - Servce & Parts Manual...
  • Page 162 94120 Qty. - 2 41632 Qty. - 1 41640 Qty. - 1 91850 Qty. - 2 90732 Qty. - 1 MEC - Model Info Text 2632SE 1 (844) 483-4669 Manuals Brochures Warranty & More 95257 94778 Qty. - 1 43879 Qty.
  • Page 163 94120 Qty. - 2 41632 Qty. - 1 41640 Qty. - 1 91850 Qty. - 2 90732 Qty. - 1 MEC - Model Info Text 3346SE 1 (844) 483-4669 Manuals Brochures Warranty & More 95258 94778 Qty. - 1 43879 Qty.
  • Page 164 Decal Instructions - Emergency Lower 41649 Decal, Warning Panel 90719 Decal, MEC Oval 41642 Decal, Tip Over Hazard 94423 Decal, MEC Direct Electric Drive 41648 Decal - Lanyard Anchorage 8911 Decal, Manuals Inside Icon 41652 Decal Danger - Safety Rules 41647...

  • Page 165: Decal LocatOns - 4046Se, 4555Se

    Secton 20 - Decals March 2020 Decal Locations - 4046SE, 4555SE 28 Opposite side also l Inf - Mo Text & More ) 483- Warra 1 (844 Broch ures 95259 Manu Page 160 SE Seres - Servce & Parts Manual...
  • Page 166 41647 Qty. - 1 94120 Qty. - 2 41632 Qty. - 1 41640 Qty. - 1 91850 Qty. - 2 MEC - Model Info Text 4046SE 1 (844) 483-4669 Manuals Brochures Warranty & More 95259 90732 Qty. - 1 94778 Qty.
  • Page 167 41647 Qty. - 1 94120 Qty. - 2 41632 Qty. - 1 41640 Qty. - 1 91850 Qty. - 2 MEC - Model Info Text 4555SE 1 (844) 483-4669 Manuals Brochures Warranty & More 95260 90732 Qty. - 1 94778 Qty.
  • Page 168 Decal Instructions - Emergency Lower 41649 Decal, Warning Panel 90719 Decal, MEC Oval 41642 Decal, Tip Over Hazard 94423 Decal, MEC Direct Electric Drive 41648 Decal - Lanyard Anchorage 8911 Decal, Manuals Inside Icon 41652 Decal Danger - Safety Rules 41647...
  • Page 169 March 2020 Notes Page 164 SE Seres - Servce & Parts Manual...
  • Page 170 MEC Parts Order Form Phone: 559-842-1523 Fax: 559-400-6723 Email: Parts@mecawp������ c om Please fill out completely Date: Ordered By: Account: Your Fax No.: Ship to: Bill to: Purchase Order Number Ship VIA ** All orders MUST have a Purchase Order Number...
  • Page 171 MEC Aerial Platform Sales Corp. and is found upon inspection by MEC Aerial Platform Sales Corp. to be defective in material and/or workmanship. MEC Aerial Platform Sales Corp. shall not be liable for any consequential, incidental or contingent damages whatsoever.
  • Page 172 MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1 - 877 - 632 - 5438 Phone: 1 - 559 - 842 - 1500 Fax: 1 - 559 - 842 - 1520 info@MECawp.com www.MECawp.com...

This manual is also suitable for:

1930se2632se3346se4046se4555se

Table of Contents

Save PDF
