Secton 8 - Troubleshootng - 3084RT Models
Matrix Module & Terminal Block Module (TBM)

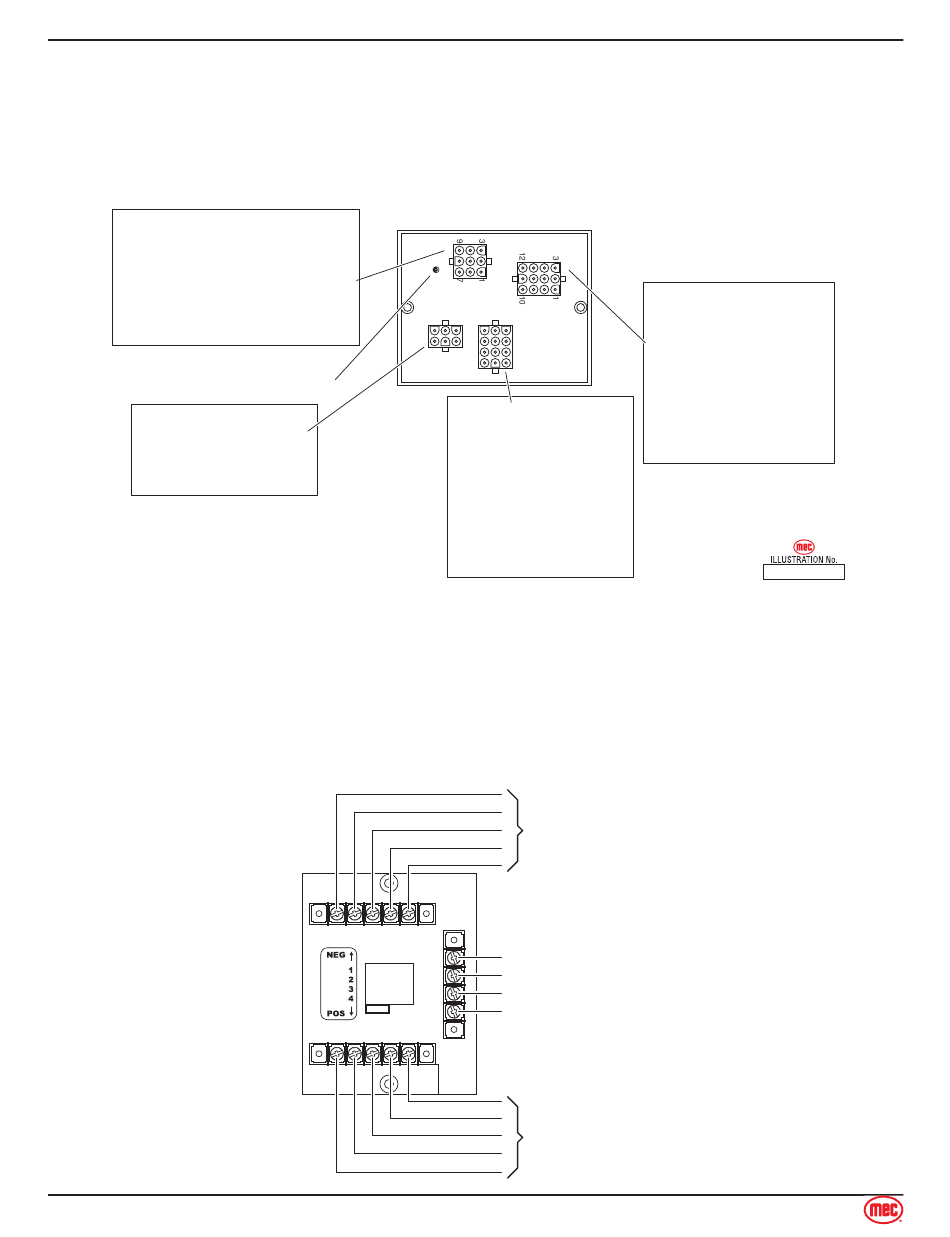

Matrix Module
The Matrix Module is the remote module located inside the upper control box. It received inputs from
the operator and relays them to the GP400.
P4-1 — not used
P4-2 — not used
P4-3 — not used
P4-4 — Level Indicator Lamp
P4-5 — Alarm
P4-6 — DriveEnabled Lamp (Outriggers Option)
P4-7 — not used
P4-8 — not used
P4-9 — not used
P1-1 — 12 Volts DC INPUT: Power-up
P1-2 — not used
P1-3 — CAN BUS H
P1-4 — Ground
P1-5 — not used
P1-6 — CAN BUS L
Matrix Module (inside Upper Control Box)
Terminal Block Module
There is a module inside the lower control box, called a TBM (Terminal Block Module) that provides
terminal point connections for both positive and ground circuits. A signal from the Emergency Stop
circuit activates a load-reduction relay within the TBM that provides ample power to the B+ (positive)
terminal strip. This arrangement protects the system against voltage drop conditions that can be
detrimental to the electrical system.
Page 90
3
6
Diagnostic
LED
P2-1 — FORWARD / DOWN
P2-2 — REVERSE / UP
P2-3 — STEER Left
P2-4 — STEER Right
P2-5 — Enable Bar
P2-6 — Potentiometer
P2-7 — not used
P2-8 — not used
P2-9 — not used
P2-10 — Potentiometer
P2-11 — Potentiometer
P2-12 — Switch Supply
ART_3186
Speed Level Seres - Servce & Parts Manual
1 3 1
4
12 10
GROUND
(B−) Connection
PLATFORM Selected
BASE Selected
ANALOG (AMP)
COMMON B+
POSITIVE OUTPUT
(B+) Supply
To various circuits
January 2019
P3-1 — High Speed
P3-2 — Switch Supply
P3-3 — not used
P3-4 — DRIVE
P3-5 — LIFT
P3-6 — NOT USED
P3-7 — not used
P3-8 — not used
P3-9 — not used
P3-10 — UP Switch
P3-11 — DOWN Switch
P3-12 — not used
ART_3159
