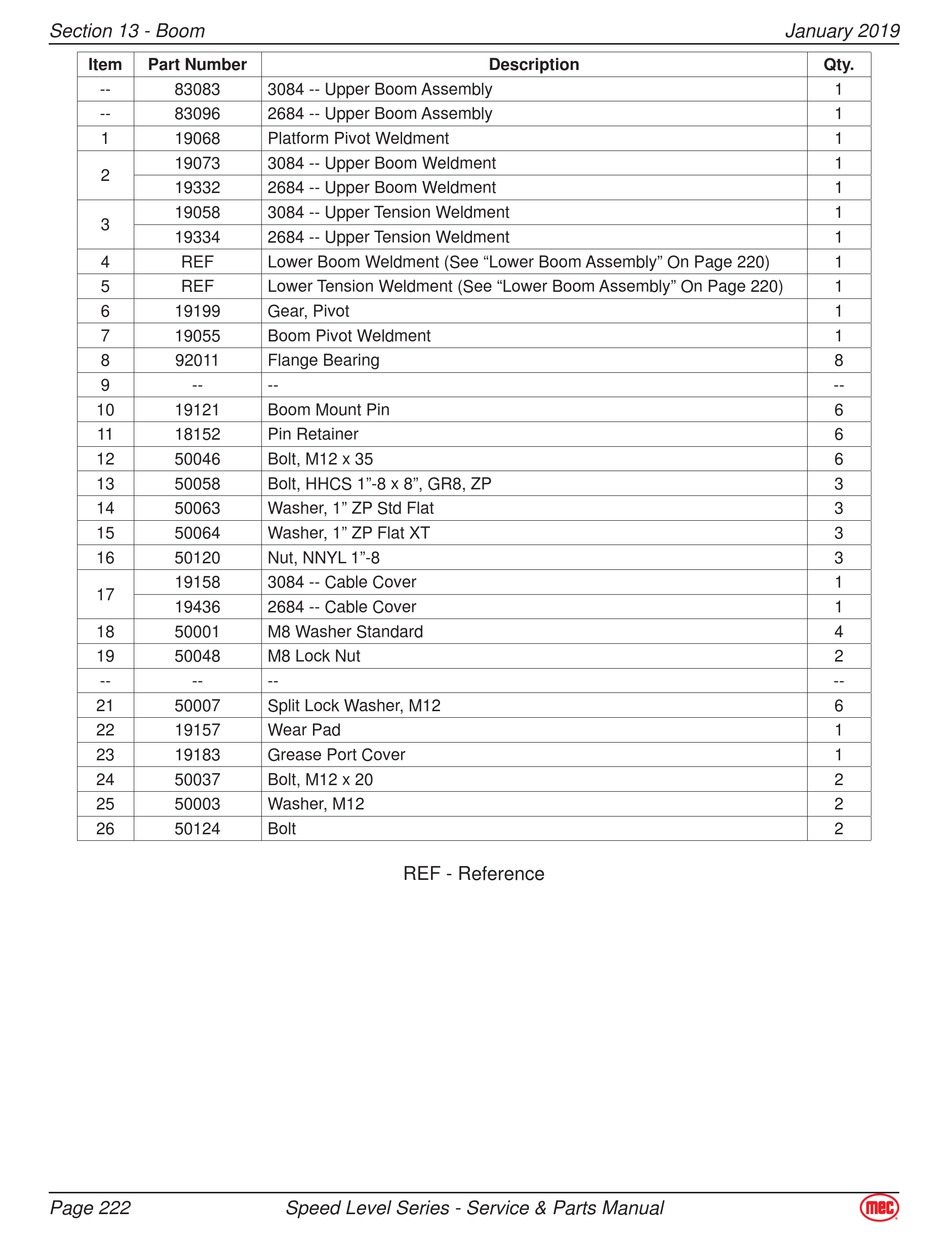

Mec Speed Level Series Service & Parts Manual page 229

Secton 13 - Boom
Item Part Number
-- 83083
-- 83096
1 19068
19073
2
19332
19058
3
19334
4 REF
5 REF
6 19199
7 19055
8 92011
9 --
10 19121
11 18152
12 50046
13 50058
14 50063
15 50064
16 50120
19158
17
19436
18 50001
19 50048
-- --
21 50007
22 19157
23 19183
24 50037
25 50003
26 50124
Page 222
3084 -- Upper Boom Assembly
2684 -- Upper Boom Assembly
Platform Pivot Weldment
3084 -- Upper Boom Weldment
2684 -- Upper Boom Weldment
3084 -- Upper Tension Weldment
2684 -- Upper Tension Weldment
Lower Boom Weldment (See "Lower Boom Assembly" On Page 220)
Lower Tension Weldment (See "Lower Boom Assembly" On Page 220)
Gear, Pivot
Boom Pivot Weldment
Flange Bearing
--
Boom Mount Pin
Pin Retainer
Bolt, M12 x 35
Bolt, HHCS 1"-8 x 8", GR8, ZP
Washer, 1" ZP Std Flat
Washer, 1" ZP Flat XT
Nut, NNYL 1"-8
3084 -- Cable Cover
2684 -- Cable Cover
M8 Washer Standard
M8 Lock Nut
--
Split Lock Washer, M12
Wear Pad
Grease Port Cover
Bolt, M12 x 20
Washer, M12
Bolt
REF - Reference
Speed Level Seres - Servce & Parts Manual
