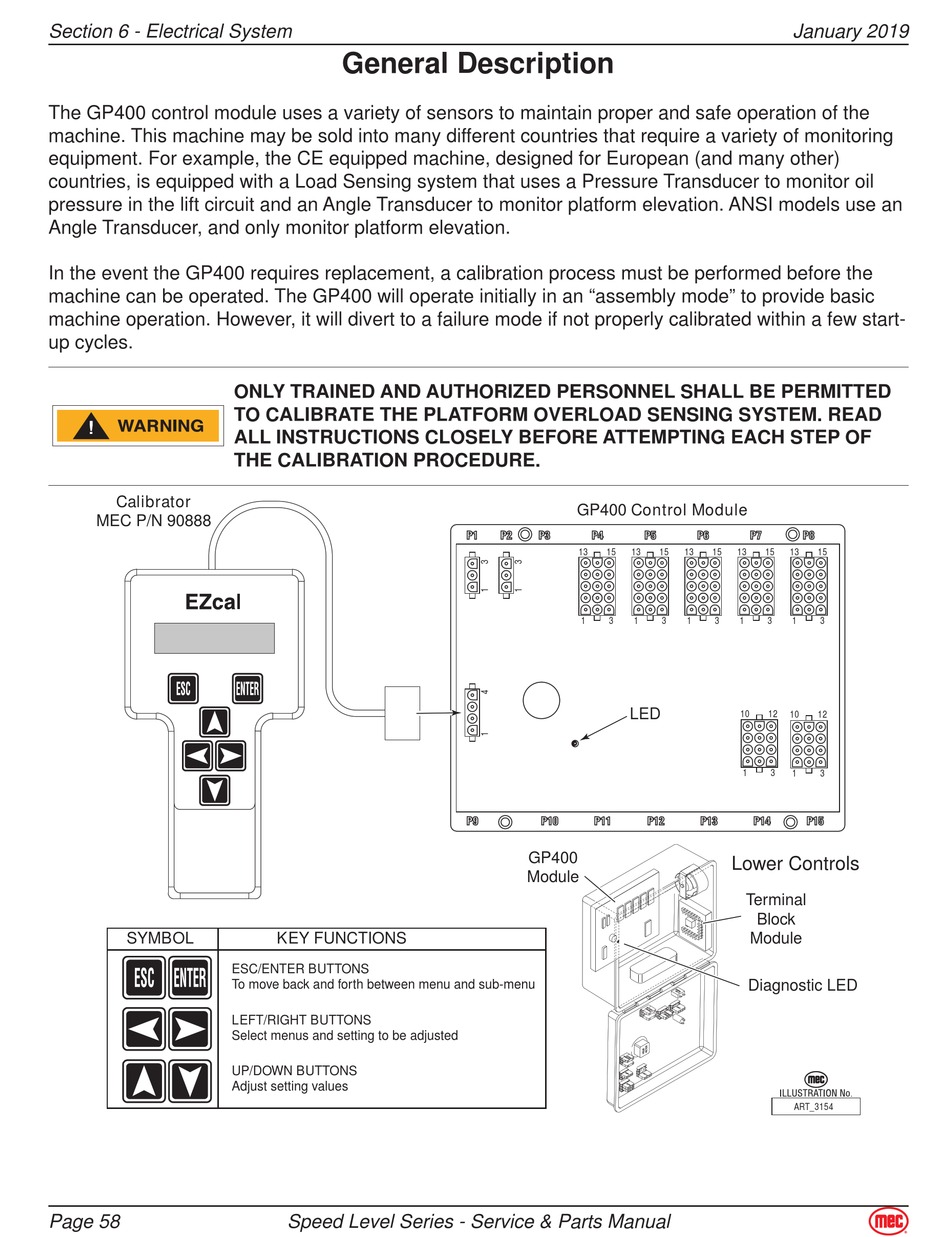

General DescrPtOn - Mec Speed Level Series Service & Parts Manual

Secton 6 - Electrcal System
The GP400 control module uses a variety of sensors to maintain proper and safe operation of the
machine. This machine may be sold into many different countries that require a variety of monitoring
equipment. For example, the CE equipped machine, designed for European (and many other)
countries, is equipped with a Load Sensing system that uses a Pressure Transducer to monitor oil
pressure in the lift circuit and an Angle Transducer to monitor platform elevation. ANSI models use an
Angle Transducer, and only monitor platform elevation.
In the event the GP400 requires replacement, a calibration process must be performed before the
machine can be operated. The GP400 will operate initially in an "assembly mode" to provide basic
machine operation. However, it will divert to a failure mode if not properly calibrated within a few start-
up cycles.
Calibrator
MEC P/N 90888
SYMBOL
Page 58
General Description
ONLY TRAINED AND AUTHORIZED PERSONNEL SHALL BE PERMITTED
TO CALIBRATE THE PLATFORM OVERLOAD SENSING SYSTEM������ READ
ALL INSTRUCTIONS CLOSELY BEFORE ATTEMPTING EACH STEP OF
THE CALIBRATION PROCEDURE������
KEY FUNCTIONS
ESC/ENTER BUTTONS
To move back and forth between menu and sub-menu
LEFT/RIGHT BUTTONS
Select menus and setting to be adjusted
UP/DOWN BUTTONS
Adjust setting values
Speed Level Seres - Servce & Parts Manual
GP400 Control Module
13 15 13 15 13
1 3 1 3 1
LED
GP400
Module
January 2019
15 13 15 13 15
3 1 3 1 3
10 12
10 12
1 3 1 3
Lower Controls
Terminal
Block
Module
Diagnostic LED
ART_3154
