Mec Speed Level Series Service & Parts Manual page 174

Secton 10 - Schematcs

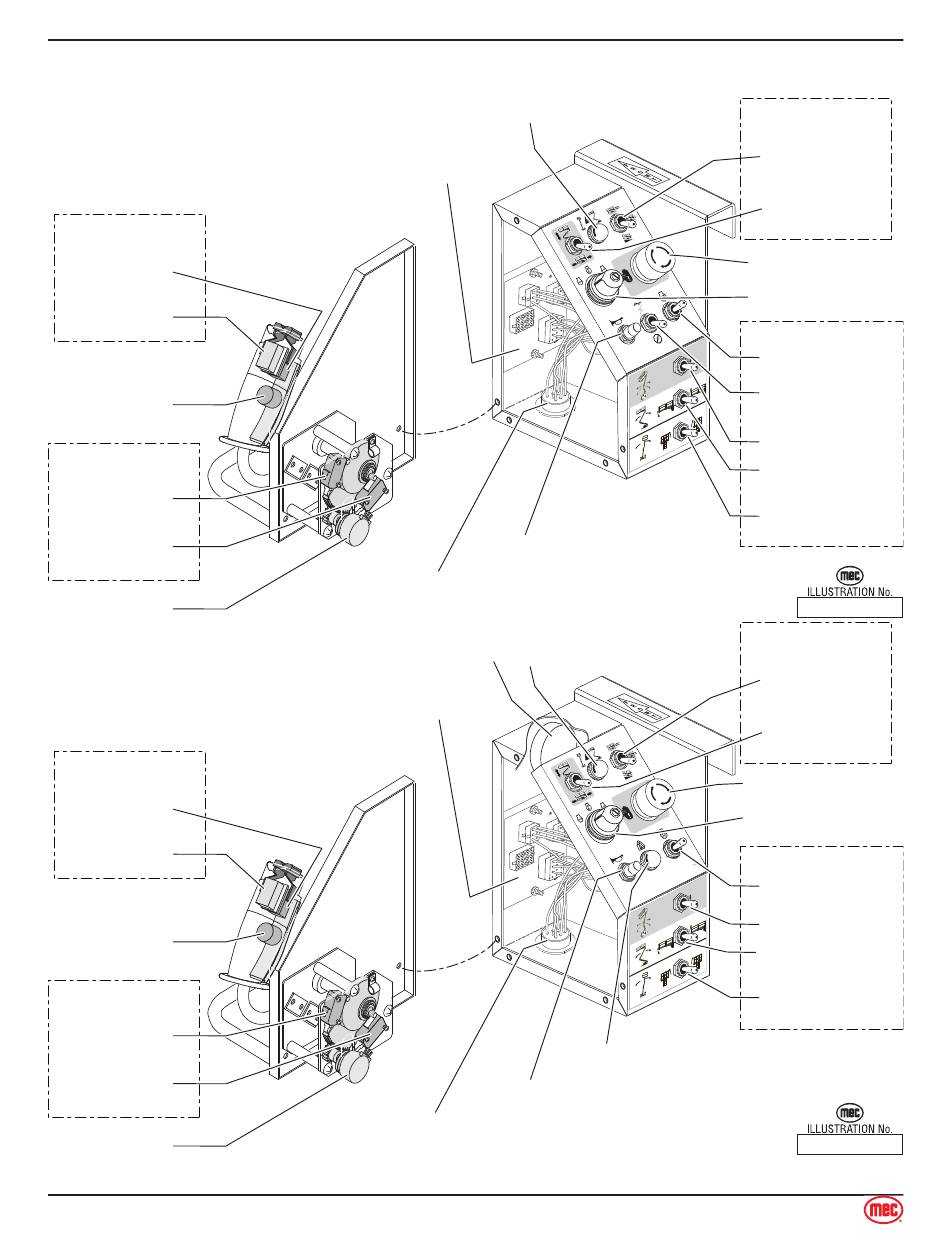

3084RT - Upper Controls Components
3084RT
ANSI
Micro-Switch
Steer Right
Steer Left
Enable Switch
Micro-Switch
Reverse/Up
Rocker Switch
Forward/Down
Rocker Switch
Potentiometer
3084RT
CE
Micro-Switches
Steer Right
Steer Left
Enable Switch
Micro-Switches
Reverse/Up
Rocker Switch
Forward/Down
Rocker Switch
Potentiometer
Page 167
Matrix Module
Cable Connector
Overload Alarm (CE)
Matrix Module
Cable Connector
Speed Level Seres - Servce & Parts Manual
TILT Light
HORN Button (Optional)
TILT Light
OVERLOAD Light (CE)
HORN Button (Optional)
January 2019
Toggle Switches
HIGH SPEED
MID RANGE
HIGH TORQUE
LIFT
DRIVE
EMERGENCY STOP
OFF / RUN / START
Toggle Switches
CHOKE / GLOW
GENERATOR
(Option)
4 3
9 1 8 AUTO LEVEL
MANUAL LEVEL
(Front to Rear)
MANUAL LEVEL
(Side to Side)
ART_3192
Toggle Switches
HIGH SPEED
MID RANGE
HIGH TORQUE
LIFT
DRIVE
EMERGENCY STOP
OFF / RUN / START
Toggle Switches
GLOW
AUTO LEVEL
MANUAL LEVEL
(Front to Rear)
4 3
9 1 8
MANUAL LEVEL
(Side to Side)
ART_3194
