Mec Speed Level Series Service & Parts Manual page 38

Secton 5 - Hydraulc System
1
4
TORQUE
SEQUENCE
5
2
7
PRE-TORQUE = 10 FT LBS
FINAL TORQUE = 50 FT LBS
6
19

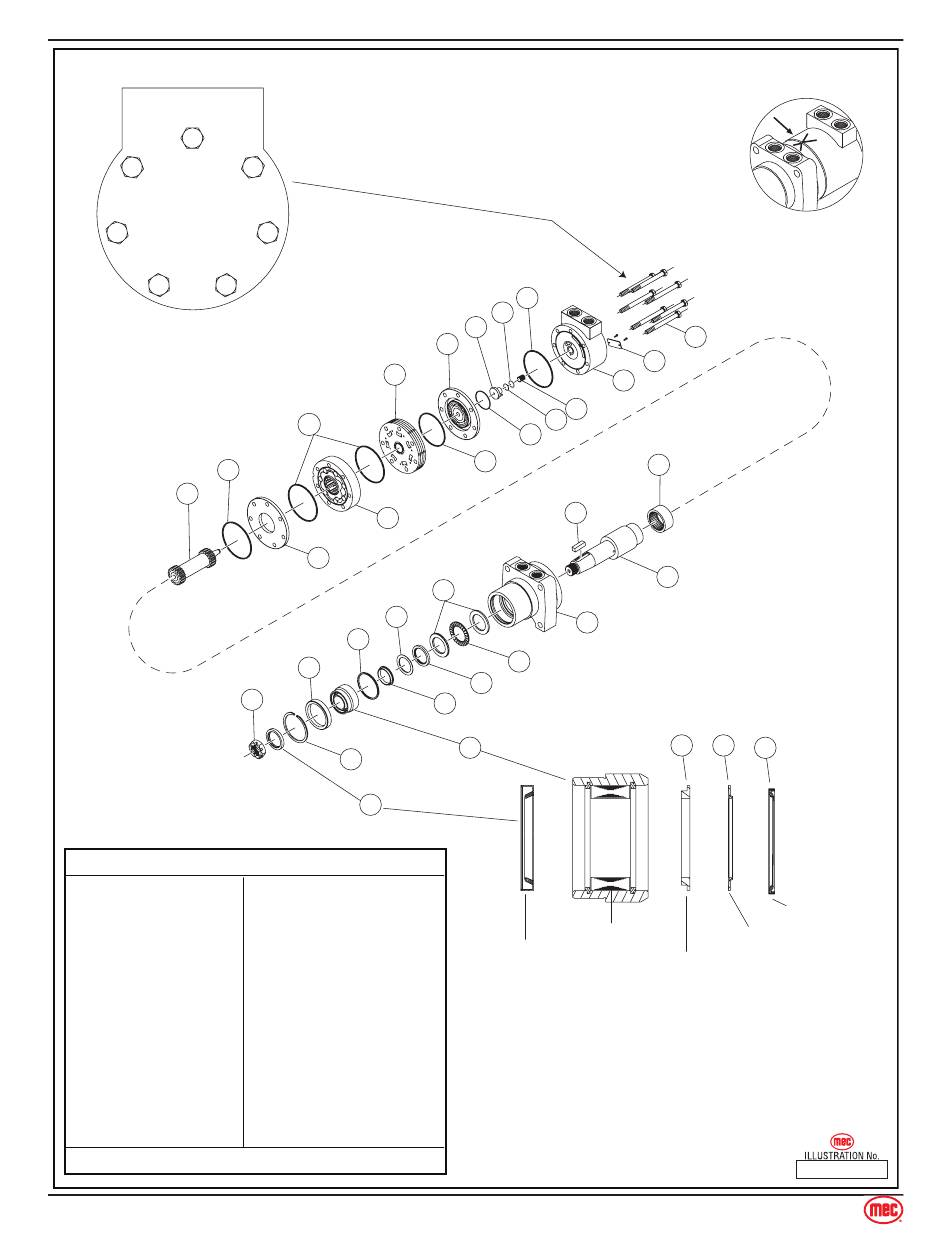

DT701 Series Motor Components
1. * Dust Seal
2. * High Pressure Seal
3. * Metal Backup Shim
4. * Backup Seal
5. * Shaft Seal
6. * Housing Seal
7. * Body Seals (3)
8. * Manifold Seal
9. * Commutator Seal
10. * O-Ring Seal
11. * Backup Seal
12. Retaining Snap Ring
13. Bearing Spacer
14. 1.5" Bearing
15. Thrust Washers (2)
16. Thrust Bearing
*Seal kit components
Page 31
6
3
22
7
21
20
4
2
13
31
12
1
17. Housing
18. Rear Housing Bearing
19. Drive Link
20. Divider Plate
21. Rotor Assembly
22. Manifold
23. Commutator Assembly
24. Endcover Piston
25. Piston Spring
26. Endcover
27. I.D. Tag Assembly
28. Assembly Bolts (7)
29. Shaft
30. Shaft Key
31. Shaft Nut
Speed Level Seres - Servce & Parts Manual
7
11
24
23
25
10
9
8
30
15
17
16
5
3
14
1.5" BEARING
DUST SEAL
January 2019
"V" Marks for Reassembly
28
27
26
18
29
3 4
5
SHAFT SEAL
BACKUP SEAL
METAL BACKUP RING
ART_2548
