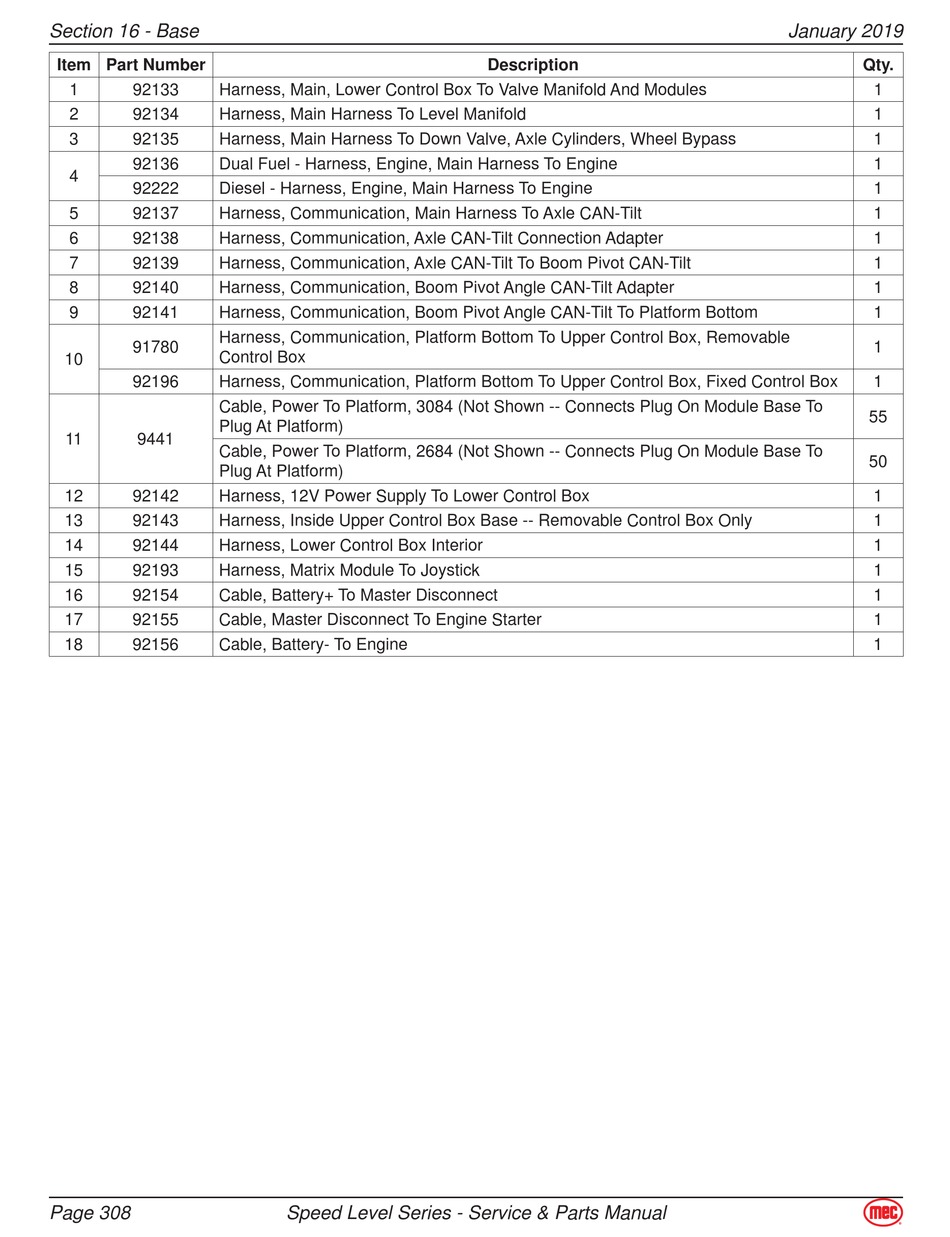

Mec Speed Level Series Service & Parts Manual page 315

Secton 16 - Base
Item Part Number
1 92133 Harness, Main, Lower Control Box To Valve Manifold And Modules
2 92134 Harness, Main Harness To Level Manifold
3 92135 Harness, Main Harness To Down Valve, Axle Cylinders, Wheel Bypass
92136 Dual Fuel - Harness, Engine, Main Harness To Engine
4
92222 Diesel - Harness, Engine, Main Harness To Engine
5 92137 Harness, Communication, Main Harness To Axle CAN-Tilt
6 92138 Harness, Communication, Axle CAN-Tilt Connection Adapter
7 92139 Harness, Communication, Axle CAN-Tilt To Boom Pivot CAN-Tilt
8 92140 Harness, Communication, Boom Pivot Angle CAN-Tilt Adapter
9 92141 Harness, Communication, Boom Pivot Angle CAN-Tilt To Platform Bottom
Harness, Communication, Platform Bottom To Upper Control Box, Removable
91780
Control Box
10
92196 Harness, Communication, Platform Bottom To Upper Control Box, Fixed Control Box
Cable, Power To Platform, 3084 (Not Shown -- Connects Plug On Module Base To
Plug At Platform)
11 9441
Cable, Power To Platform, 2684 (Not Shown -- Connects Plug On Module Base To
Plug At Platform)
12 92142 Harness, 12V Power Supply To Lower Control Box
13 92143 Harness, Inside Upper Control Box Base -- Removable Control Box Only
14 92144 Harness, Lower Control Box Interior
15 92193 Harness, Matrix Module To Joystick
16 92154 Cable, Battery+ To Master Disconnect
17 92155 Cable, Master Disconnect To Engine Starter
18 92156 Cable, Battery- To Engine
Page 308 Speed Level Seres - Servce & Parts Manual
Description
January 2019
Qty������
1
1
1
1
1
1
1
1
1
1
1
1
55
50
1
1
1
1
1
1
1
