Secton 7 - Mechancal System

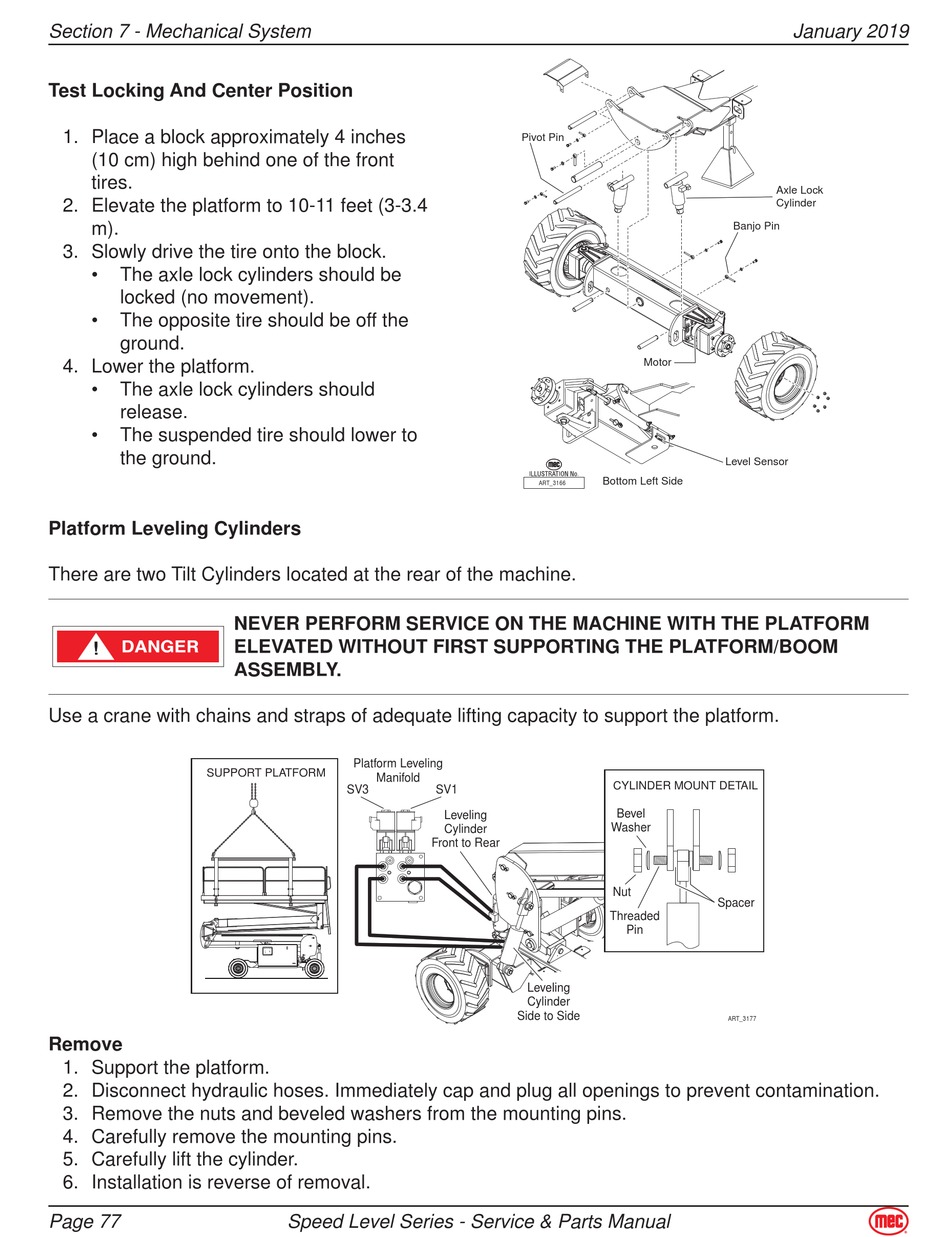

Test Locking And Center Position
1. Place a block approximately 4 inches
(10 cm) high behind one of the front
tires.
2. Elevate the platform to 10-11 feet (3-3.4
m).
3. Slowly drive the tire onto the block.
• The axle lock cylinders should be
locked (no movement).
• The opposite tire should be off the
ground.
4. Lower the platform.
• The axle lock cylinders should
release.
• The suspended tire should lower to
the ground.
Platform Leveling Cylinders
There are two Tilt Cylinders located at the rear of the machine.
Use a crane with chains and straps of adequate lifting capacity to support the platform.
SUPPORT PLATFORM
Remove
1. Support the platform.
2. Disconnect hydraulic hoses. Immediately cap and plug all openings to prevent contamination.
3. Remove the nuts and beveled washers from the mounting pins.
4. Carefully remove the mounting pins.
5. Carefully lift the cylinder.
6. Installation is reverse of removal.
Page 77
NEVER PERFORM SERVICE ON THE MACHINE WITH THE PLATFORM
ELEVATED WITHOUT FIRST SUPPORTING THE PLATFORM/BOOM
ASSEMBLY������
Platform Leveling
Manifold
SV3
Speed Level Seres - Servce & Parts Manual
Pivot Pin
Bottom Left Side
ART_3166
SV1
Leveling
Washer
Cylinder
Front to Rear
Threaded
Leveling
Cylinder
Side to Side
January 2019
Axle Lock
Cylinder
Banjo Pin
Motor
Level Sensor
CYLINDER MOUNT DETAIL
Bevel
Nut
Spacer
Pin
ART_3177
