Secton 4 - General Informaton
The machine can be winched or moved short distances in case of power failure at speeds not to
exceed 5 MPH (8.05 km/h). Before towing or winching the machine, it is necessary to release the
brake. Reset the brakes after winching or towing.
Disengage Brakes Before Towing:
• Chock the wheels.
• Push and hold release valve.
• Using the hand pump on the manifold, pump
valve until pressure is built and valve cannot
be pumped.
• Machine is now ready for towing.
Engage Brakes Before Driving:
• Pull out the manual brake release valve to
reset brakes.
Note:Brakes will reset automatically when drive
function is activated.
Page 14

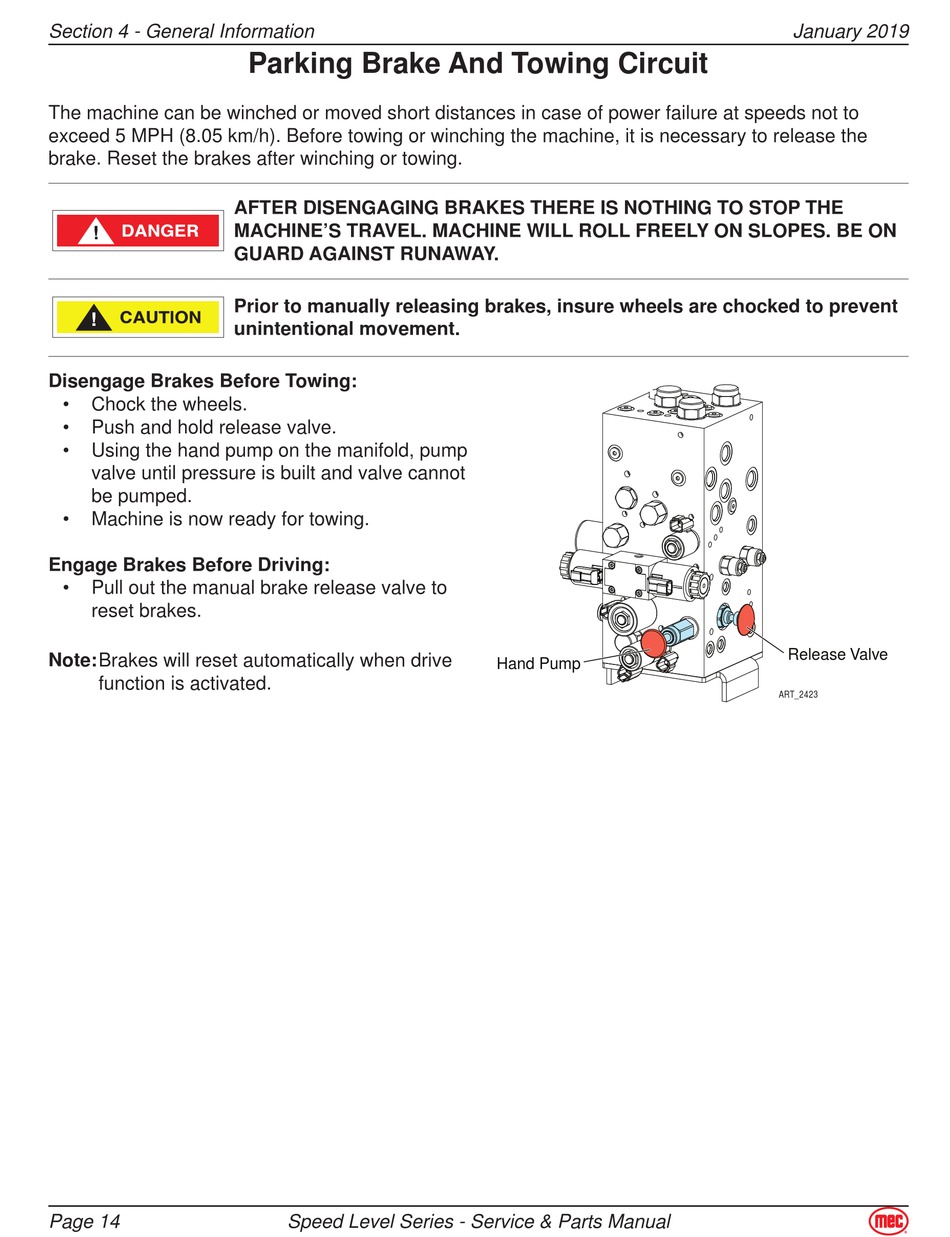

Parking Brake And Towing Circuit
AFTER DISENGAGING BRAKES THERE IS NOTHING TO STOP THE
MACHINE'S TRAVEL������ MACHINE WILL ROLL FREELY ON SLOPES������ BE ON
GUARD AGAINST RUNAWAY������
Prior to manually releasing brakes, insure wheels are chocked to prevent
unintentional movement������
Speed Level Seres - Servce & Parts Manual
Hand Pump
January 2019
Release Valve
ART_2423
