Secton 4 - General Informaton
Note:Always lubricate threads with clean hydraulic fluid prior to installation.
Use the following values to torque hydraulic components when a specific value is not available.
Always check for torque values in the following places before relying on the Hydraulic Components
Torque Table.
• Parts drawings and service instructions in this manual.
• Packaging and instruction sheets provided with new parts.
• Instruction manuals provided by the manufacturer of the component being serviced.
Type: SAE Port Series
#4
#6
#8
#10
#12
#16
Page 12

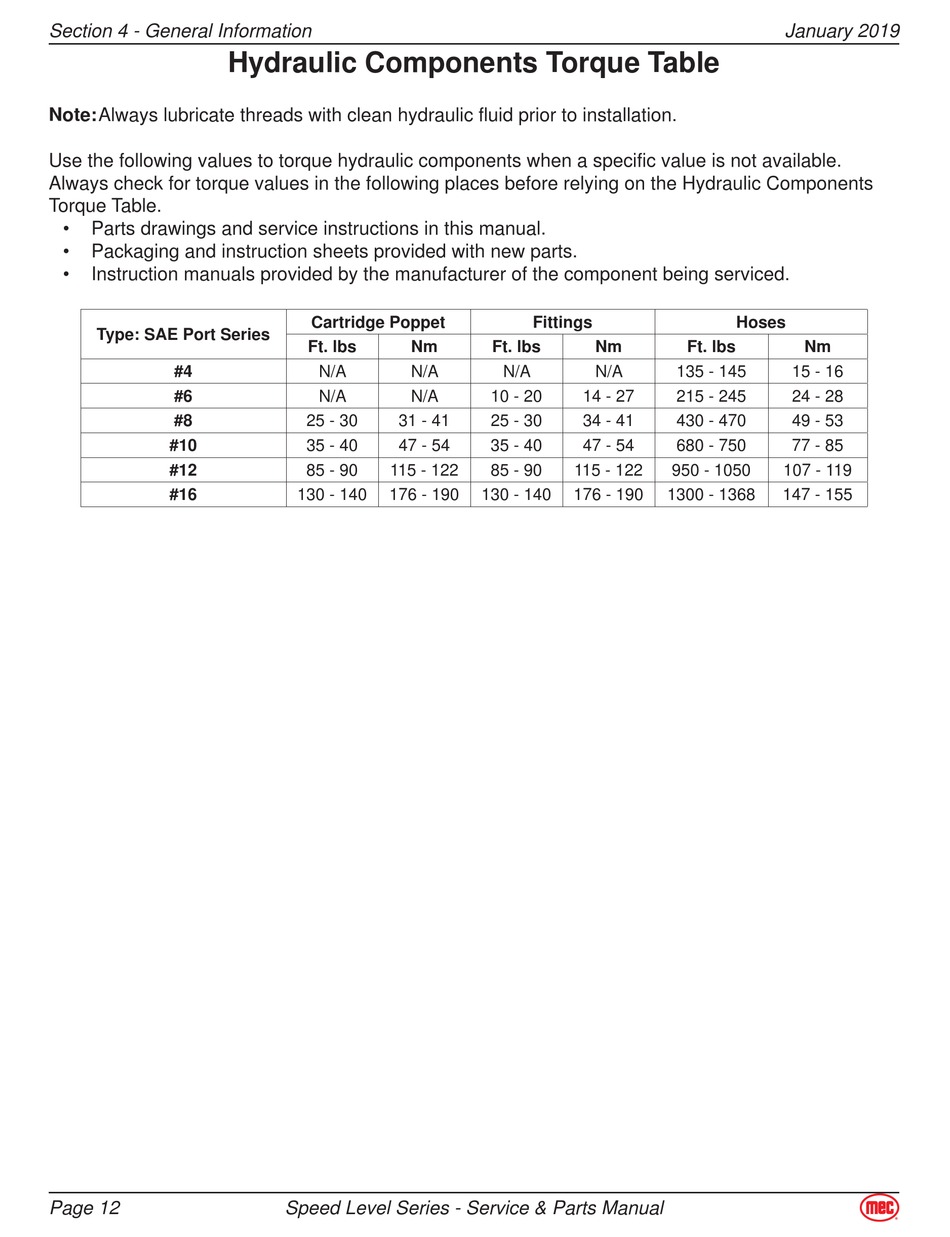

Hydraulic Components Torque Table
Cartridge Poppet
Ft������ lbs
N/A
N/A
25 - 30 31 - 41
35 - 40 47 - 54
85 - 90 115 - 122
130 - 140 176 - 190
Speed Level Seres - Servce & Parts Manual
Fittings
Nm Ft������ lbs
N/A N/A
N/A 10 - 20 14 - 27
25 - 30 34 - 41
35 - 40 47 - 54
85 - 90 115 - 122
130 - 140 176 - 190
Hoses
Nm Ft������ lbs
N/A 135 - 145
215 - 245
430 - 470
680 - 750
950 - 1050
1300 - 1368
January 2019
Nm
15 - 16
24 - 28
49 - 53
77 - 85
107 - 119
147 - 155
