P600 Motor Control Module - Mec Speed Level Series Service & Parts Manual

Secton 9 - Troubleshootng - 3084ES Models

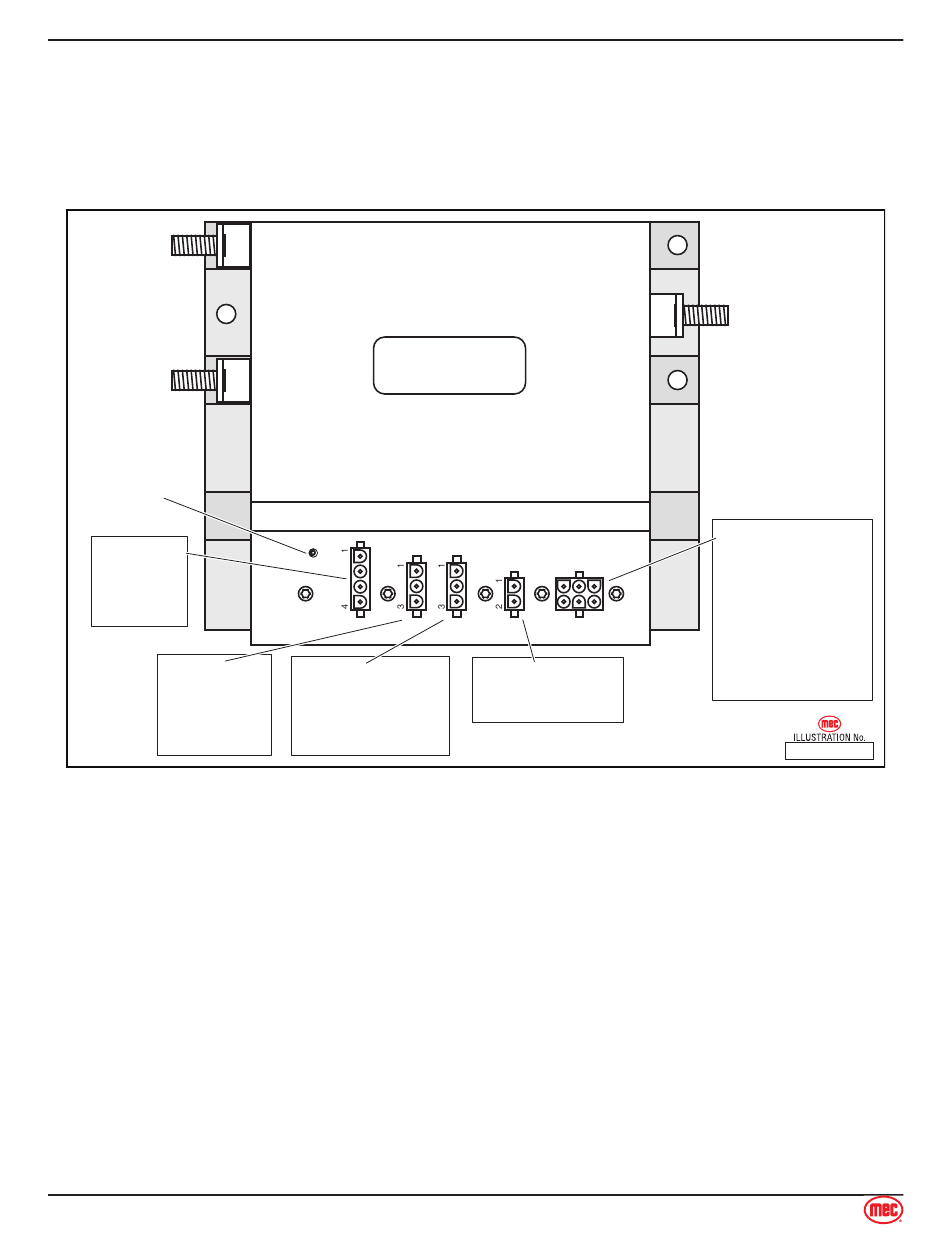

The Motor Control Module operates the electric pump motor with varied speeds depending on
operator commands. Pulse-width Modulation provides smooth and controlled operation with
maximum battery efficiency. The Motor Controller also converts battery voltage (48 volts DC) to the
user-friendly 12 volts DC used throughout the rest of the system.
To:
B+
Battery
Disconnect
Switch
To:
Pump
Motor
Diagnostic
LED
P5
EZ-Cal
Connection
P6
P6-1 — CAN BUS H
P6-2 — CAN BUS L
P6-3 — Ground
to GP400
Page 126

P600 Motor Control Module

P 600
CMEC 48V RT
21 510 601
s/n: 2071200014
P7
P7-1 — CAN BUS H
P7-2 — CAN BUS L
P7-3 — Ground
to Upper Controls
Speed Level Seres - Servce & Parts Manual
3 1
P8
P8-1 — 48 Volts DC INPUT
P8-2 — 48 Volts DC INPUT
January 2019
To:
Battery
B–
Ground
P1
P1-1 — 12 Volts DC OUTPUT
P1-2 — 12 Volts DC OUTPUT
P1-3 — 12 Volts DC OUTPUT
P1-4 — BASE Selected
P1-5 — PLATFORM Selected
P1-6 — Output to
EMERGENCY STOP
Circuit for Module
Activation
ART_2572
