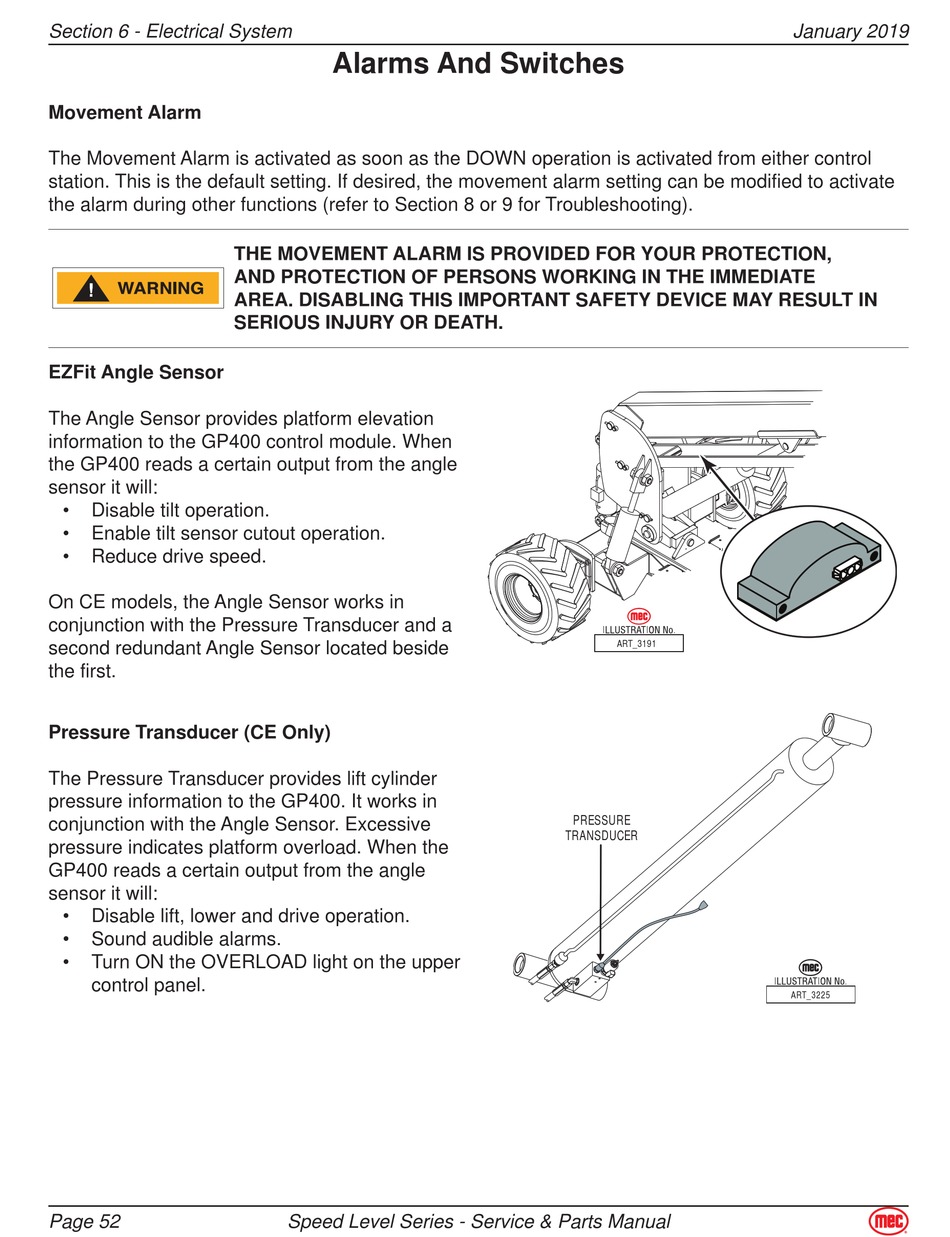

Alarms And SwTches - Mec Speed Level Series Service & Parts Manual

Secton 6 - Electrcal System
Movement Alarm
The Movement Alarm is activated as soon as the DOWN operation is activated from either control
station. This is the default setting. If desired, the movement alarm setting can be modified to activate
the alarm during other functions (refer to Section 8 or 9 for Troubleshooting).
EZFit Angle Sensor
The Angle Sensor provides platform elevation
information to the GP400 control module. When
the GP400 reads a certain output from the angle
sensor it will:
• Disable tilt operation.
• Enable tilt sensor cutout operation.
• Reduce drive speed.
On CE models, the Angle Sensor works in
conjunction with the Pressure Transducer and a
second redundant Angle Sensor located beside
the first.
Pressure Transducer (CE Only)
The Pressure Transducer provides lift cylinder
pressure information to the GP400. It works in
conjunction with the Angle Sensor. Excessive
pressure indicates platform overload. When the
GP400 reads a certain output from the angle
sensor it will:
• Disable lift, lower and drive operation.
• Sound audible alarms.
• Turn ON the OVERLOAD light on the upper
control panel.
Page 52
Alarms And Switches
THE MOVEMENT ALARM IS PROVIDED FOR YOUR PROTECTION,
AND PROTECTION OF PERSONS WORKING IN THE IMMEDIATE
AREA������ DISABLING THIS IMPORTANT SAFETY DEVICE MAY RESULT IN
SERIOUS INJURY OR DEATH������
Speed Level Seres - Servce & Parts Manual
ART_3191
PRESSURE
TRANSDUCER
January 2019
ART_3225
