LFt CylNder - Mec Speed Level Series Service & Parts Manual

Secton 5 - Hydraulc System
Note:Refer to Cylinder Repair.
One (1) single acting type hydraulic cylinder.
The cylinder has an integrated 2-position, 2-way solenoid operated platform lower valve for holding
the platform in position. The valve is also electrically actuated via a toggle switch for manually
lowering the platform.
The normally-closed holding valve prevents retraction of the cylinder rod should a hydraulic line
rupture or a leak develop between the cylinder and its related control valve.

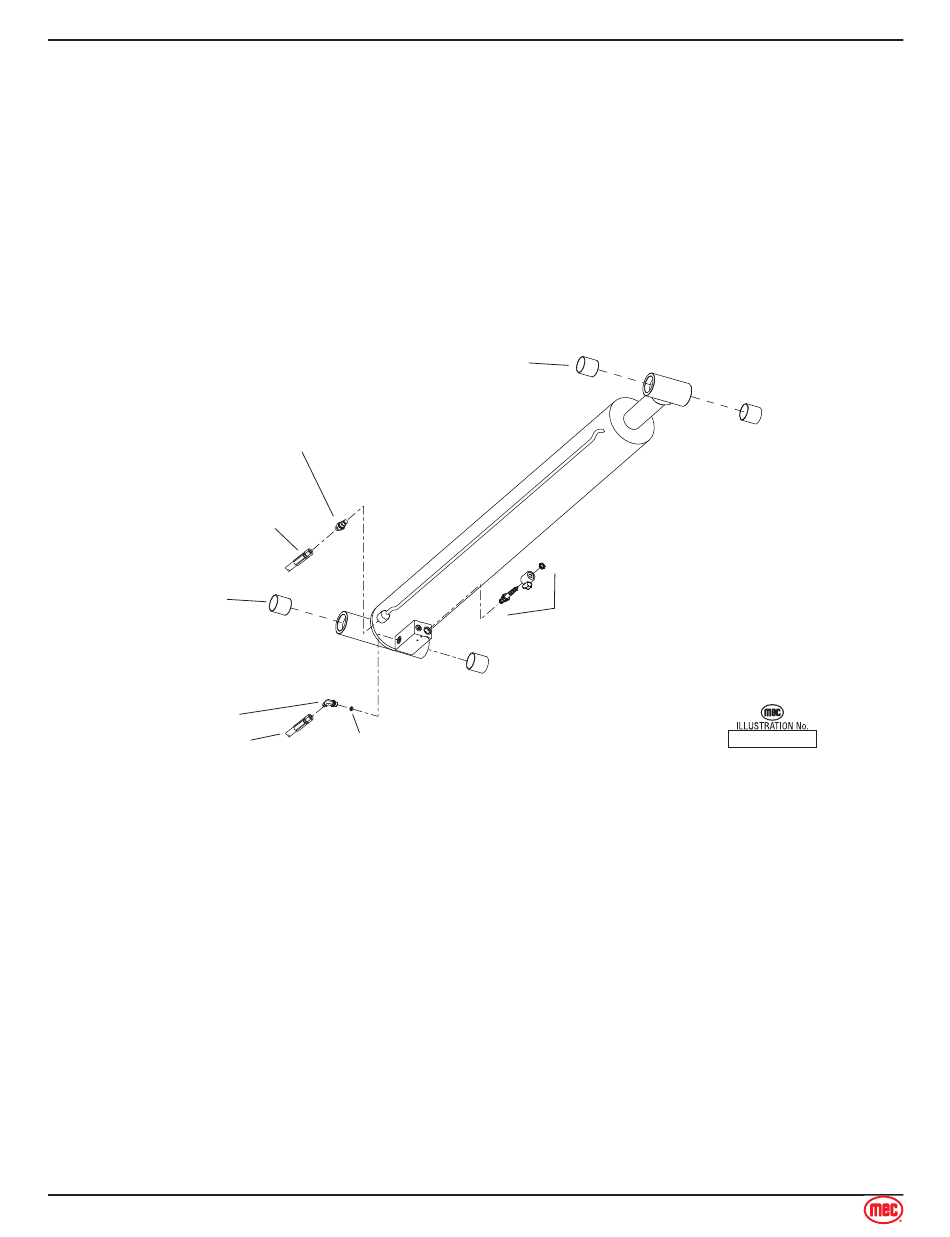

Return Hose
Bearing
Elbow Fitting
Pressure Hose
Page 39
Lift Cylinder
Fitting
Orifice
Speed Level Seres - Servce & Parts Manual
Bearing
Electrically
Operated
Down Valve
January 2019
ART_3175
