Secton 7 - Mechancal System
rear drive axle. Repair or replace as necessary when damage or leaks occur.

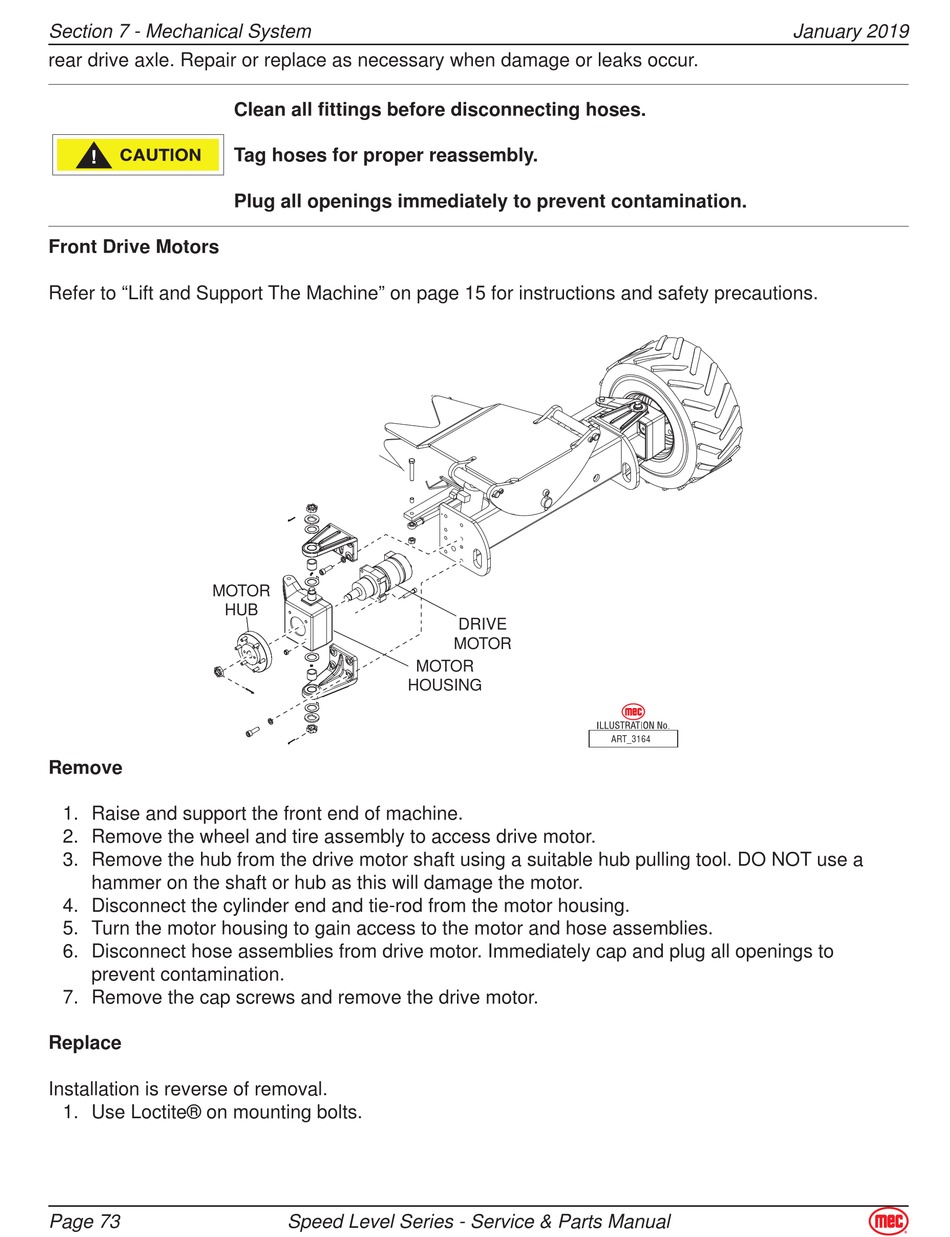

Front Drive Motors
Refer to "Lift and Support The Machine" on page 15 for instructions and safety precautions.
MOTOR
HUB
Remove
1. Raise and support the front end of machine.
2. Remove the wheel and tire assembly to access drive motor.
3. Remove the hub from the drive motor shaft using a suitable hub pulling tool. DO NOT use a
hammer on the shaft or hub as this will damage the motor.
4. Disconnect the cylinder end and tie-rod from the motor housing.
5. Turn the motor housing to gain access to the motor and hose assemblies.
6. Disconnect hose assemblies from drive motor. Immediately cap and plug all openings to
prevent contamination.
7. Remove the cap screws and remove the drive motor.
Replace
Installation is reverse of removal.
1. Use Loctite® on mounting bolts.
Page 73
Clean all fittings before disconnecting hoses������
Tag hoses for proper reassembly������
Plug all openings immediately to prevent contamination������
HOUSING
Speed Level Seres - Servce & Parts Manual
DRIVE
MOTOR
MOTOR
ART_3164
