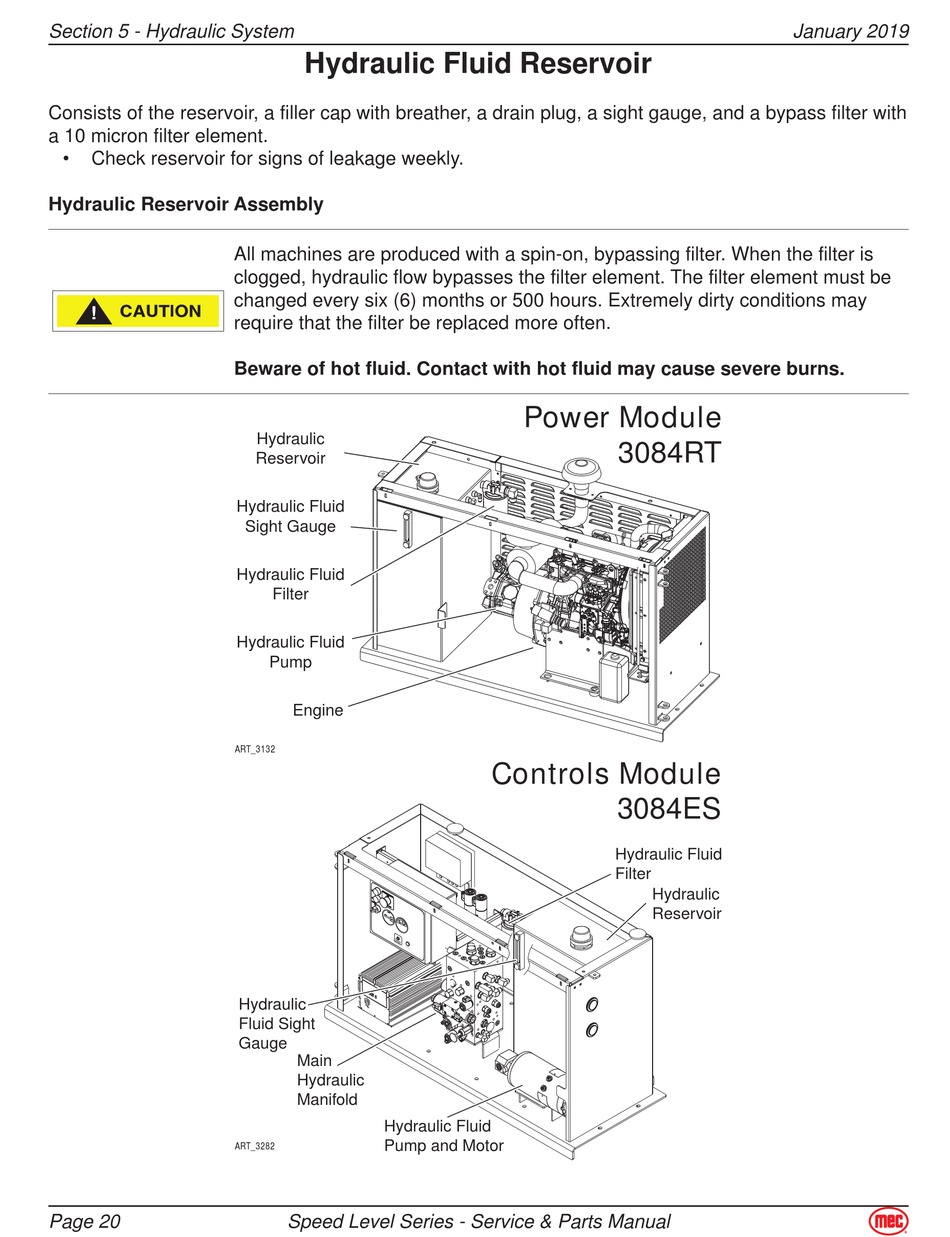

HydraulC FluD ReservoR - Mec Speed Level Series Service & Parts Manual

Secton 5 - Hydraulc System
Consists of the reservoir, a filler cap with breather, a drain plug, a sight gauge, and a bypass filter with
a 10 micron filter element.
• Check reservoir for signs of leakage weekly.
Hydraulic Reservoir Assembly
Page 20
Hydraulic Fluid Reservoir
All machines are produced with a spin-on, bypassing filter. When the filter is
clogged, hydraulic flow bypasses the filter element. The filter element must be
changed every six (6) months or 500 hours. Extremely dirty conditions may
require that the filter be replaced more often.
Beware of hot fluid������ Contact with hot fluid may cause severe burns������
Hydraulic
Reservoir
Hydraulic Fluid
Sight Gauge
Hydraulic Fluid
Filter
Hydraulic Fluid
Pump
Engine
ART_3132
15
BR AM P
EA KE
R
Hydraulic
Fluid Sight
Gauge
Main
Hydraulic
Manifold
Hydraulic Fluid
Pump and Motor
ART_3282
Speed Level Seres - Servce & Parts Manual
Power Module
3084RT
Controls Module
3084ES
Hydraulic Fluid
Filter
Hydraulic
Reservoir
January 2019
