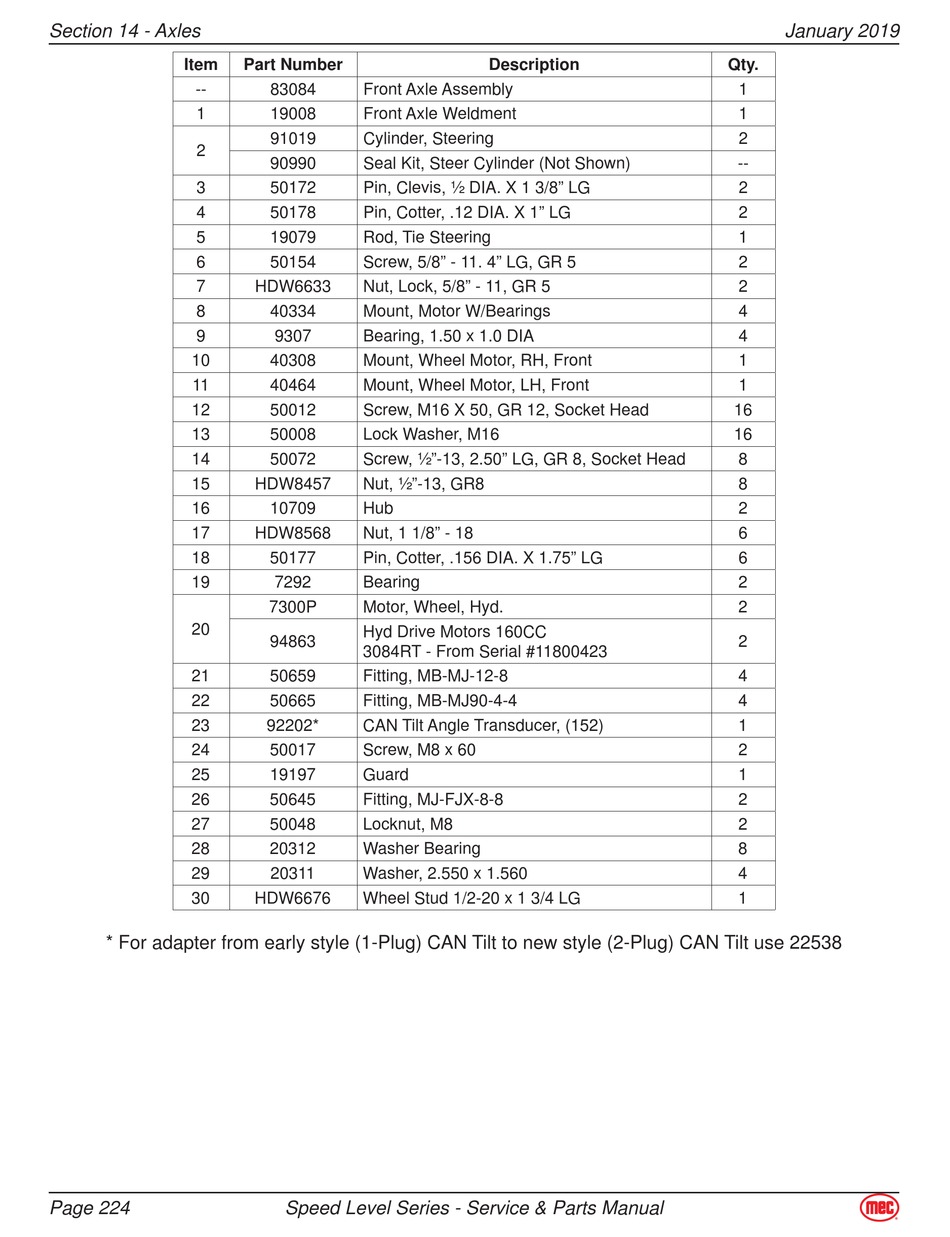

Mec Speed Level Series Service & Parts Manual page 231

Secton 14 - Axles
Item
--
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
* For adapter from early style (1-Plug) CAN Tilt to new style (2-Plug) CAN Tilt use 22538
Page 224
Part Number
83084 Front Axle Assembly
19008 Front Axle Weldment
91019 Cylinder, Steering
90990 Seal Kit, Steer Cylinder (Not Shown)
50172 Pin, Clevis, ½ DIA. X 1 3/8" LG
50178 Pin, Cotter, .12 DIA. X 1" LG
19079 Rod, Tie Steering
50154 Screw, 5/8" - 11. 4" LG, GR 5
HDW6633 Nut, Lock, 5/8" - 11, GR 5
40334 Mount, Motor W/Bearings
9307 Bearing, 1.50 x 1.0 DIA
40308 Mount, Wheel Motor, RH, Front
40464 Mount, Wheel Motor, LH, Front
50012 Screw, M16 X 50, GR 12, Socket Head
50008 Lock Washer, M16
50072 Screw, ½"-13, 2.50" LG, GR 8, Socket Head
HDW8457 Nut, ½"-13, GR8
10709 Hub
HDW8568 Nut, 1 1/8" - 18
50177 Pin, Cotter, .156 DIA. X 1.75" LG
7292 Bearing
7300P Motor, Wheel, Hyd.
Hyd Drive Motors 160CC
94863
3084RT - From Serial #11800423
50659 Fitting, MB-MJ-12-8
50665 Fitting, MB-MJ90-4-4
92202* CAN Tilt Angle Transducer, (152)
50017 Screw, M8 x 60
19197 Guard
50645 Fitting, MJ-FJX-8-8
50048 Locknut, M8
20312 Washer Bearing
20311 Washer, 2.550 x 1.560
HDW6676 Wheel Stud 1/2-20 x 1 3/4 LG
