Mec Speed Level Series Service & Parts Manual page 81

Secton 7 - Mechancal System

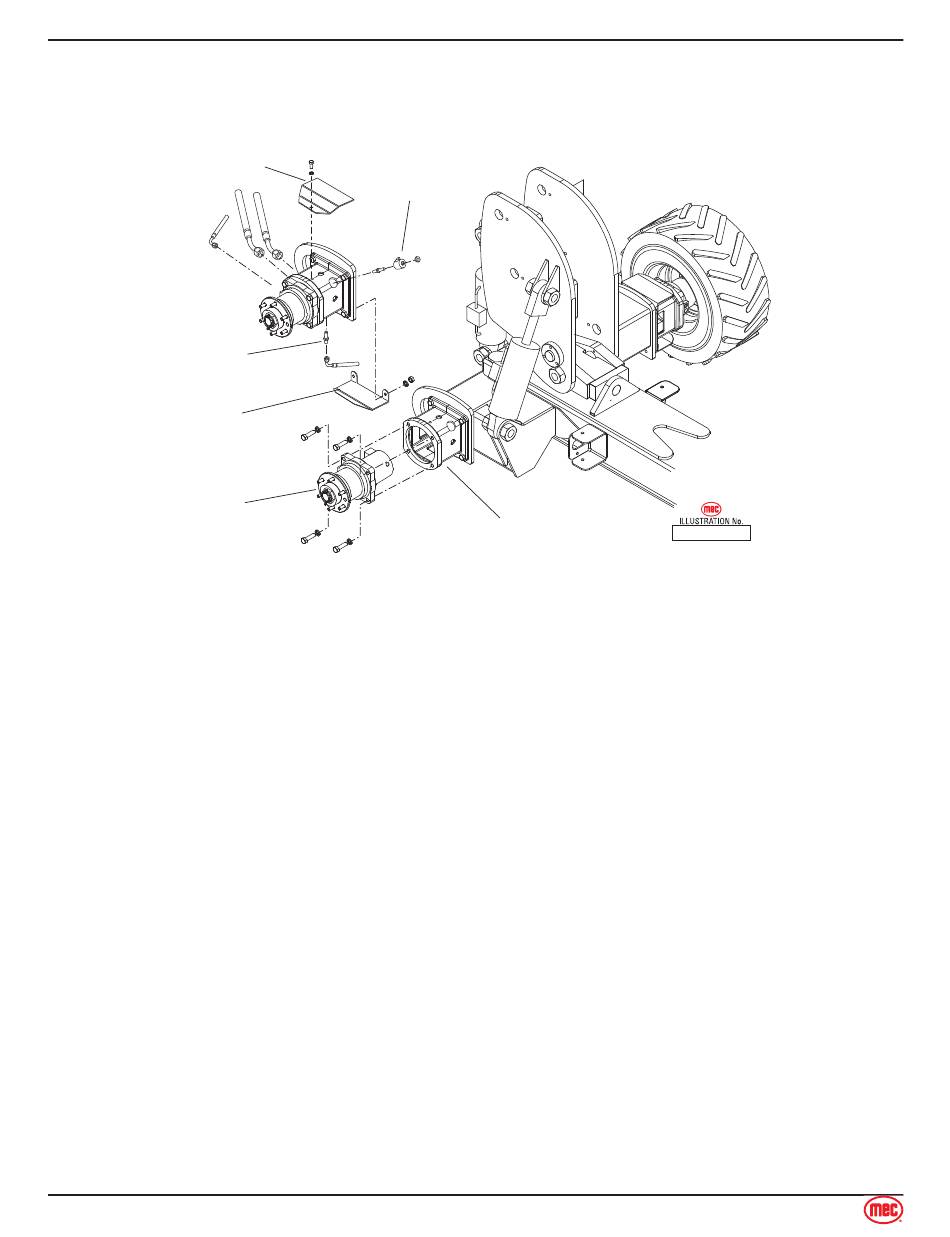

Rear Drive Motor
Refer to "Lift and Support The Machine" on page 15 for instructions and safety precautions.
Upper
Hose Guard
Hose
Fitting
Lower
Hose Guard
Drive
Motor
Assembly
Remove
1. Raise and support the rear end of machine (see Raising the Machine).
2. Remove the wheel and tire assembly to access drive motor.
3. Remove the upper and lower hose guards.
4. Disconnect hose assemblies from drive motor. Immediately cap and plug all openings to
prevent contamination.
5. Remove the hose fitting and the bypass valve solenoid from the motor.
Note:The bypass valve solenoid is mounted UP on the left side motor, and mounted DOWN on the
right side motor.
6. Remove the cap screws and remove the drive motor from the housing.
Replace
Installation is reverse of removal.
1. Use Loctite® on mounting bolts.
Steer Cylinder
There are two (2) double acting type steer cylinders on this machine. During operation, cylinder(s)
should not leak, but a slight damping at the rod seal is acceptable. The pins should be checked for
wear.
Page 74
Bypass Valve
Solenoid
Speed Level Seres - Servce & Parts Manual
Motor Housing
January 2019
ART_3165
