Mec Speed Level Series Service & Parts Manual page 34

Secton 5 - Hydraulc System
DRIVE FORWARD
111 - GRY/RED
LIFT
204 - RED/BLU
GAUGE PORT
STEER LEFT
108 - GRN/RED
LEFT REAR B
RIGHT REAR A
RIGHT FRONT B
LIFT PORT
LIFT RELIEF
RV1
STEER RELIEF
RV2
ORS
PRESSURE PORT
- TO PUMP -
ART_3286
Page 27
HIGH TORQUE
313 - YEL/BLK
DRIVE REVERSE
110 - GRY/BLK
HAND PUMP
BRAKE RELEASE
STEER RIGHT
107 - ORG/WHT
FRONT
COUNTERBALANCE
LEFT SIDE
MAIN RELIEF VALVE
Speed Level Seres - Servce & Parts Manual

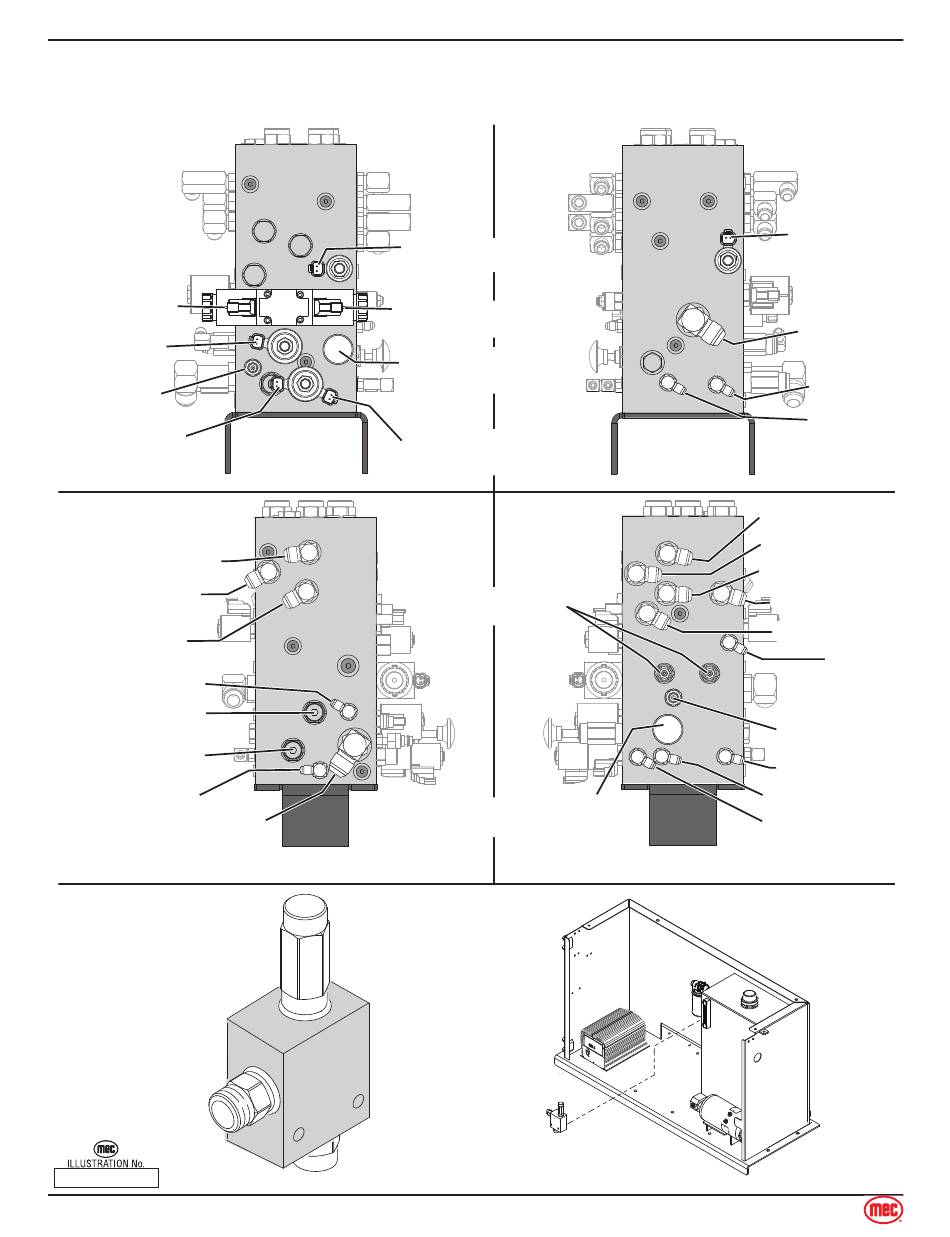

Hydraulic Manifold -
Alternate Configuration
VALVES
PULL VALVE
BRAKE RELEASE
REMOTE
Mounted
to rear wall of
controls module
January 2019
3084ES
HIGH SPEED
213 - YEL/WHT
TO TANK
ORLS
LINE SENSE
BACK
RIGHT FRONT A
LEFT FRONT B
RIGHT REAR B
LEFT REAR A
LEFT FRONT A
BRAKE PORT
GLS
STEER RIGHT
STEER LEFT
RIGHT SIDE
ORR
