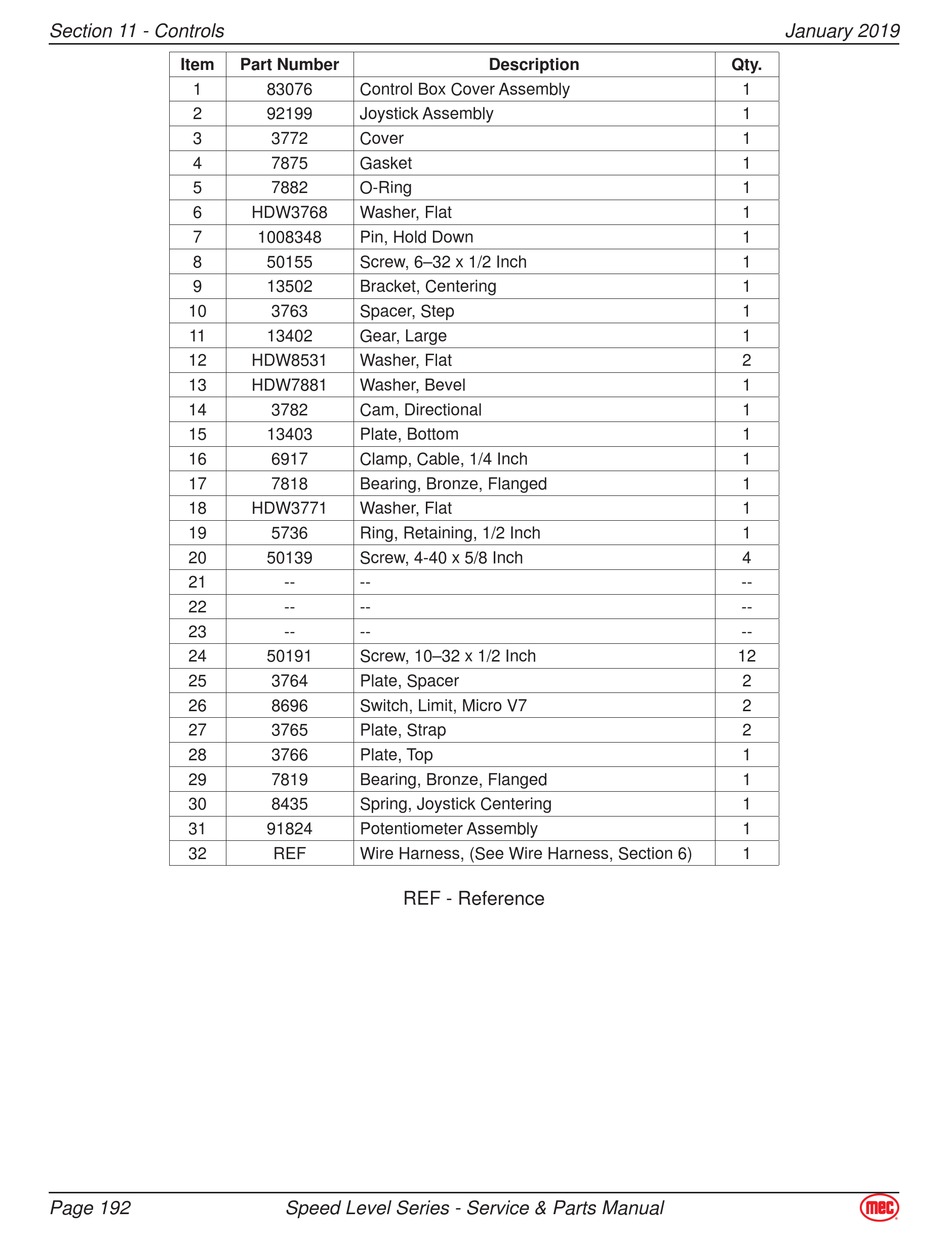

Mec Speed Level Series Service & Parts Manual page 199

Secton 11 - Controls
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
Page 192
Part Number
83076 Control Box Cover Assembly
92199 Joystick Assembly
3772 Cover
7875 Gasket
7882 O-Ring
HDW3768 Washer, Flat
1008348 Pin, Hold Down
50155 Screw, 6–32 x 1/2 Inch
13502 Bracket, Centering
3763 Spacer, Step
13402 Gear, Large
HDW8531 Washer, Flat
HDW7881 Washer, Bevel
3782 Cam, Directional
13403 Plate, Bottom
6917 Clamp, Cable, 1/4 Inch
7818 Bearing, Bronze, Flanged
HDW3771 Washer, Flat
5736 Ring, Retaining, 1/2 Inch
50139 Screw, 4-40 x 5/8 Inch
-- --
-- --
-- --
50191 Screw, 10–32 x 1/2 Inch
3764 Plate, Spacer
8696 Switch, Limit, Micro V7
3765 Plate, Strap
3766 Plate, Top
7819 Bearing, Bronze, Flanged
8435 Spring, Joystick Centering
91824 Potentiometer Assembly
REF Wire Harness, (See Wire Harness, Section 6)
REF - Reference
Speed Level Seres - Servce & Parts Manual
Description
January 2019
