Secton 7 - Mechancal System

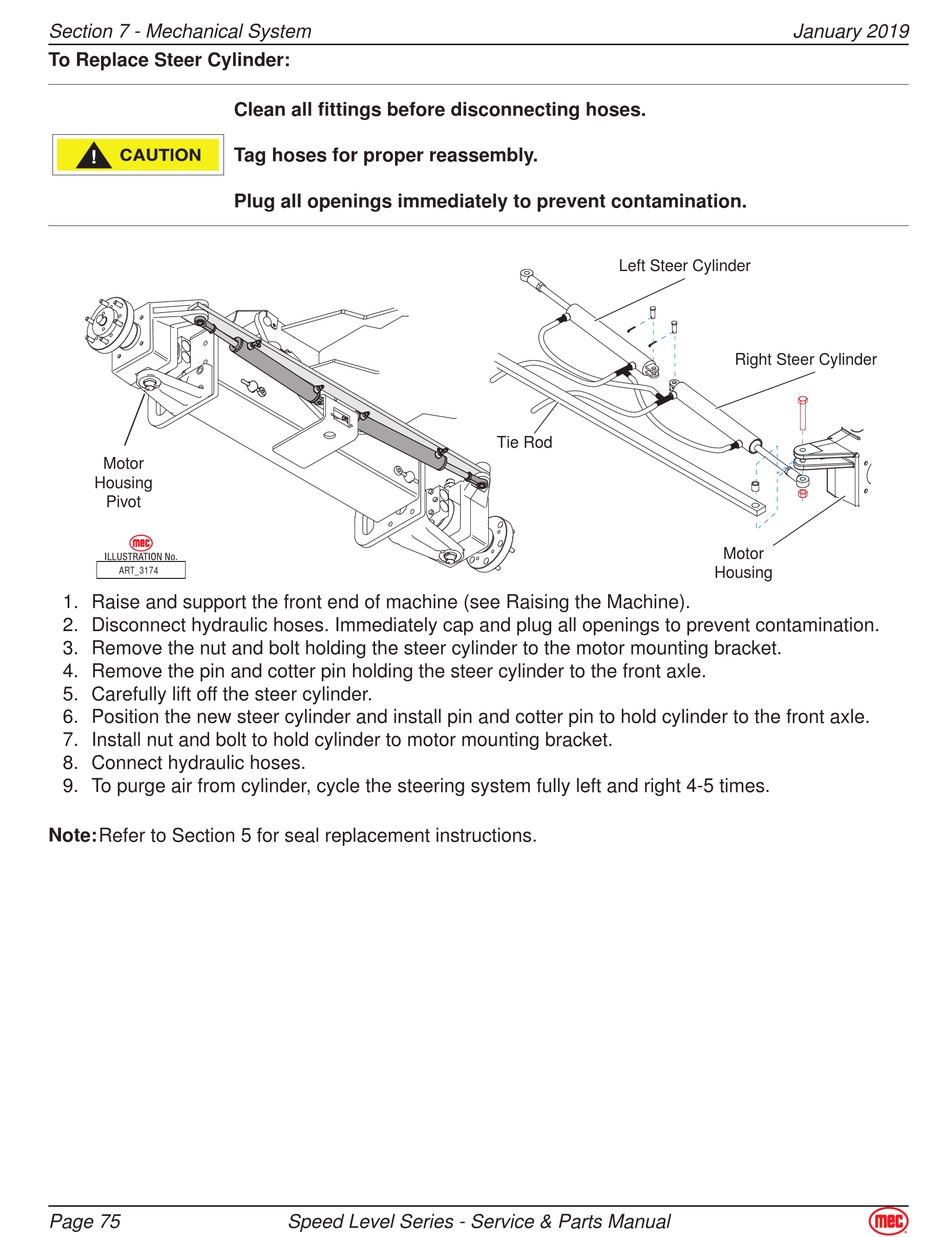

To Replace Steer Cylinder:
Steer
Relief
Valve
Motor
Housing
Pivot
ART_3174
1. Raise and support the front end of machine (see Raising the Machine).
2. Disconnect hydraulic hoses. Immediately cap and plug all openings to prevent contamination.
3. Remove the nut and bolt holding the steer cylinder to the motor mounting bracket.
4. Remove the pin and cotter pin holding the steer cylinder to the front axle.
5. Carefully lift off the steer cylinder.
6. Position the new steer cylinder and install pin and cotter pin to hold cylinder to the front axle.
7. Install nut and bolt to hold cylinder to motor mounting bracket.
8. Connect hydraulic hoses.
9. To purge air from cylinder, cycle the steering system fully left and right 4-5 times.
Note:Refer to Section 5 for seal replacement instructions.
Page 75
Clean all fittings before disconnecting hoses������
Tag hoses for proper reassembly������
Steer Left
Plug all openings immediately to prevent contamination������
GRN/RED
Speed Level Seres - Servce & Parts Manual
Steer
Control
Valves
Steer Right
ORG/WHT
Left Steer Cylinder
Tie Rod
January 2019
Steer
Left
Port
Steer
Right
Port
Right Steer Cylinder
Motor
Housing
