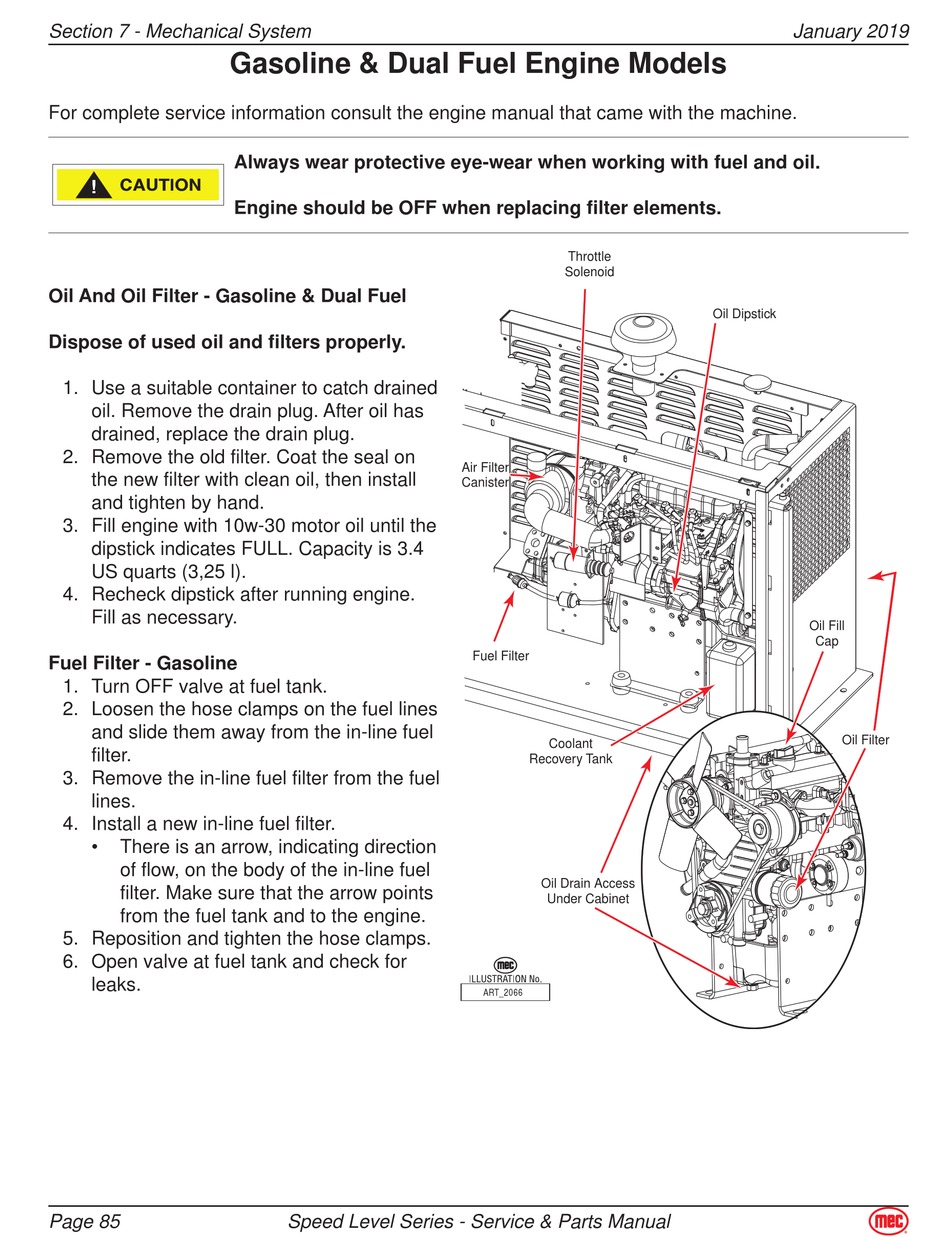

GasolNe & Dual Fuel EngNe Models - Mec Speed Level Series Service & Parts Manual

Secton 7 - Mechancal System
For complete service information consult the engine manual that came with the machine.
Oil And Oil Filter - Gasoline & Dual Fuel
Dispose of used oil and filters properly������
1. Use a suitable container to catch drained
oil. Remove the drain plug. After oil has
drained, replace the drain plug.
2. Remove the old filter. Coat the seal on
the new filter with clean oil, then install
and tighten by hand.
3. Fill engine with 10w-30 motor oil until the
dipstick indicates FULL. Capacity is 3.4
US quarts (3,25 l).
4. Recheck dipstick after running engine.
Fill as necessary.
Fuel Filter - Gasoline
1. Turn OFF valve at fuel tank.
2. Loosen the hose clamps on the fuel lines
and slide them away from the in-line fuel
filter.
3. Remove the in-line fuel filter from the fuel
lines.
4. Install a new in-line fuel filter.
• There is an arrow, indicating direction
of flow, on the body of the in-line fuel
filter. Make sure that the arrow points
from the fuel tank and to the engine.
5. Reposition and tighten the hose clamps.
6. Open valve at fuel tank and check for
leaks.
Page 85
Gasoline & Dual Fuel Engine Models
Always wear protective eye-wear when working with fuel and oil������
Engine should be OFF when replacing filter elements������
Speed Level Seres - Servce & Parts Manual
Throttle
Solenoid
Air Filter
Canister
Fuel Filter
Coolant
Recovery Tank
Oil Drain Access
Under Cabinet
ART_2066
January 2019
Oil Dipstick
Oil Fill
Cap
Oil Filter
