Mec Speed Level Series Service & Parts Manual page 172

Secton 10 - Schematcs

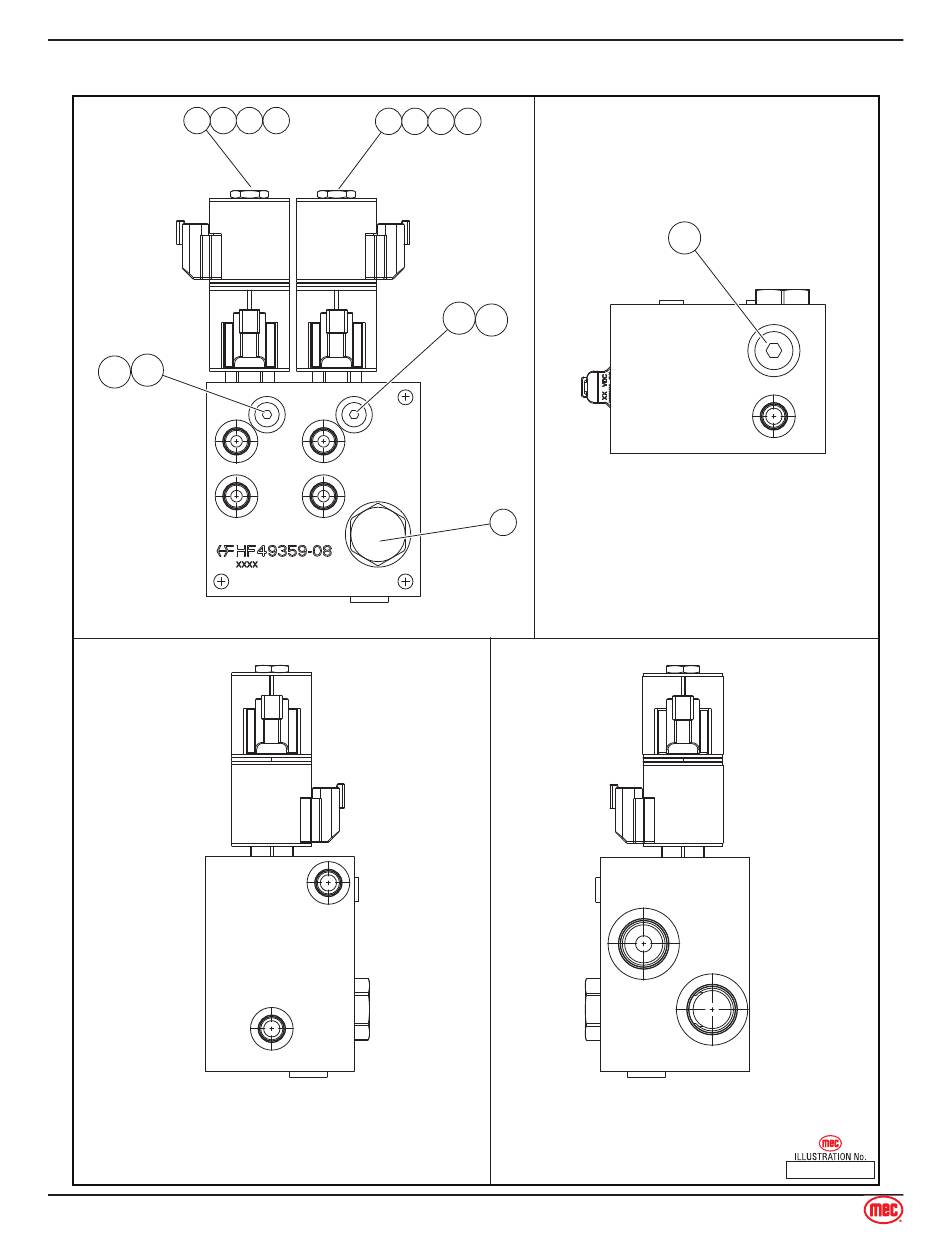

3084 All Models - Hydraulic Manifold Tilt M2
FRONT
CV3 SV9
PLG4 ORF4
LC1A
LC1B
LEFT
Page 165
CL1 CL1 CV4 SV8
LC2A
LC2B
P
LS
Speed Level Seres - Servce & Parts Manual
BOTTOM
CL1 CL1
ORF5
PLG4
CV5
RIGHT
All Models
January 2019
PLG8
OA
T2
T1
3084
ART_3111
