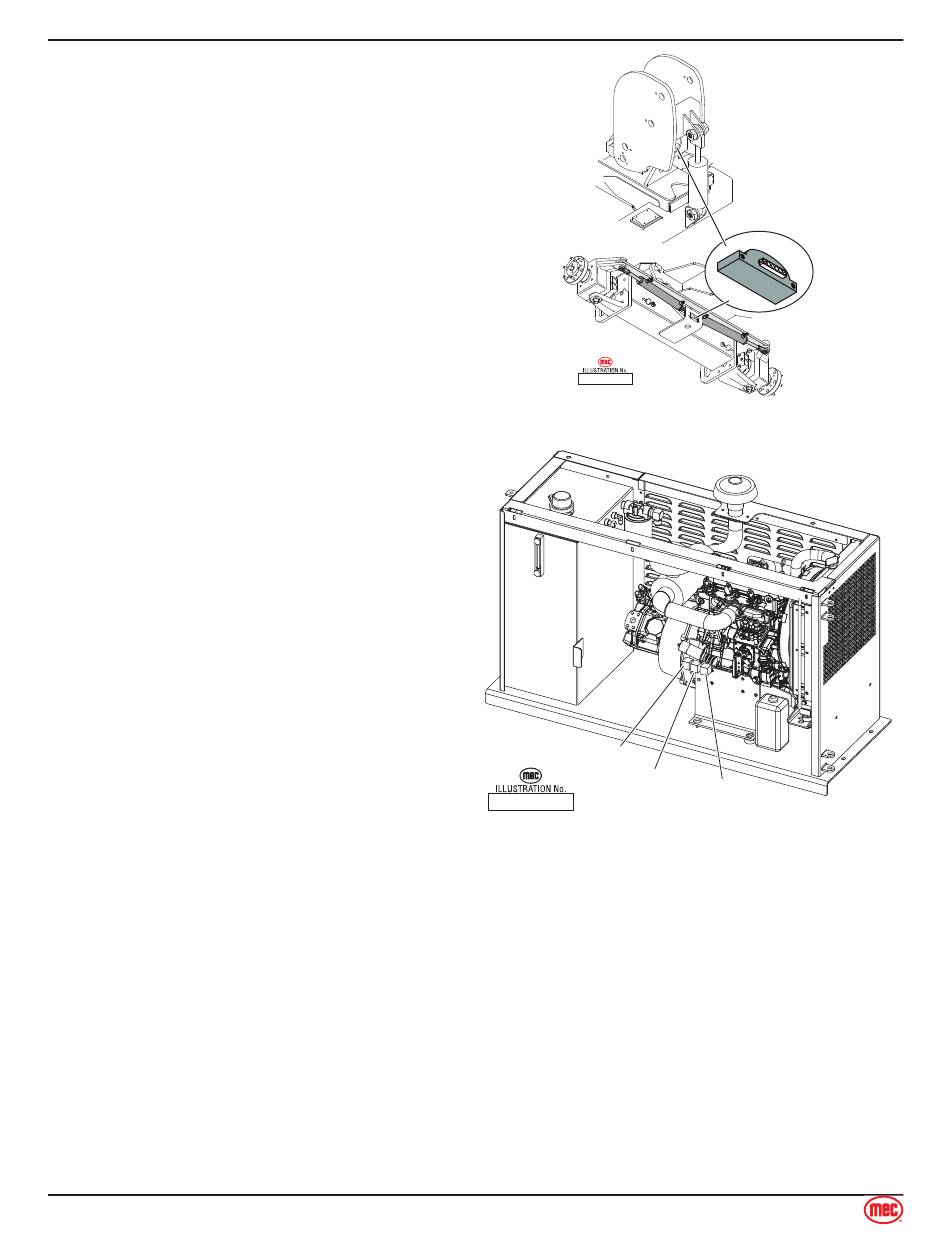

CAN Tilt Angle Transducer
Provides level information to GP400.
• Platform Level located on the mast
assembly, accessible through the rear of the
mast. Provides platform level information to
the GP400 through the CAN-bus system.
• Axle Level located on the front axle near the
steer cylinder mount. Provides axle position
information to the GP400 through the CAN-
bus system.
Relays - 3084RT Only
Relays are located on the engine inside the
power module. These relays reduce the current
flow through the GP400 Control Module.
Refer to the Section 10 for relay functions and
interconnect.
Start Relay
• Provides power to the starter solenoid.
Throttle Relay
• Provides power to the electric throttle
solenoid.
Preheat Relay (Diesel Only)
• Provides power to the diesel engine glow
plugs.
Page 53 Speed Level Seres - Servce & Parts Manual
ART_3224
Start
Throttle
ART_3223
(Diesel only)
January 2019
Preheat
