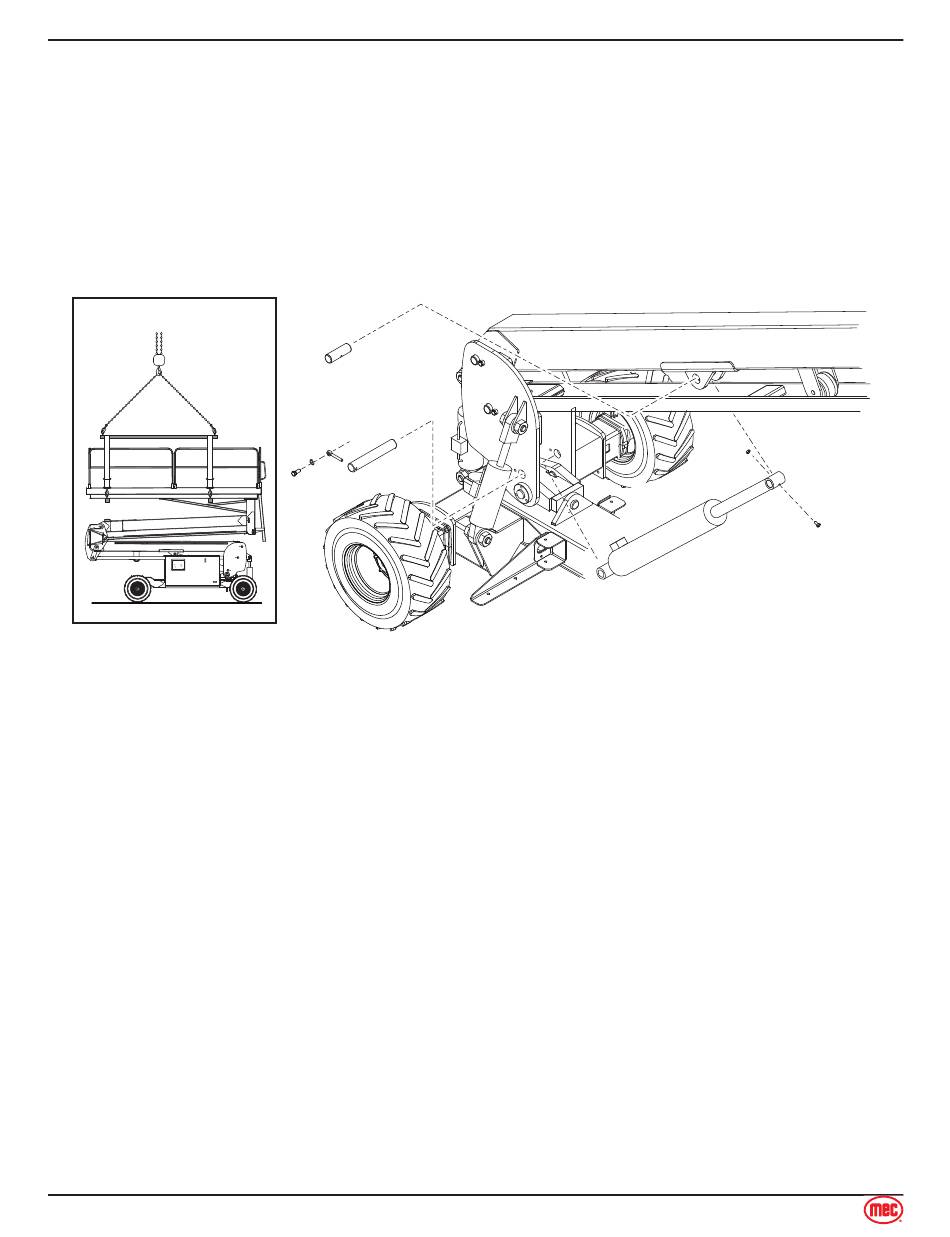

6. Remove the bolt and nut that secure the cylinder head to the mounting pin on the boom
assembly.
7. While supporting the cylinder, carefully remove the mounting pin and lower the cylinder to the
chassis.
8. Remove the bolt, lock washer and banjo pin from the lower mounting pin, then remove the
mounting pin.
9. Remove the cylinder.
10. Installation is reverse of removal.
Note:Apply one (1) drop of Loctite® to all bolts.
SUPPORT PLATFORM
