Upper Controls - 3084Rt Dual Fuel/DEsel - Mec Speed Level Series Service & Parts Manual

Secton 6 - Electrcal System
Upper Controls - 3084RT Dual Fuel/Diesel
Speed / Torque
7
Tilt Indicator 6
Lift / Drive 4
Start Switch 5
Steering 3
1
Joystick
2
Enable Bar

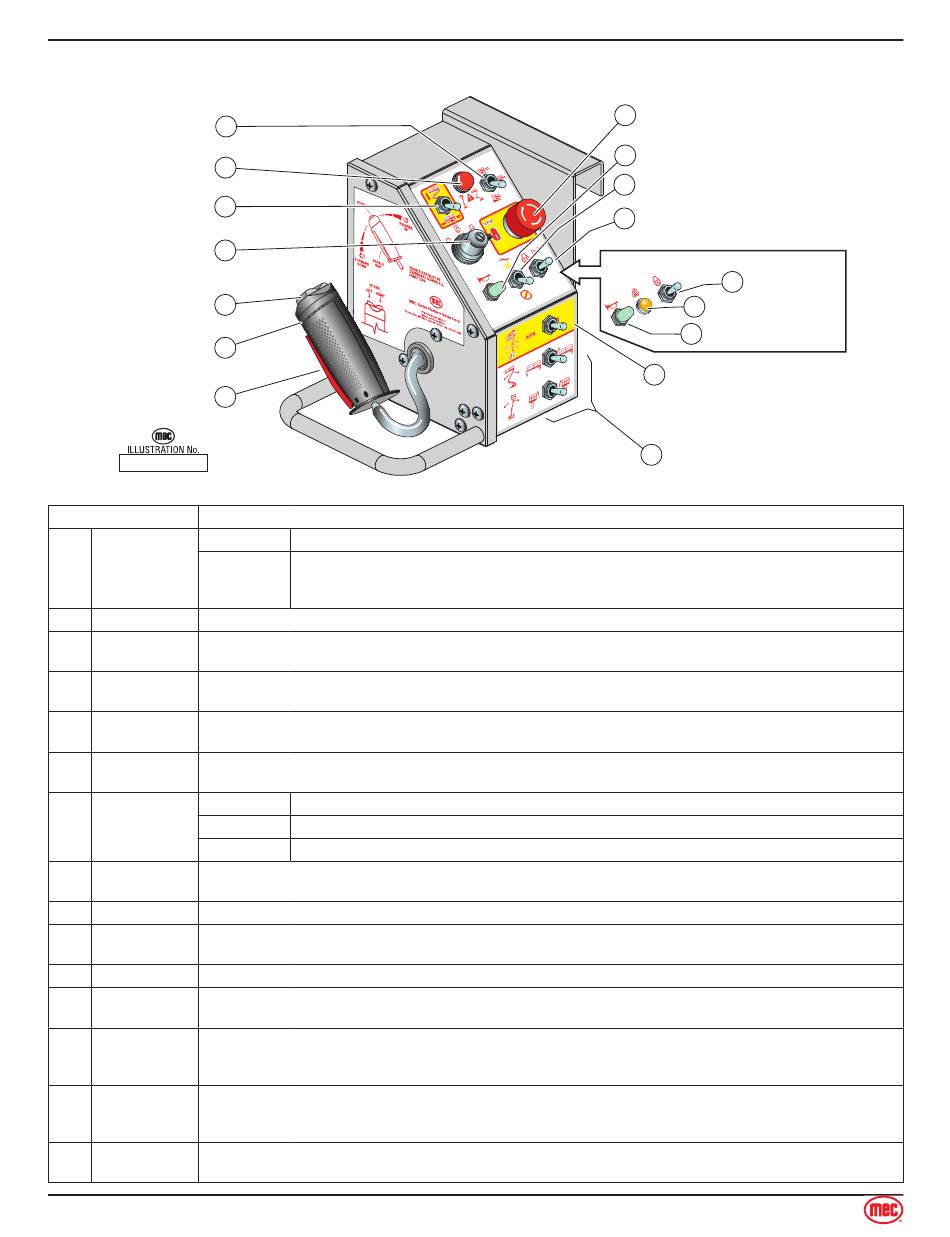

ART_3092
Control
Drive
1 Joystick
Lift
2 Enable Bar Squeeze to enable DRIVE, STEER, and LIFT from joystick.
Steering
3 Using thumb, press and hold the rocker switch to steer Left or Right.
Switch
Lift/drive
4 Select LIFT or DRIVE function for joystick.
Selector
Turn to start engine. Switch will return to RUN position for normal operation.
5 Start Switch
Turn to OFF to shut engine down. Anti-restart switch must be turned OFF before attempting to start.
Tilt Indicator
6 Light ON indicates platform out of level. Platform will not elevate when TILT light is ON.
Light
High Torque
Speed /
7 Mid Range
Torque Switch
High Speed
Emergency PUSH to stop all machine functions.
8
Stop Switch TURN CLOCKWISE to reset.
9 Choke/preheat Operate when starting in cold start conditions.
Generator
10 Turn switch ON to engage optional AC generator. Drive and Lift are disabled while the generator is on.
(Option)
11 Horn (Option) Press to sound warning horn.
Automatic Move switch DOWN and hold until automatic leveling is complete.
11
Level Switch Tilt Light will turn OFF when platform is level.
Manual Level
Move switch to the left to LOWER the front of the platform.
12 Switch Front
Move the switch to the right to RAISE the front of the platform.
To Rear
Manual Level
Move the switch to the left to move the platform to the LEFT.
13 Switch Side To
Move the switch to the right to move the platform to the RIGHT.
Side
Overload
14 Platform overloaded when light is ON. Alarms will sound in Upper and Lower Control boxes.
Indicator
Page 50
Controls Forward and Reverse travel at variable speeds.
Move toward operator to elevate platform. Lift speed increases proportional to the joystick
movement. Will not function if TILT light is ON.
Move away from operator to lower platform. Speed is fixed.
Slow speed. Provides maximum torque for rough terrain and climbing.
Mid speed. Provides medium torque for smooth to moderate terrain.
Provides high speed when platform height is below 10 feet (3 m).
Speed Level Seres - Servce & Parts Manual
Emergency Stop
8
11
Horn (Optional)
10
Generator (Option)
Preheat (Diesel)
9
Choke (Dual Fuel)
CE Models
14
11
12
Automatic Leveling
4 3
9 1 8
13 Manual Level Switches
Description
