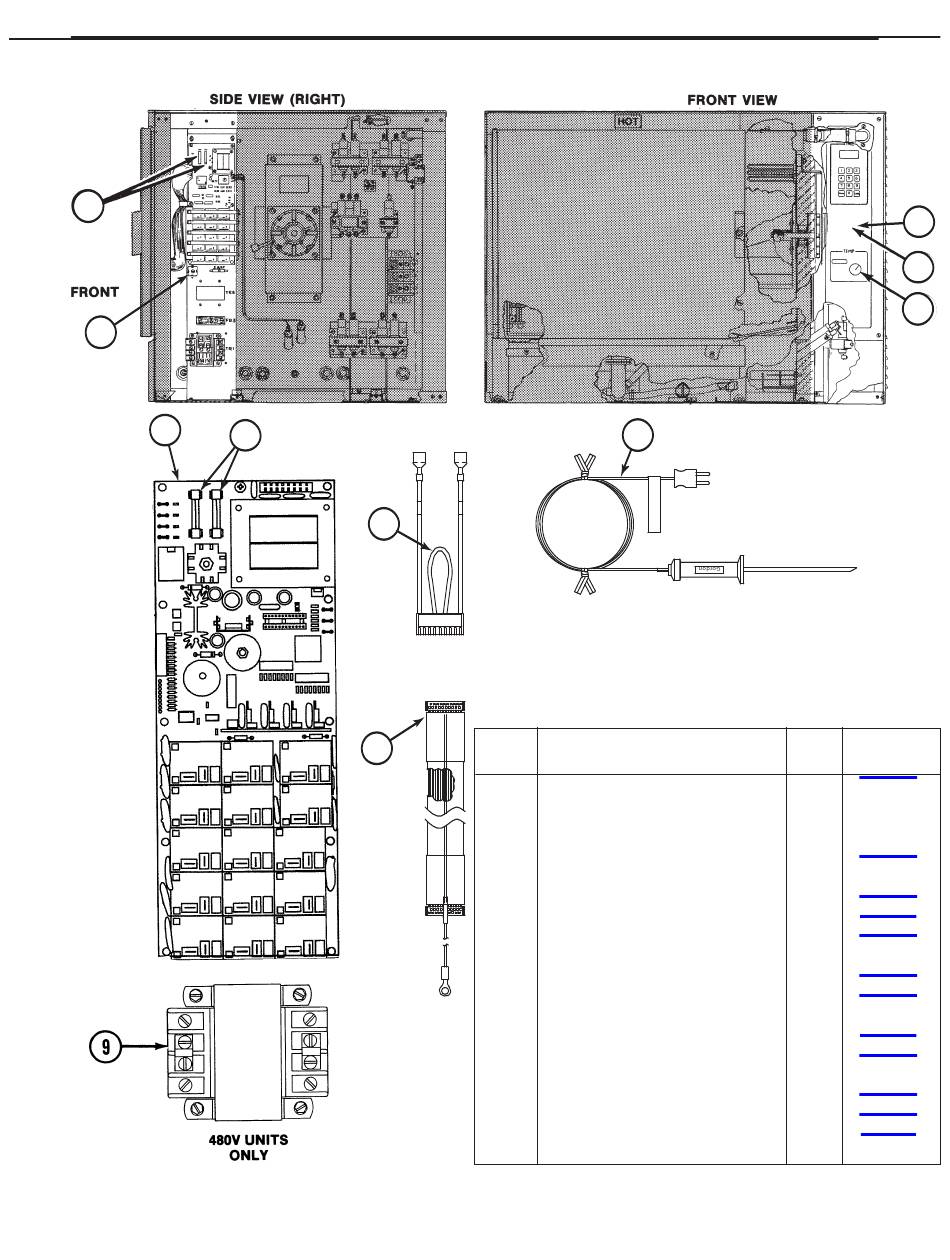

Figure 5. Control Panel, Relay Board and Transformer Assembly
11
Item
Description
1
Control Panel (Cook Only) ......
1
Control Panel (Cook, Hold
and Probe) ...........................
2
EPROM (Cook Only; Cook,
Hold and Probe)...................
1
Control Panel
(Programmable) ...................
2
EPROM (Programmable) ........
3
Fuse 0.5 Amp, Slow Blow .......
4
Relay Board ............................
5
Control Panel Knob .................
6
Voltage Plug ............................
7
Flexible Cable with Grounded
Shield ...................................
8
Transformer 100 VA ................
9
Transformer 50 VA (480 volt
units only) ............................
10
Bridge Rectifier........................
11
Meat Probe..............................
* EPROM must be ordered with the control panel.
C/2-E
Parts List
1
2
5
Part
Qty.
No.
1
124808
1
124309
1
120749
1
124815
1
118809
2
087947
1
112964
1
073430
1
106826
1
114423
1
077838
1
099294
1
071487
1
111385
(Revised 1/02)
