Single Oven - Groen CC20-E Operator's Manual

CC10-G
Parts List
Item Description
- Water Inlet Valve, 2-Way,
Triple Type . . . . . . . . . . . . . . .
2 Steam Hose, 18" Lg . . . . . . . .
3 Steam Hose, 2" Lg . . . . . . . .
4 Hose (Upper Unit on a Double
Stack) . . . . . . . . . . . . . . . . . . .
4 Hose (Lower Unit on a Double
Stack, and Single Oven) . . . .
5 Water Fill Hose, 29-114" Lg . .
6 Condensate Tube,
28-1/2" Lg . . . . . . . . . . . . . . . .
7 Radiator Hose, 1-1/2" ID X
2-1/2" Lg . . . . . . . . . . . . . . . . .
8 Drain Elbow Assembly . . . . . .
Drain Seal . . . . . . . . . . . . . . .
9 Valve and Bracket Assembly .
10 • Drain Valve . . . . . . . . . . . . .
11 • Silicone Tube (Shorts . . . . . .
12 • Silicone Tube (Long) . . . . . .
13 • Low Pressure Hose Clamp .
14 • Drain Pipe . . . . . . . . . . . . . .
15 • Aluminum Clamp, 1/2" . . . . .
16 • Bracket . . . . . . . . . . . . . . . .
17 Boiler Assembly
18 Insulation . . . . . . . . . . . . . . . .
19 Hose Clamp . . . . . . . . . . . . . .
20 Cap Assembly . . . . . . . . . . . .
21 Clamps . . . . . . . . . . . . . . . . . .
22 Hose, 1-3/4" dia. X 2-112" Lg .
23 Vacuum Breaker . . . . . . . . . . .
After Serial #GC13230
24 Thermal Harness Switch . . . .
25 Hi-Limit Thermal Switch . . . . .
26 Back Panel . . . . . . . . . . . . . . .
27 Flow Restrictor . . . . . . . . . . . .
* Not Shown
4-34
Qty.
1 090827
1 088000
1 087999
1 092111
1 092113
1 087919
1 081626
1 073254
1 072159
1 072128
1 087917
1 071234
1 085148
1 085149
2 071271
1 085147
1 087941
1 085170
. . . . . . . . . . 1 093437
1 087940
4 073259
1 087931
2 073259
1 087952
1 090787
1 098645
1 096892
1 085108
1 088877

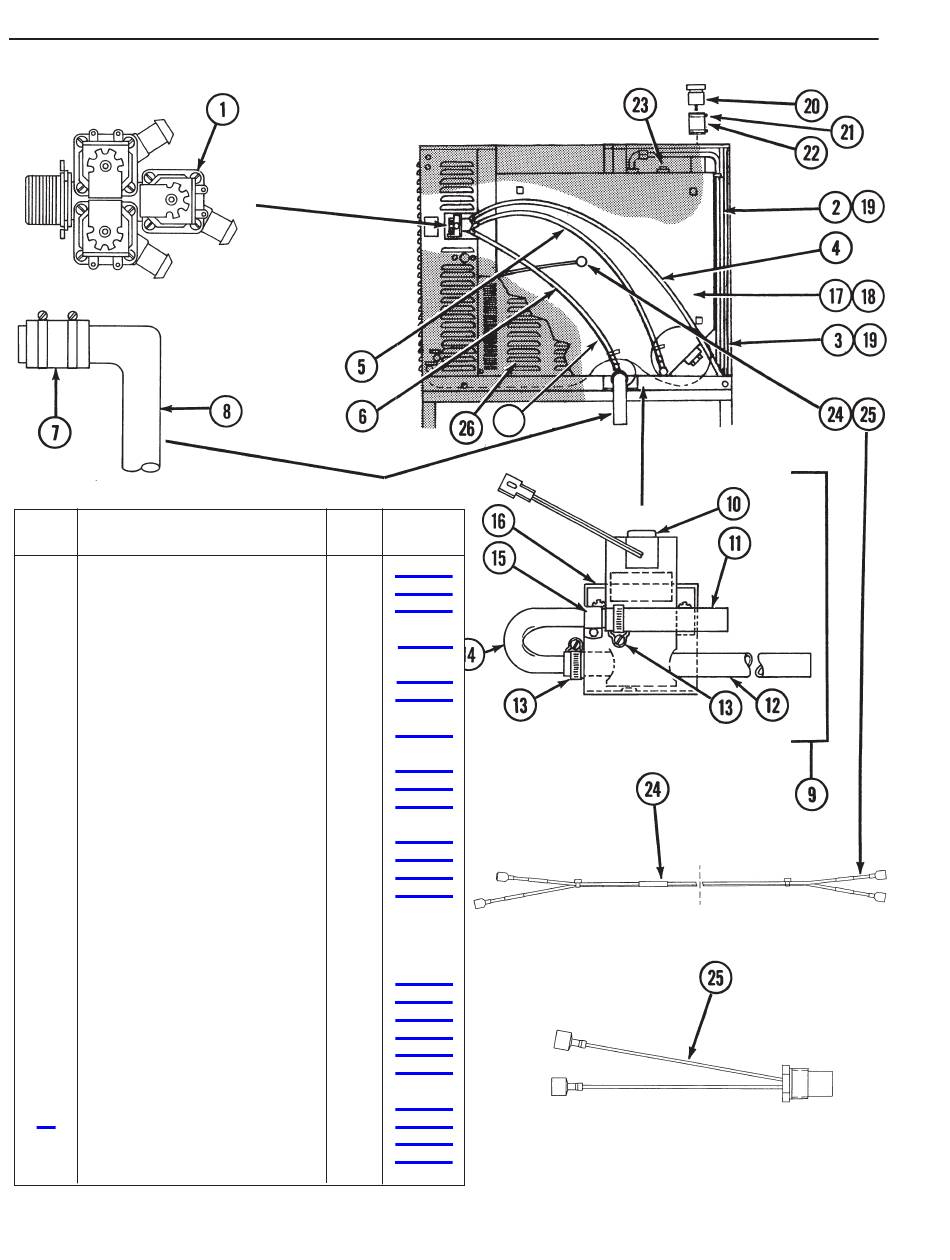

Figure 10. Water Inlet and Drain
27
Part
No.
(Revised 1/02)
