(Revised 1/02)

Door Switches

General
The following removal and installation instructions are for the active left
and right hand door switches. The left side door switch is active when the
door hinge is on the right hand side of the oven. The right side door switch
is active when the door hinge is on the left hand side of the oven.
Be sure oven is disconnected from branch circuit power
before performing any repair work.
Right Side Door Switch
Removal
CC10-E
1. Turn off oven power and disconnect oven from the branch circuit.
2. Remove door bullet (see page 8-36) and the two screws above and
below the bullet.
To prevent front cover from tilting forward during L-cover removal,
leave one screw installed at top of the front cover.
3. Remove right side cover and L-cover.
4. Disconnect door switch wires from the relay board.
5. Remove control panel. See page 8-23.
6. Remove drip tray.
7. Remove front cover from cover mounting bracket.
8. Pull front cover to the right to expose door switch. If oven is mounted
on a table, you may have to break the silicone seal.
CC20-E, CC10-G, and CC20-G
1. Turn off oven power and disconnect oven from the branch circuit.
2. Remove the right side cover.
3. Remove control panel. See page 8-23.

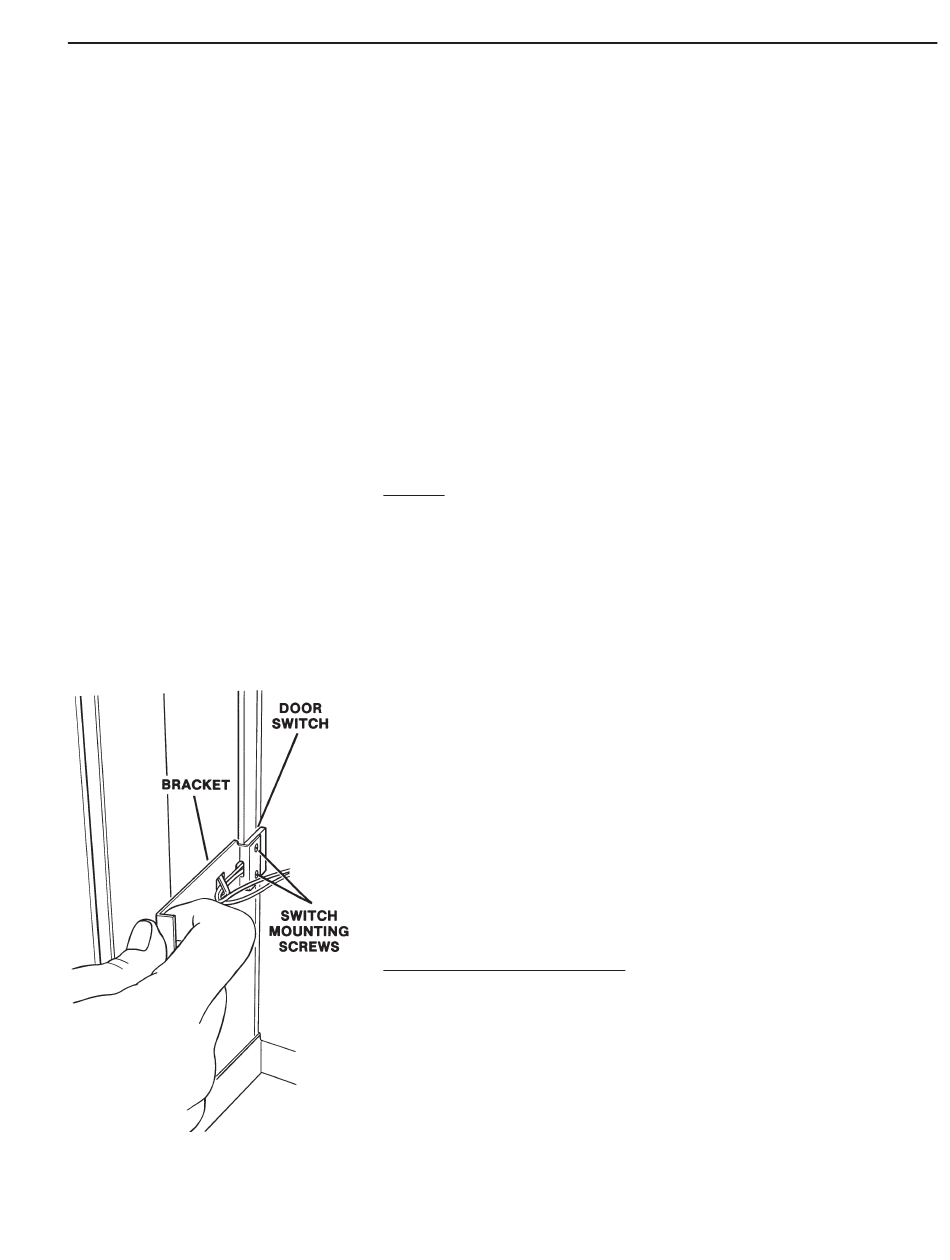

4. Slowly pull door switch assembly until bracket clears the oven.
5. Disconnect door switch wires from the relay board.
6. Remove door switch from bracket.
Maintenance
Replacement Procedures
WARNING
IMPORTANT
8-37
