CC10-G
Parts List
4-26
Item
1
Bracket Assy ...........................
2
Motor & Heat Stinger Assy......
3
Key, 1/8" Square 303 S.S. ......
4
Insulation Retainer Assy..........
5
Insulation Nut Plate .................
6
Motor Seal Assy ......................
• Washer Seal Housing ...........
• Packing ................................
• Motor Shaft Housing Seal.....
7
Washer, Fiber .........................
8
Screw, Truss Head S.S. ..........
9
Wheel Blower .........................
10
Washer, Flat ...........................
11
Washer, Lock .........................
12
Screw, Hex Head Cap S.S......
13
Kit Fan Isolator ........................
* Not Shown

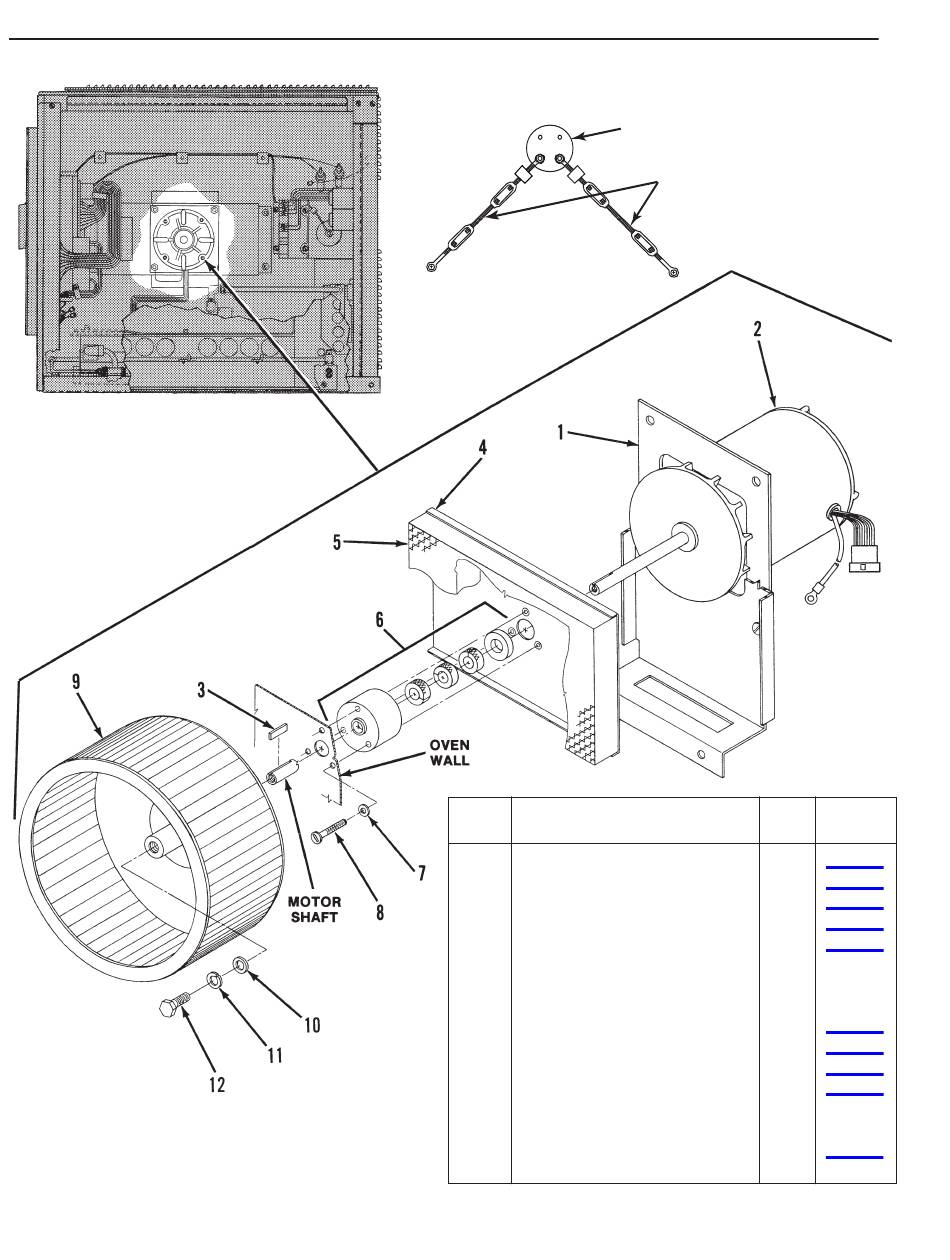

Figure 2. Fan and Motor
MOTOR
13
Description
Qty.
1
1
1
1
1
1
1
3
1
3
3
1
1
1
1
1
Part
No.
070100
090760
071288
071228
069770
071299
070458
070459
070457
071300
081698
085080
059228
05656
05613
104295
(Revised 1/02)
