Pilot Burner
Be sure oven is disconnected from branch circuit power
before performing any repair work.
Removal
1. Turn off main gas supply. Turn off oven power and disconnect oven from
the branch circuit.
2. Remove right side cover.

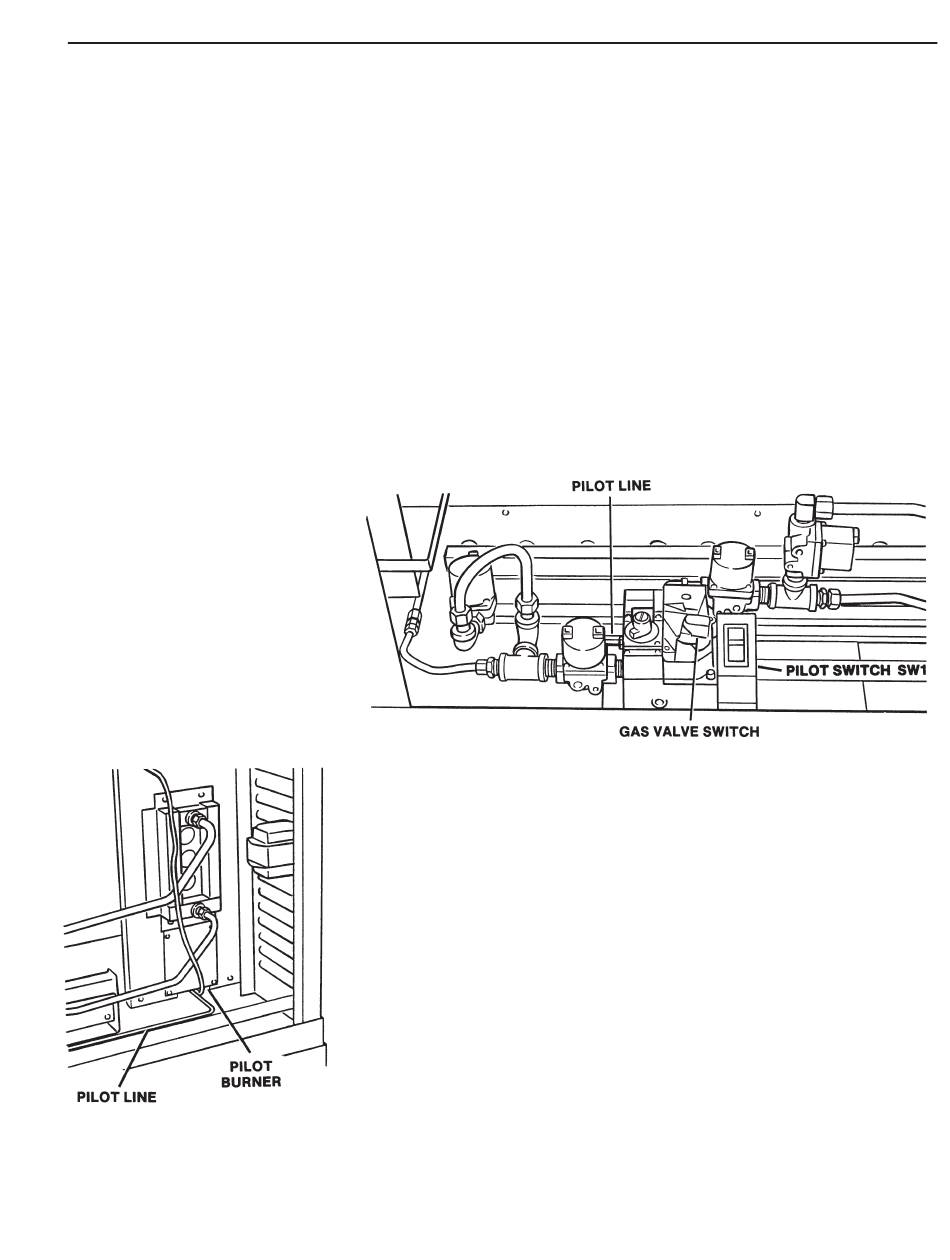

3. Place main gas valve switch in the OFF position. Place pilot switch SW1
in the OFF position.
4. Disconnect pilot line from the main gas valve.
5. Disconnect "spark" lead from igniter module and pilot burner.
6. Remove pilot burner.
Installation
1. Apply anti-seize lubricant to mounting screw threads. Install pilot burner
and tighten mounting screws.
2. Route pilot line away from oven manifold shield. Connect pilot line
to the main gas valve.
Route the "spark" lead away from the manifold to help prevent improper
oven operation.
3. Connect the "spark" lead to the igniter module and pilot burner. Be sure to
route the lead around the outside of the gas lines.
4. Place main gas valve switch in the ON position.
5. Install right side cover.
6. Connect oven to the branch circuit.
Maintenance
Replacement Procedures
