Groen CC20-E Operator's Manual page 138

CC10-G
Parts List
13
Item Description
1 Auto Clean Tank ........................
2 0-Ring, 1-3/8 X 2 X 3/16 ...........
3 Screw, 3/8" Truss Head.............
4 Filler Cap ...................................
5 Elbow 900, 3/8-18NPT ..............
6 Close Nipple, 3/8-18NPT ..........
7 Eductor,1/2-14NPT....................
8 Male Adapter, 1/2-14NPT X
1/2 Hose ....................................
9 Male Adapter, 90°......................
10 Nipple, 1/2-14NPT X 1-1/2
Lg ..............................................
4-36
17
FROM
WATER
9
VALVE
Part
Qty. No.
1 086452
3 092102
1 005764
1 086468
2 086490
2 086493
2 086460
2 092104
2 086489
5 086495

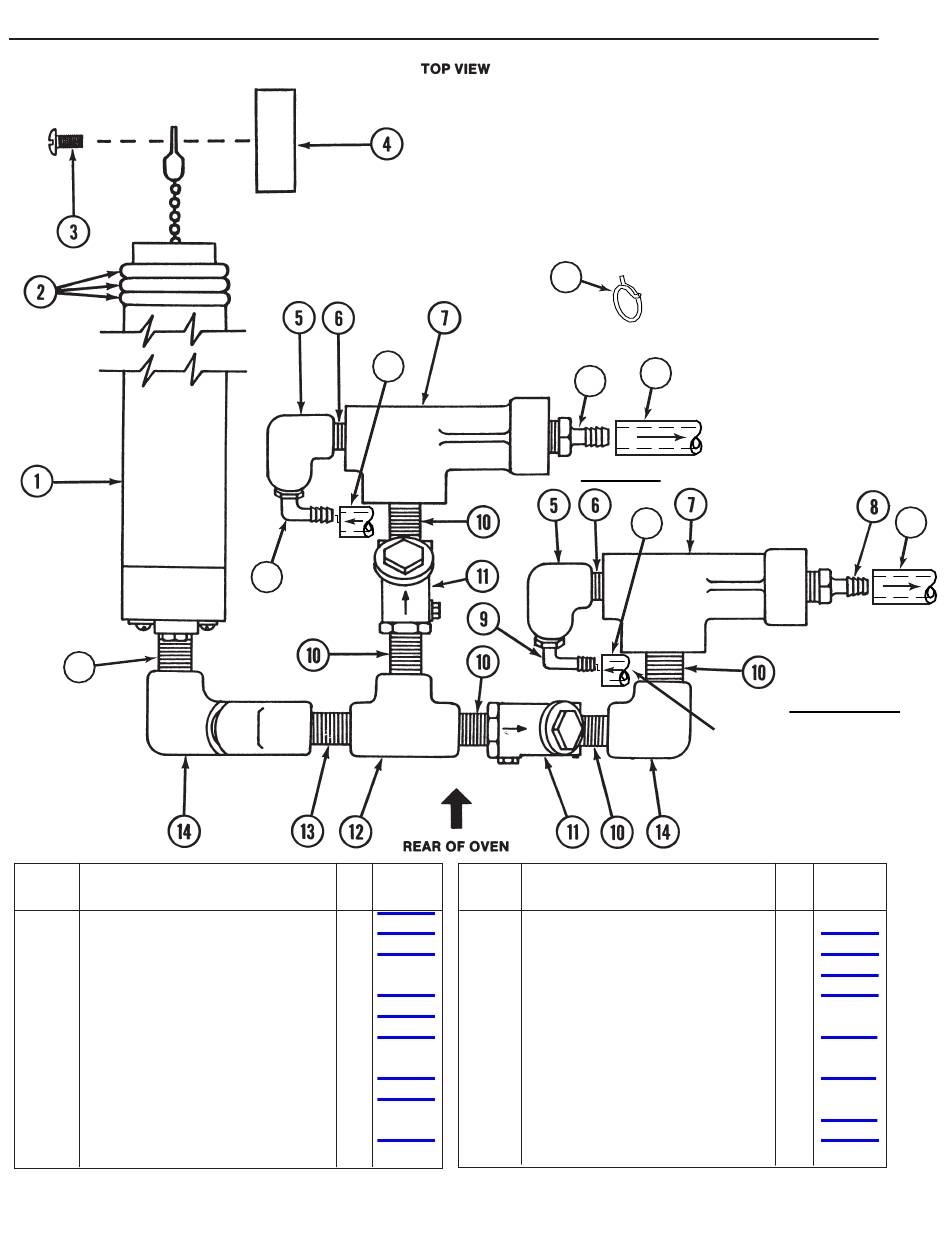

Figure 12. Auto Clean Double Stack
Piping Assembly
19
15
8
TOP CAVITY
18
Item Description
11 Swing Check Valve,
1/2-14NPT ...............................
12 Tee, 1/2-14NPT .......................
13 Nipple, 1/2-14NPT X 2 Lg .......
14 Elbow 900,1/2-14NPT .............
15 Hose Top Cavity to Boiler........
16 Hose Bottom Cavity to Boiler ..
17 Hose Top Cavity from
Water Valve .............................
18 Hose Bottom Cavity from
Water Valve .............................
19 Hose Clamps...........................
TO
BOILER
TO
BOILER
BOTTOM CAVITY
FROM
WATER
VALVE
Part
Qty. No.
2 086461
1 086491
2 086496
2 086494
1 092112
1 092114
1 092111
1 092113
8 092121
(Revised 1/02)
