CC20-G
Parts List
Item
Description
Prior to Serial No. GC7243MS
1
Control Panel (Retrofit Kit) ........ 1
Starting at Serial No. GC7243MS
2
Fuse, 0.5 Amp., Slow Blow ....... 2
1*
Control Panel (All Models) ........ 1
*
EPROM .................................... 1
5-32
Part
Qty.
No.
112976
087947
112960
112956

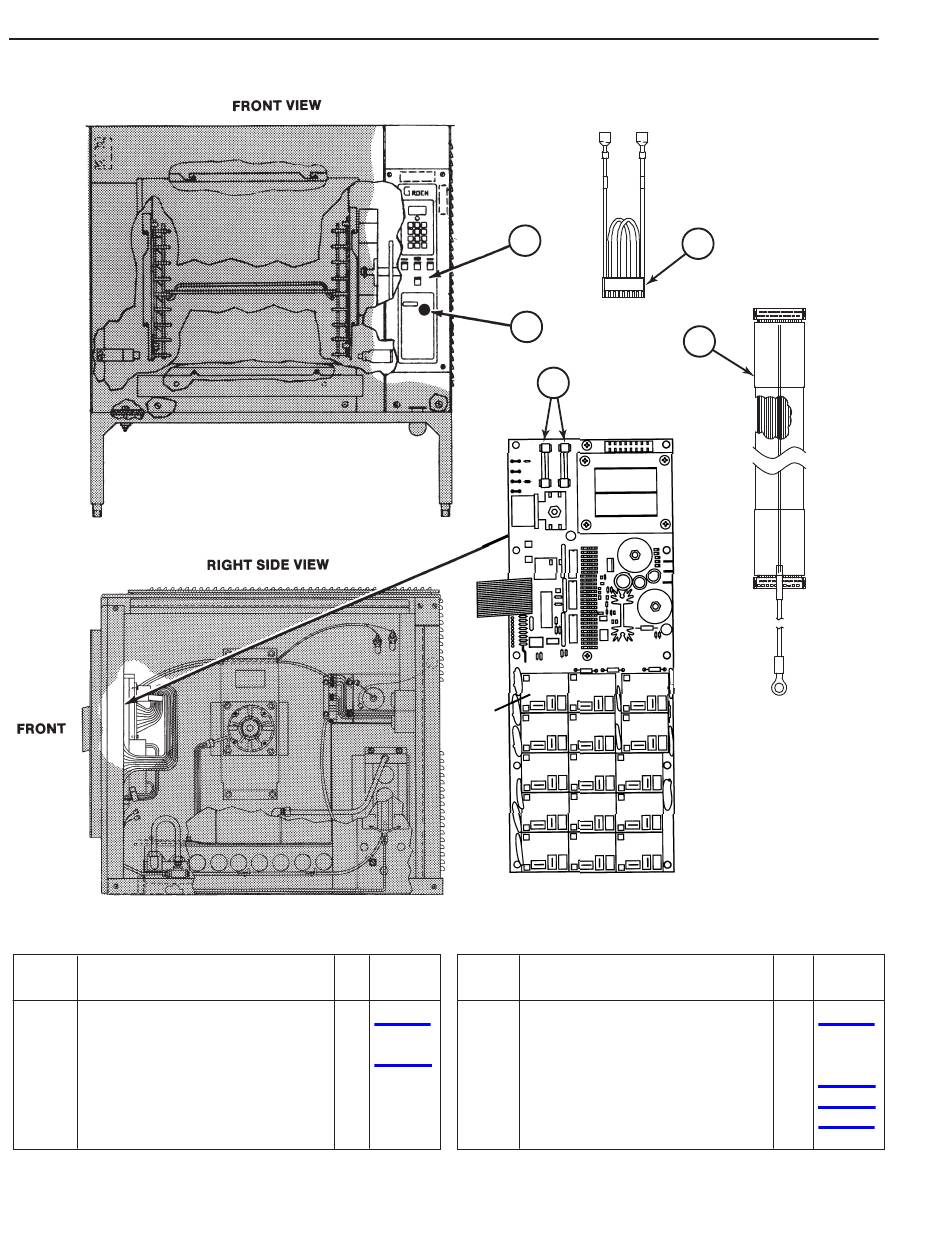

Figure 8. Control Panel and Relay Board
1
6
2
RELAYS
K1-K15
Item
Description
Prior to Serial No. GC7243MS
4
Relay Board (Retrofit Kit) ........
Starting at Serial No. GC7243MS
4
Relay Board ............................
6
Control Panel Knob.................
7
Voltage Plug ............................
8
Flex Cable ...............................
* EPROM must be ordered with control panel.
7
8
Part
Qty.
No.
1
112976
1
112964
1
073430
1
109334
1
114423
(Revised 1/02)
