Main Gas Valve Removal
12. Remove main gas valve from its mounting bracket.
13. Remove SV2, SV3, and SV4 from main gas valve.
14. Remove face bushing from old main gas valve. Remove pipe plug
from new main gas valve and install face bushing from old main gas
valve in its place.
Installation
1. Install SV2, SV3, and SV4. Attach main gas valve to valve mounting
bracket and tighten mounting screws.

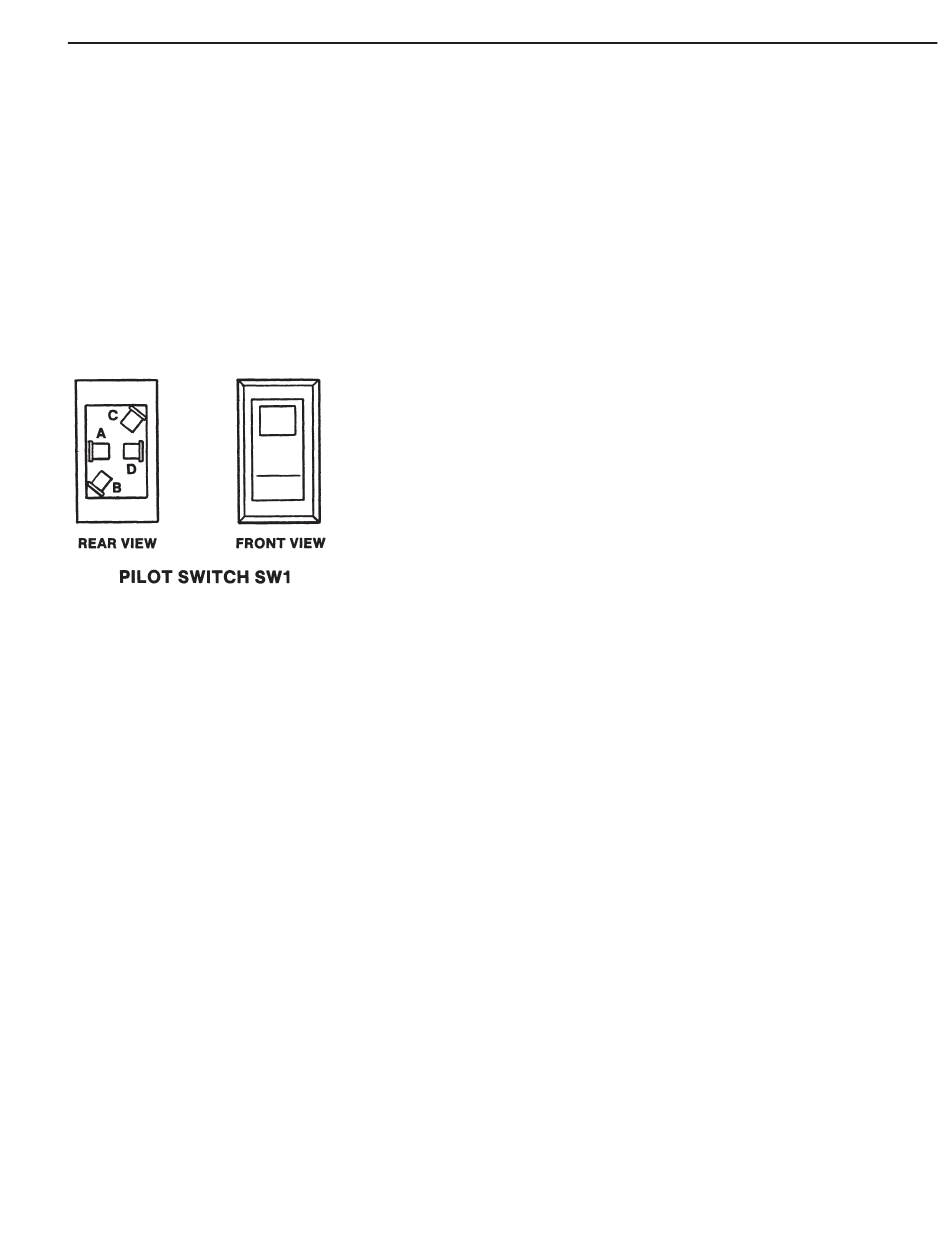

2. Attach electrical leads to pilot switch SW1.
3. Install the valve and mounting bracket assembly in the oven
and tighten mounting screws.
4. Install oven manifold line.
5. Connect pilot runner tube to the main gas valve.
6. Connect pilot line to the main gas valve. Connect the two boiler
manifold gas lines.
7. Connect the electrical leads to the three gas valves (SV2, SV3, and
SV4) and to the main gas valve.
8. Connect gas supply line to the oven, and turn on oven gas supply.
9. Place main gas valve switch in the ON position.
10. Connect oven to the branch circuit. Turn on main gas supply.
11. Turn on pilot switch SW1. Check for gas leaks.
12. Verify gas pressure setting as listed on rating plate located on sliding
door at right side panel.
13. Check pilot flame adjustment. See page 8-10.
14. Install right side cover.
Maintenance
Replacement Procedures
(continued)
