Groen CC20-E Operator's Manual page 172

CC20-G
Parts List
7
Item Description
1 Auto Clean Water Valve
Harness .................................
2 Water Inlet Valve Harness ......
3 Water Inlet Valve, 2-Way,
Triple Type .............................
4 Water Fill Hose, 29-1/4" Lg ....
5 Steam Hose, 21.5" Lg ............
6 Condensate Hose, 318" I D X
35" Lg .....................................
7 Drain Valve Harness ..............
8 Drain Valve ............................
9 Silicone Tube ..........................
10 Drain Hose .............................
11 Drain Elbow Assembly............
12 Drain Tube Assembly..............
5-34
6
23 22
Part
Qty. No.
1 090769
1 090706
1 090827
1 087919
1 090743
1 077995
1 090770
1 071234
1 090741
1 080688
1 092273
1 090739

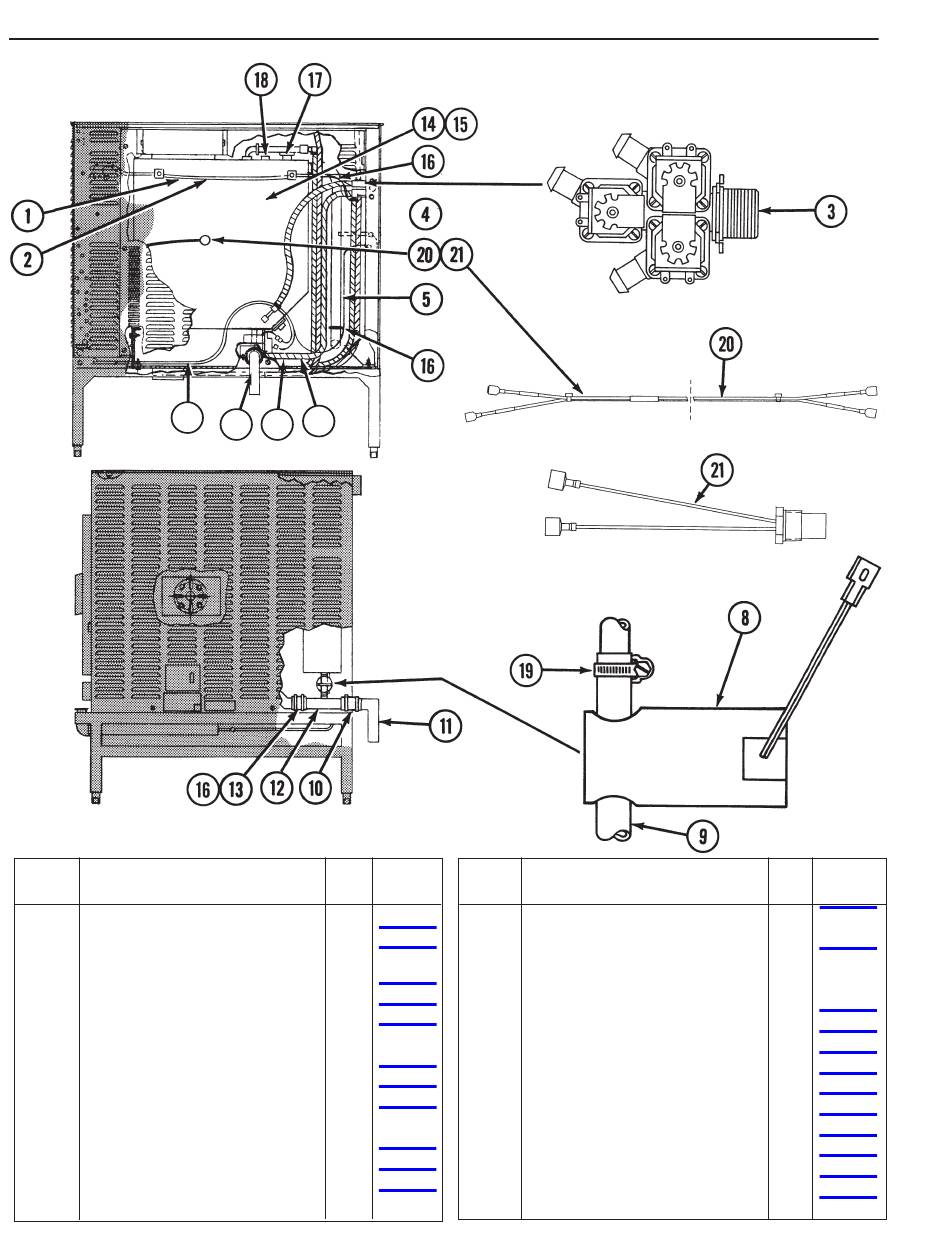

Figure 10. Water Inlet and Drain
Item Description
13 Drain Tube, 2" Lg ...................
Prior to Serial #GC14501
14 Boiler Kit Assembly .................
(Natural and Propane Gash
After Serial #GC14501
14 Boiler Assembly with Pins.......
15 Boiler Insulation ......................
16 Hose Clamp ............................
17 Cap..........................................
18 Vacuum Breaker .....................
19 Drain Hose Clamp...................
20 Thermal Switch Harness.........
21 Hi-Limit Thermal Switch ..........
22 Flow Restrictor ........................
23 Spray Nozzle...........................
Part
Qty. No.
1 090742
1 098650
1 098650
1 087940
4 013613
1 090897
1 090787
2 071271
1 098645
1 096892
1 088877
1 081670
(Revised 1/02)
