Maintenance
Replacement Procedures

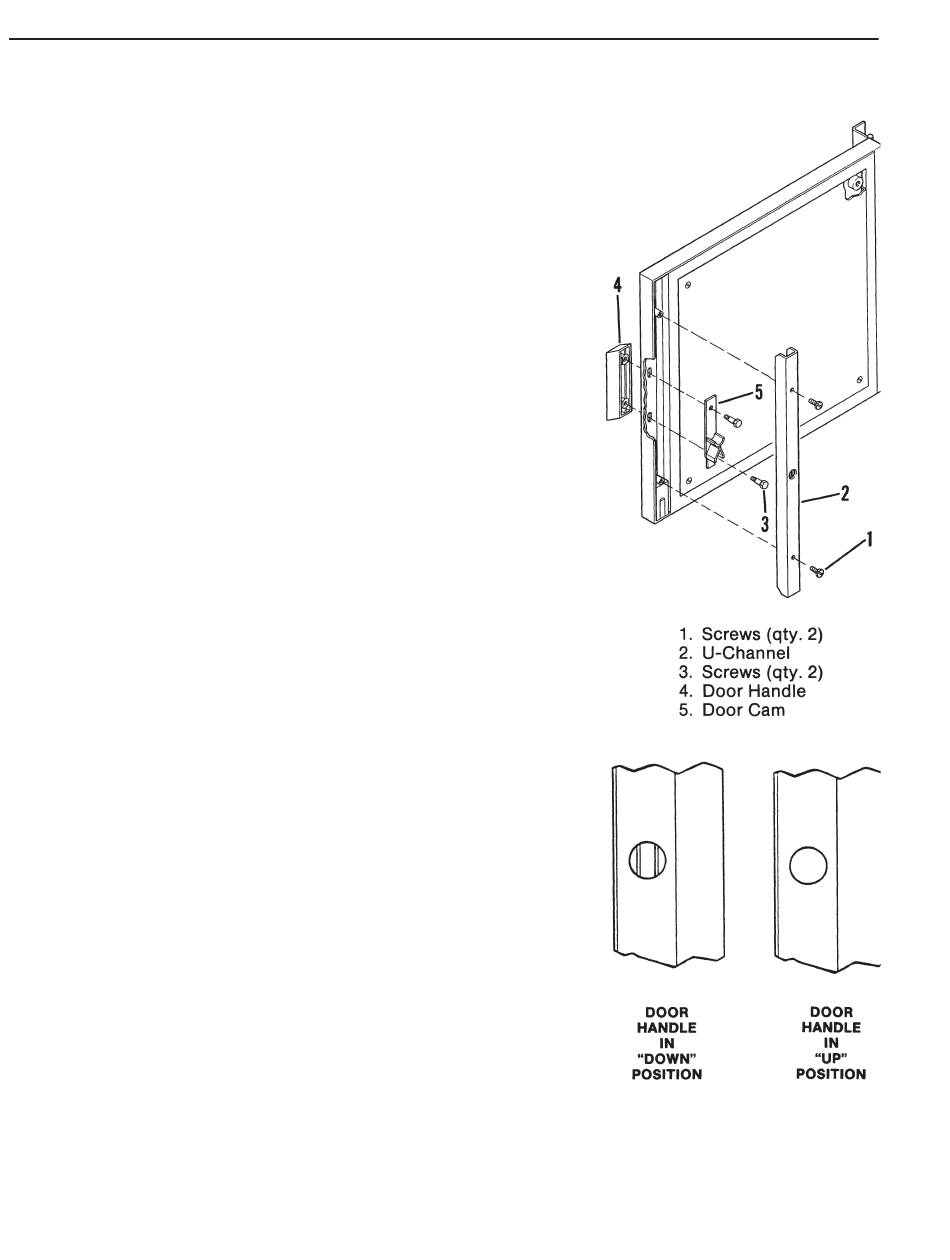

Door Handle and Door Cam
1. Turn off oven power.
2. Allow oven to cool.
3. Remove screws (1) and U-channel (2) from the door.
4. Remove screws (3), door handle (4), and cam (5).
Installation
1. Apply a high temperature (1800°F) anti-seize and lubricating
compound to the door cam (5) and Loctite 242 to screw (3) threads.
2. Assemble door cam (5) to handle (4) with screws (3).
3. Be sure door handle is in the down position. Hold U-channel
door spring open with a screwdriver or similar tool, then install
the U-channel (2). Do not install screws (1) at this time.
4. Check operation of the cam and door spring. Push up on the
door handle and check if spring opens. If the spring does not
open, the cam and spring are not correctly aligned and the
problem must be corrected.
5. Apply a light amount of Loctite 242 to screws (1), then install
screws (1).
