Air Heating Element (Electric Units Only)
Be sure oven is disconnected from branch circuit
power before performing any repair work.
Removal
CC10-E
1. Turn off oven power and disconnect oven from the branch circuit.
2. Remove right side panel.
3. Be sure wire identification is legible, then disconnect electrical wires
from both sides of heater to be replaced. If wire ID is not legible,
identify and mark wires before disconnecting them.
4. Remove center and right side racks from oven chamber.
5. Remove heater mounting hardware (nut, flat washer, fiber washer)
from each end of heater element. Discard fiber washers. Be careful
not to damage the insulation. Use a 3/4 inch deep socket, 1/2 inch
drive.
6. Remove heater from oven chamber.
CC20-E (Prior to Serial No. C10129MC)
1. Turn off oven power and disconnect oven from the branch circuit.
2. Remove back panel.
3. Be sure wire identification is legible, then disconnect electrical wires
from both sides of heater to be replaced. If wire ID is not legible,
identify and mark wires before disconnecting them.

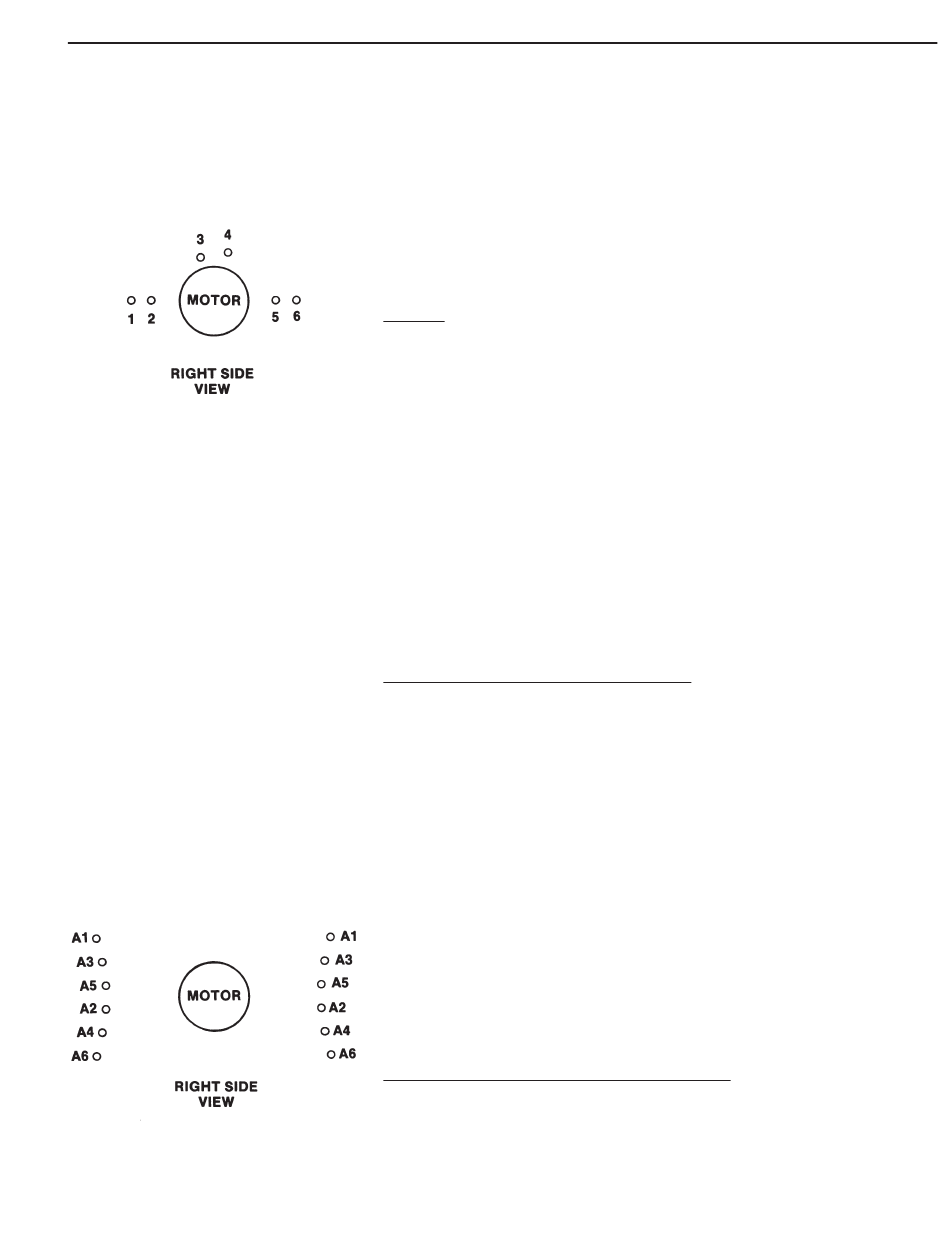

4. Disconnect wires A1 through A6.
5. Remove heater mounting hardware (nut, flat washer, fiber washer)
from both ends of heater element being replaced. Discard fiber
washers. Be careful not to damage the insulation. Use a 1-1/16 inch
deep socket, 1/2 inch drive.
6. Remove heater element bracket from inside oven.
7. Remove heater from oven chamber.
CC20-E (Starting with Serial No. C10129MC)
1. Turn off oven power and disconnect oven from the branch circuit.
2. Remove right side panel.
3. Remove center racks and fan shroud from oven chamber.
Maintenance
Replacement Procedures
