Door Gasket

Removal
1. Turn off oven power.
2. Allow oven to cool.
3. Remove the door using one of the two following methods:
• Support weight of the door and remove hinge pin.
• Support weight of the door and remove the three door-to-hinge
bolts.
4. Place door on a flat, clean, smooth table or similar support. Be careful
not to scratch the door.
5. Position door on workbench so that front of door is lying flat.
6. Remove inner panel.
7. Remove and discard gasket.
Installation
1. Clean back of inner door panel. Be sure old sealant is completely
removed.

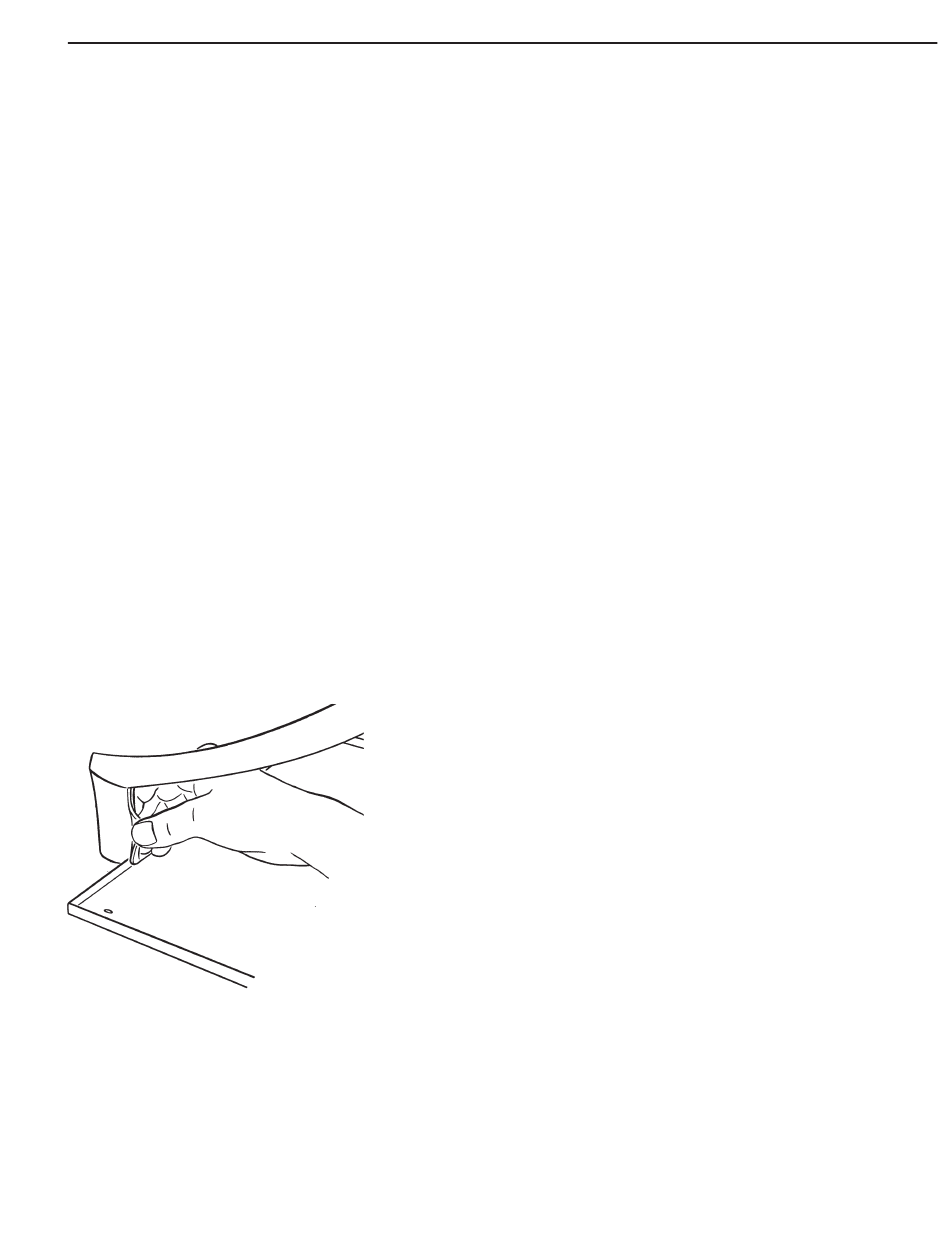

2. Install new gasket around inner panel as shown in this illustration. Be
sure the inner door panel flange is fully inserted into the gasket
groove.
3. Apply a high temperature silicone sealant, such as GE RTV 180 or
equivalent, to the four door spacers.
4. Apply Loctite 242 to the inner panel mounting screws.
5. Install inner panel and gasket on the door spacers, and tighten
mounting screws.
6. Align door with hinge and insert hinge pin.
Apply Loctite 242 to the door-to-hinge bolts, then install door and
mounting bolts. Do not tighten mounting bolts at this time.
7. Align door to oven. See page 8-5.
