Maintenance
Replacement Procedures
Boiler Temperature Probe
installation
(continued)
6. Connect oven to the branch circuit.
7. Turn on oven power and perform the following reset procedure:
a) Turn off oven power by pressing the ON touch pad.
b) While pressing the COMBO touch pad, press the ON touch pad.
If no errors are found, the unit will beep and show four zeros in the
Time display window. If errors are found, the unit will not beep and
service code will be displayed in the Time window. If there are more
. . . . . .than four different errors at one time, some of the numbers
will be . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
displayed in the Cook Temperature window.
c) Press the CLEAR touch pad. Select Combo mode.
d) If the Service light comes on and service codes are displayed,
record the service code number or numbers. Press the CLEAR
touch pad and repeat steps a and b.
e) If the Service light does not come on, the oven should be ready
for operation.

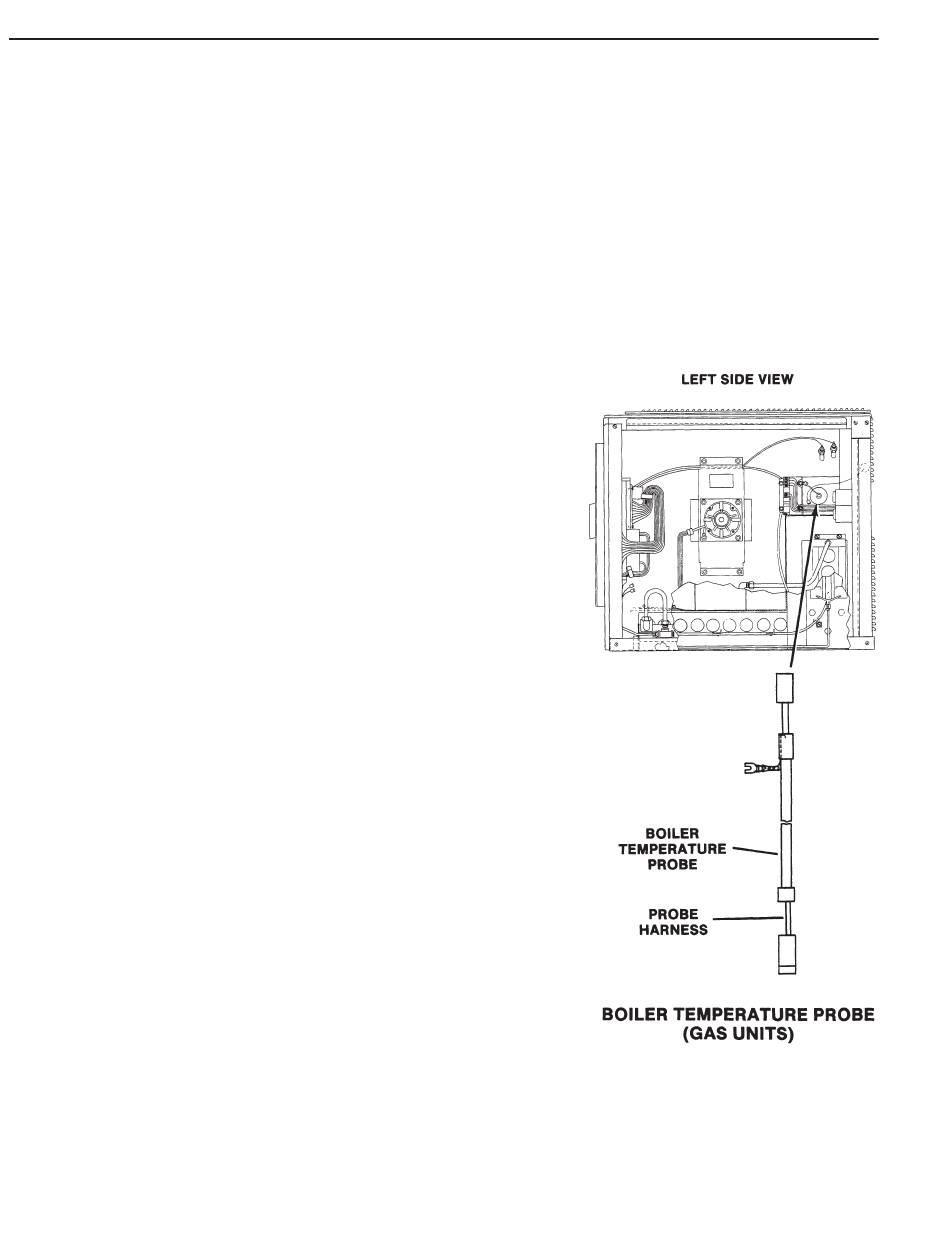

Removal - Gas Units
Be sure oven is disconnected from branch circuit power
before performing any repair work.
1. Turn off oven power and disconnect oven from the branch circuit.
2. Remove right hand side panel.
3. Disconnect boiler temperature probe electrical leads from harness.
4. Loosen brass compression nut on the probe assembly.
The probe fitting may turn with the compression nut. If this should
happen, remove fitting with the probe and compression nut. The probe
and compression nut are an assembly.
5. Remove temperature probe. If male fitting was removed with the
probe and compression nut, remove it from the probe.
8-16
WARNING
IMPORTANT
(Revised 1/02)
