Groen CC20-E Operator's Manual page 27

CC10-E
Parts List
2-24
Item
1
2
3
4
5
6
7
8
9
10
11
12
13
14

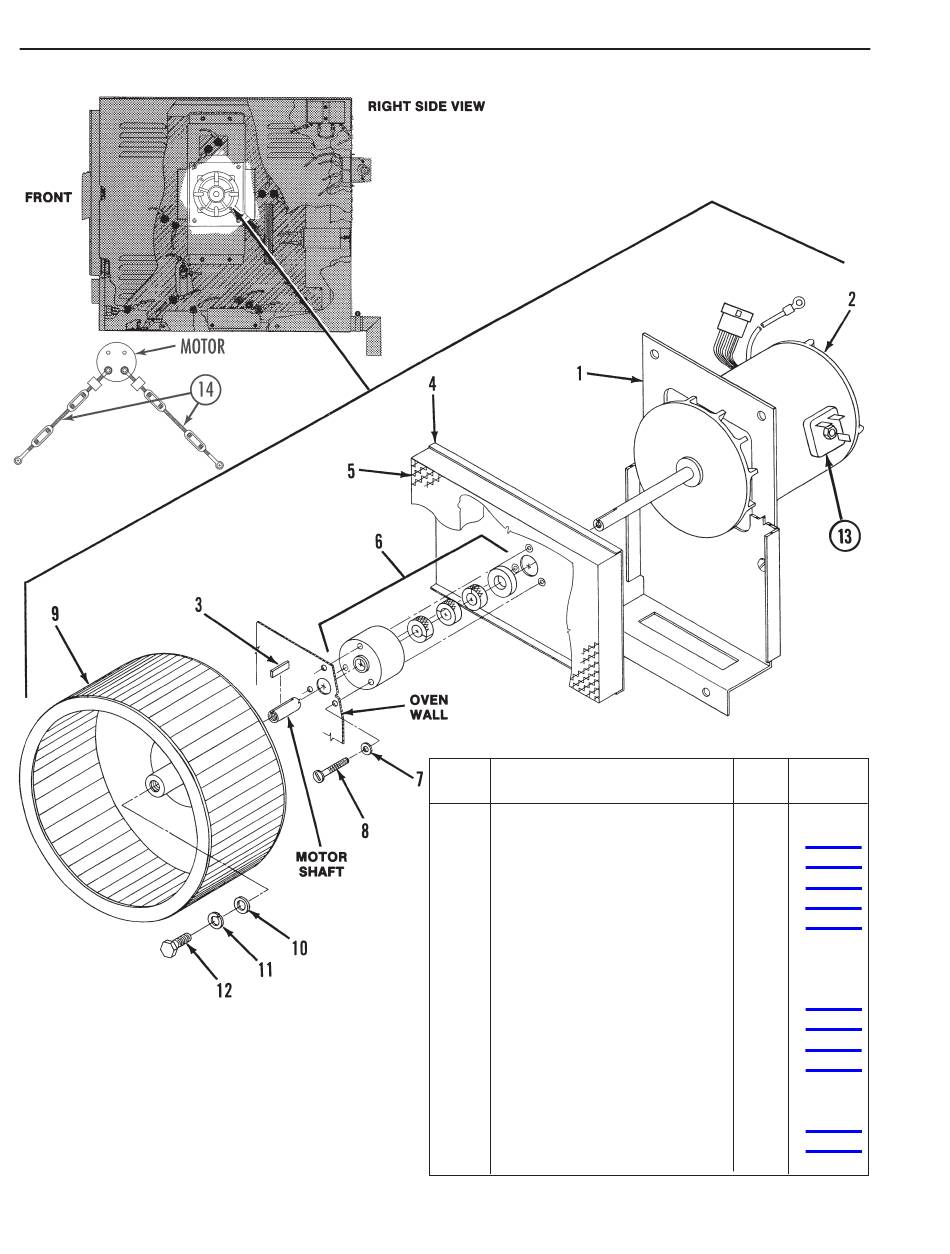

Figure 3. Fan and Motor
Description
Bracket Assy. . . . . . . . . . . . . .
Motor & Heat Slinger Assy.
- 280V/240V . . . . . . . . . . . . .
Key, 1/8' Square 303 S.S. . . .
Insulation Retainer Assy. . . . .
Insulation Nut Plate . . . . . . . .
Motor Seal Assy. . . . . . . . . . .
• Washer Seal Housing . . . . .
• Packing . . . . . . . . . . . . . . . .
• Motor shaft Housing Seal . .
Washer, Fiber . . . . . . . . . . . .
Screw, Truss Head S.S. . . . .
Blower Wheel Assembly . . . .
Washer, Flat . . . . . . . . . . . . .
Washer, Lock . . . . . . . . . . . .
Screw, Hex Head Cap S.S. . .
Motor Start Relay . . . . . . . . .
Kit Fan Isolator . . . . . . . . . . .
Part
Qty. No.
1 070100
1 078802
1 071288
1 071228
1 069770
1 071299
1 070458
3 070459
1 070457
3 071300
3 081698
1 074227
1 059228
1 05656
1 05613
1 077826
1 098684
(Revised 1/02)
