Left Side Door Switch
Removal
1. Turn off oven power and disconnect oven from the branch circuit.
2. Remove right side cover and L- cover (CC10-E), or left side cover
(CC10-G and CC20-G). For the CC20-E unit, remove two screws,
bullet, and panel with switch.
3. Disconnect door switch wires from the relay board.

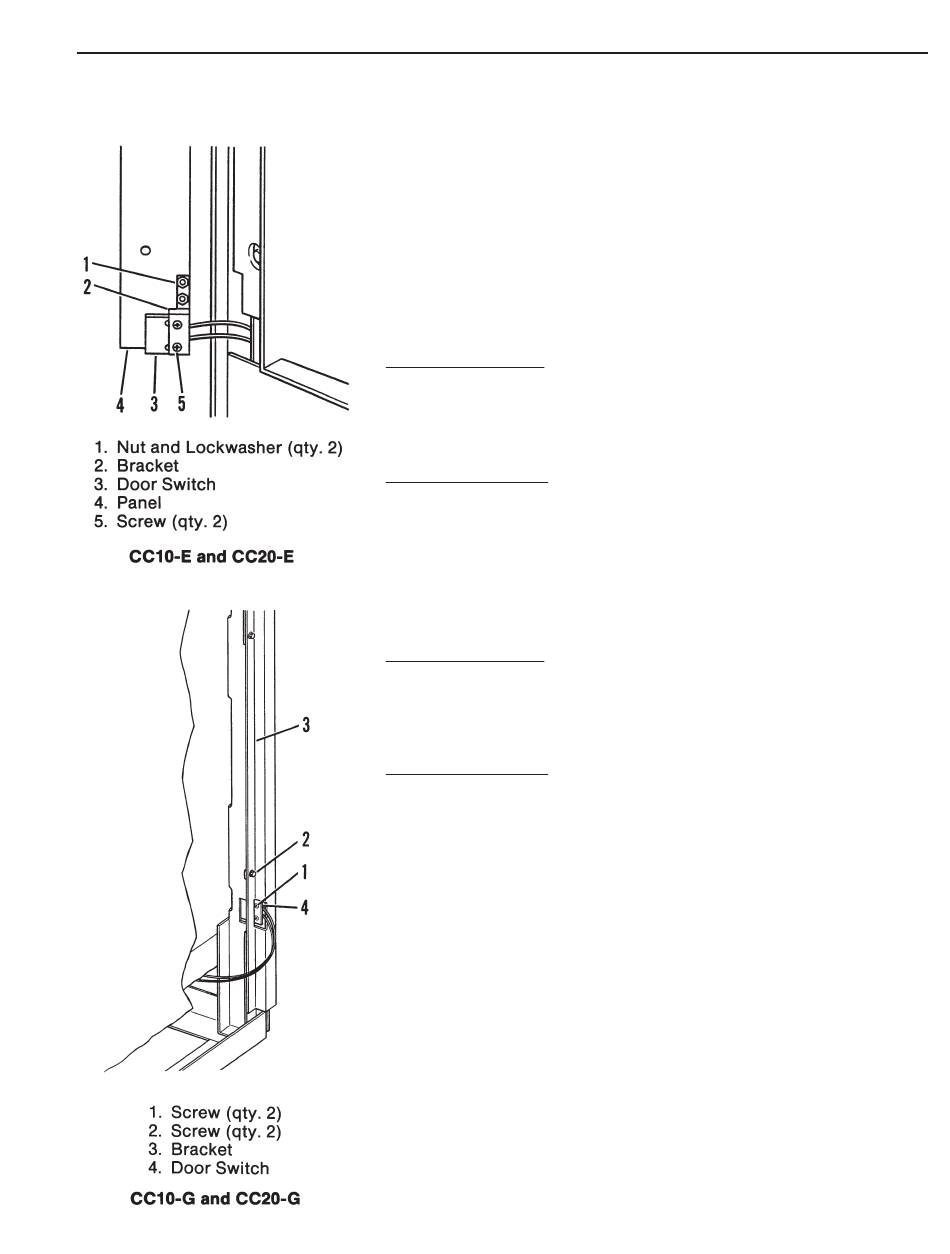

CC10-E and CC20-E
4. Remove two nuts and Iockwashers (1) and remove bracket (2) and
switch (3) from panel (4).
5. Remove two screws (5) and remove switch (3) from bracket (2).
CC10-G and CC20-G
4. Remove two screws (1) and two screws (2).
5. Position bracket (3) just enough to remove door switch (4).
6. Cut switch wires at the switch, but do not remove them from the oven
because they will be used for new switch installation.
Installation
CC10-E and CC20-E
1. Install switch (3) to bracket (2) with screws (5).
2. Install bracket and switch on panel (4), and install nuts and
lockwashers (1).
CC10-G and CC20-G
1. Install switch (4) and screws (1).
2. Place bracket (3) back into its correct location and install screws (2).
3. Tape new switch wires to old switch wires.
4. At the relay board, pull on old switch wires until new switch wires are
visible.
5. Discard old wires and attach new wires to the relay board. Route
wires away from sharp edges and high voltage wires.
6. Fold excess wire into a bundle and wrap with tape.
7. Install L-cover (CC10-E) or left side cover (CC10-G and CC20G). For
the CC20-E unit, install panel (with door switch), bullet, and two
screws. Adjust bullet (see page 8-36).
8. Operate oven in Oven mode. Open and close the door. Fan should
only operate with the door closed.
9. Install right side cover.
