Door Reversing Procedure
1. Turn off oven power.
2. Allow oven to cool.
3. Support door, unplug the door light cable (Models C/2-E and C/2-G),
remove hinge-to-oven bolts, and remove door.
4. Place door, with hinge, on a flat, clean table or similar support, with
gasket facing up, or the inner glass door facing up (Models C/2-E and
C/2-G). Be careful not to scratch door surface.
5. Note and record distance between jam nut and end of door locking
pin (bullet). This information will be needed during bullet installation
i
step 7.
6. Loosen jam nut, then remove door bullet and jam nut.
7. Coat bullet threads with a high temperature (1800°F) anti-seize and
lubricating compound. Install bullet and jam nut directly across oven
cavity from old bullet location. Install these two items so that jam nut-
to-end of bullet distance is approximately the same as measured in
step 5.
8. Remove the two screws from above and below the old bullet location,
and the snap cap over the door lamp socket (Models C/2-E and C/2-G),
and install them above and below the new bullet location.

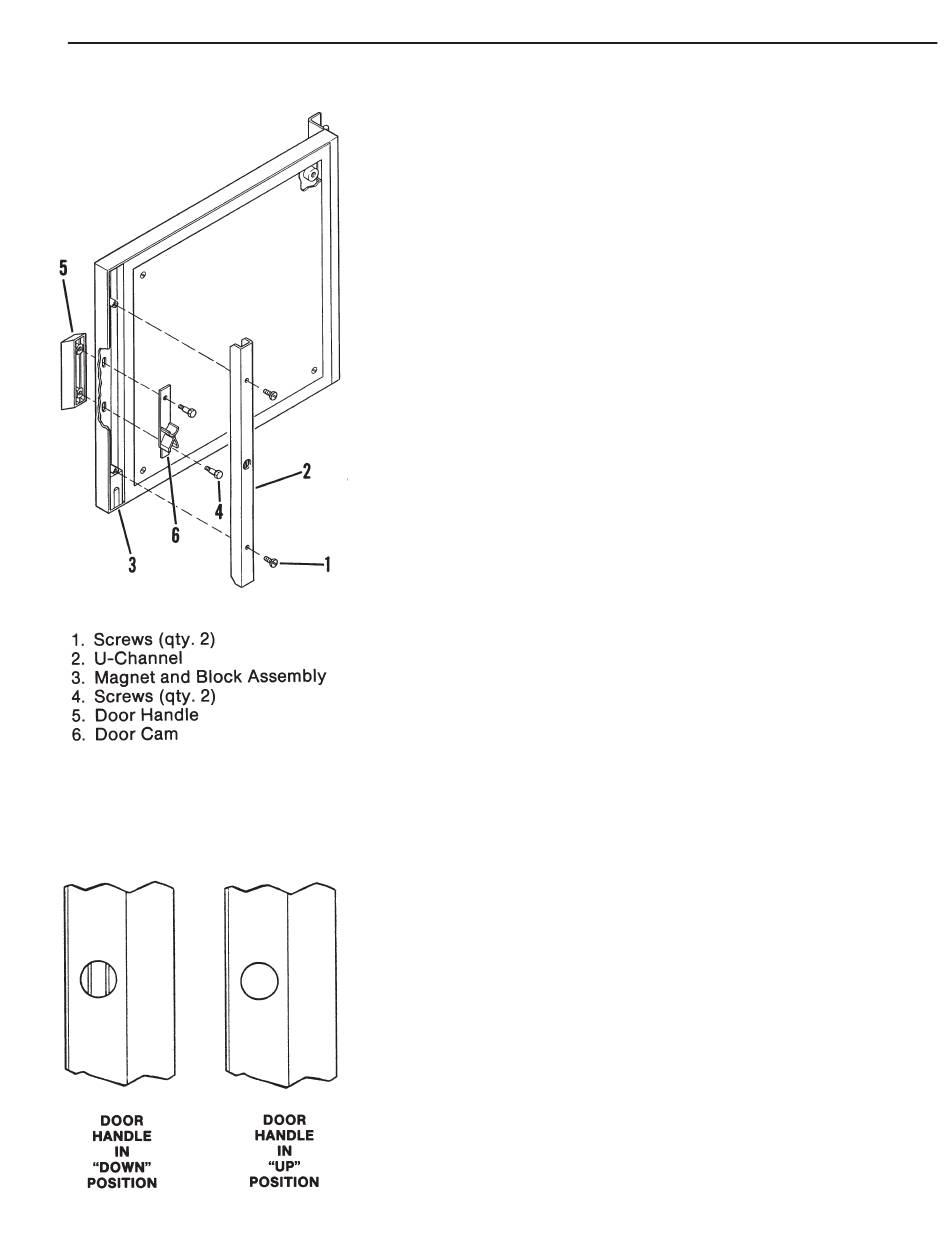

9. Remove screws (1) and U-channel (2) from the door. Note: Screws
(1) are located on the top and bottom flange of the outer door (Models
C/2-E and C/2-G). Take magnet and block assembly (3) from present
location and place it at the opposite end of the door channel, with
magnet facing outward from the door.
10. Remove screws (4). Remove door handle (5) from cam (6).
11. Apply a high temperature (1800°F) anti-seize and lubricating
compound to the cam and Loctite 242 to screw (4) threads.
12. Turn handle (5) and cam (6) 180-degrees from their original positions
and install them on the door with screws (4). Be sure handle and cam
move smoothly.
13. Be sure door handle is in the down position. Turn U-channel (2) 180-
degrees from its original position, hold door spring in U-channel open
with a screwdriver or similar tool, and install U-channel.
14. Check operation of the cam. Push up on the door handle and check
if spring opens. If spring does not open, cam and spring are not
correctly aligned and the problem must be corrected.
15. Apply a light amount of Loctite 242 to screws (1), then install
screws (1).
16. Apply Loctite 242 to the hinge-to-oven bolts, then install door and
hinge mounting bolts. Do not tighten mounting bolts at this time. Plug
the door light cable into the socket and connect the socket power wire
into relay K-1 on the relay board (Models C/2-E and C/2-G).
