Figure 114. Ch1Xor Input As Hall Sensor Interface - Holtek HT32F52342 User Manual

32-Bit Arm ® Cortex ® -M0+ MCU
HT32F52342/HT32F52352
Using one timer as a hall sensor interface to trigger another timer with update event 2
GPTM:
▄
Configure channel 0 to choose an input XOR function (TI0SRC = 1)
▄
Configure channel 0 to be in the input capture mode and TRCED as capture source (CH0CCS=
0x03) and Enable channel 0 (CH0E=1)
▄
Configure the UEVG bit as the source of MTO (MMSEL= 0x00)
▄
Configure TI0BED to be connected to STI (TRSEL = 0x08)
▄
Configure the counter to be in the slave restart mode (SMSEL = 0x04)
▄
Enable GPTM (TME=1)
MCTM:
▄
Select GPTM MTO to be the STI source of MCTM (TRSEL = 0x0A)
▄
Enable the CHxE, CHxNE and CHxOM preload function (COMPRE = 1)
▄
Select the rising edge on STI to generate an update event 2 (COMUS = 1)
▄
Enable the update event 2 interrupt (UEV2IE = 1)
▄
In the update event 2 ISR: write CHxE, CHxNE and CHxOM register for the next step
TI0XOR
CH1CCR
CH1NO
CH2NO
CH3NO

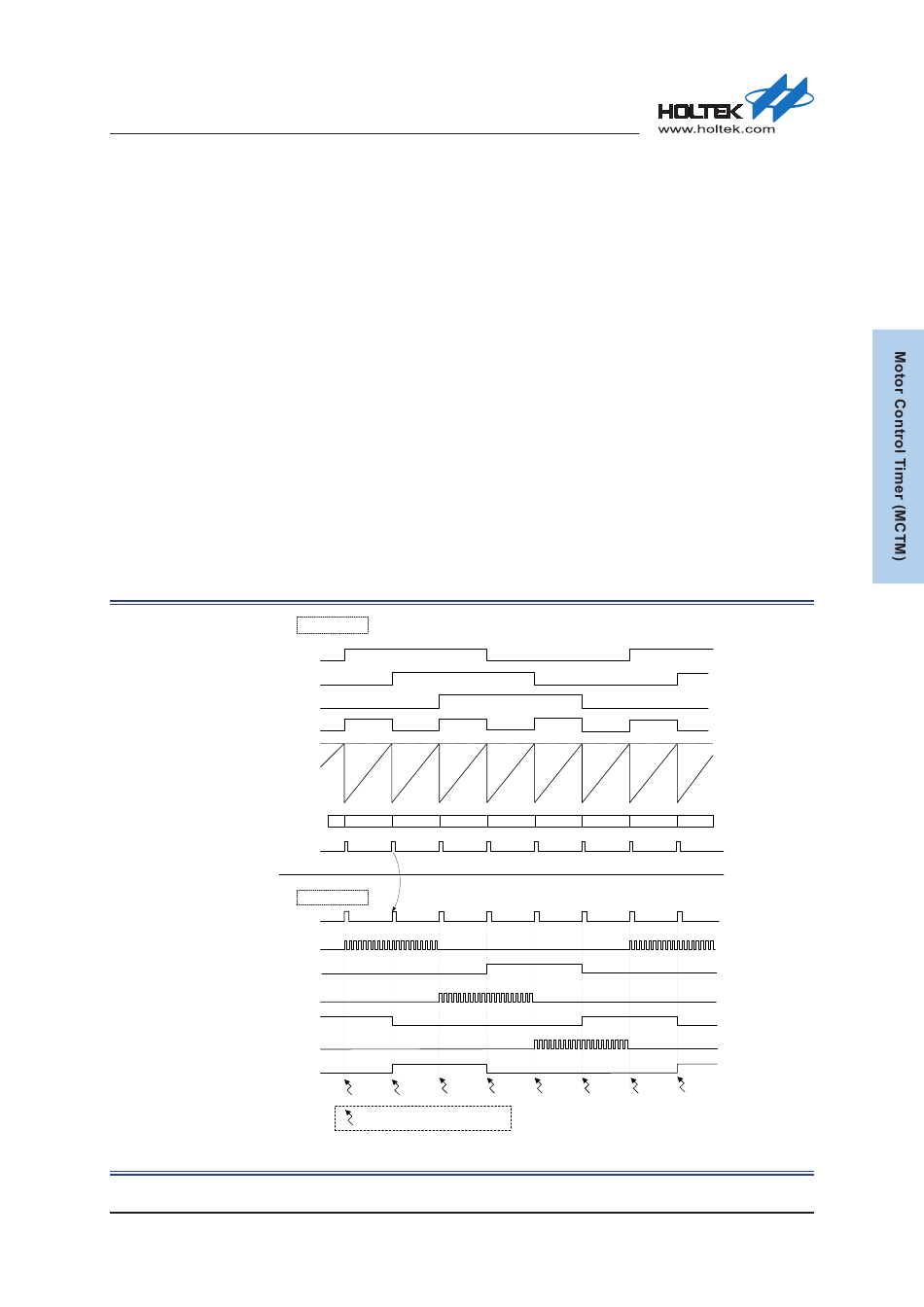

Figure 114. CH1XOR Input as Hall Sensor Interface
