One Shot Mode

By setting the OSM bit in BFTMCR register to 1, the BFTM will operate in the one shot mode. The
BFTM starts to count when the CEN bit is set to 1 by the application program. The counter value
will remain unchanged if the CEN bit is cleared to 0 by the application program. However, the
counter value will be reset to 0 and stop counting when the CEN bit is cleared automatically to 0 by
the internal hardware when a counter compare match event occurs.
CMP
CNT
MIF
CEN

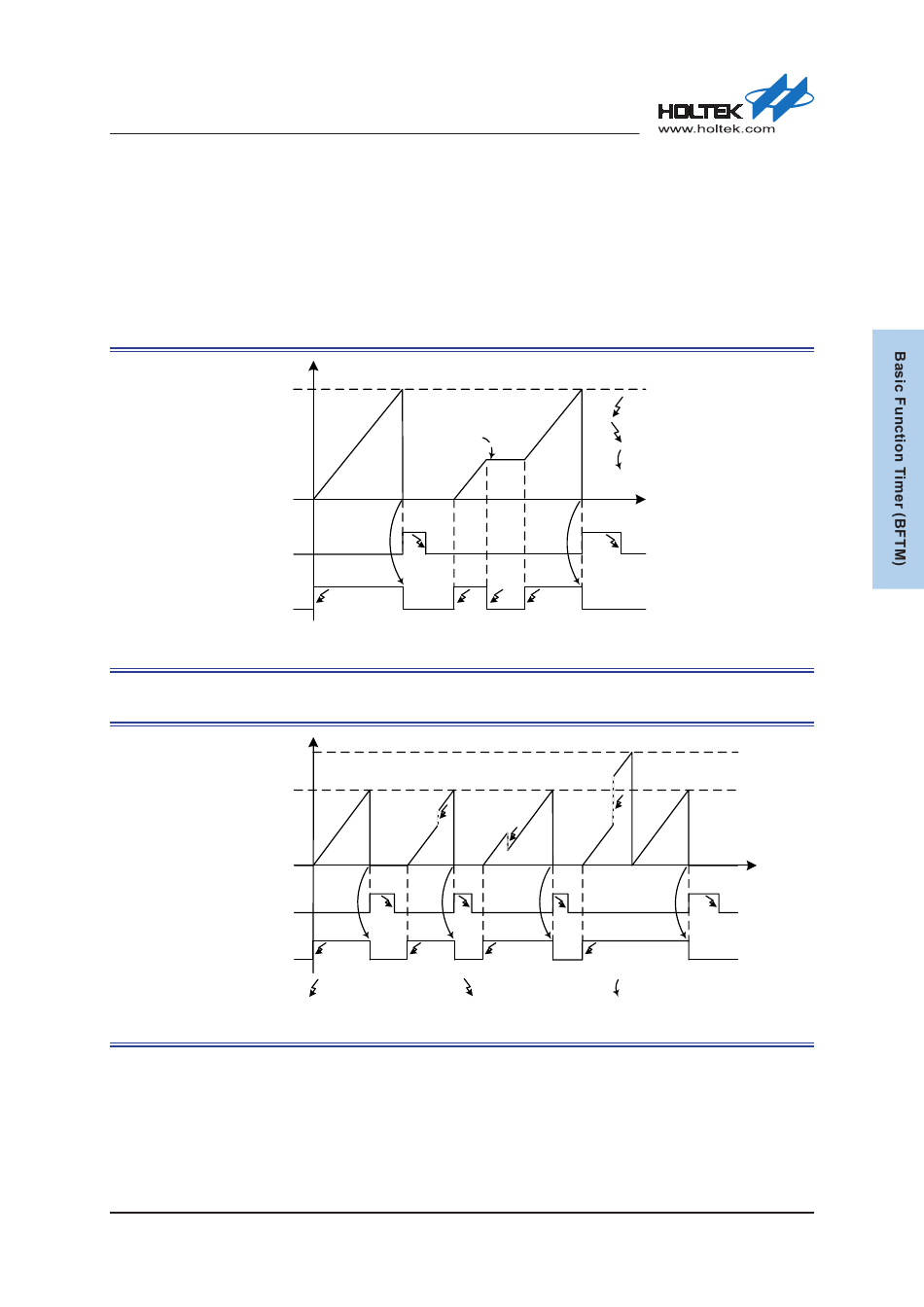

Figure 71. BFTM – One Shot Mode
0xFFFF_FFFF
CMP
CNT
MIF
CEN
Figure 72. BFTM – One Shot Mode Counter Updating
Trigger ADC Start
When a BFTM compare match event occurs, a compare match interrupt f lag, MIF, will be
generated which can be used as an A/D Converter input trigger source.
