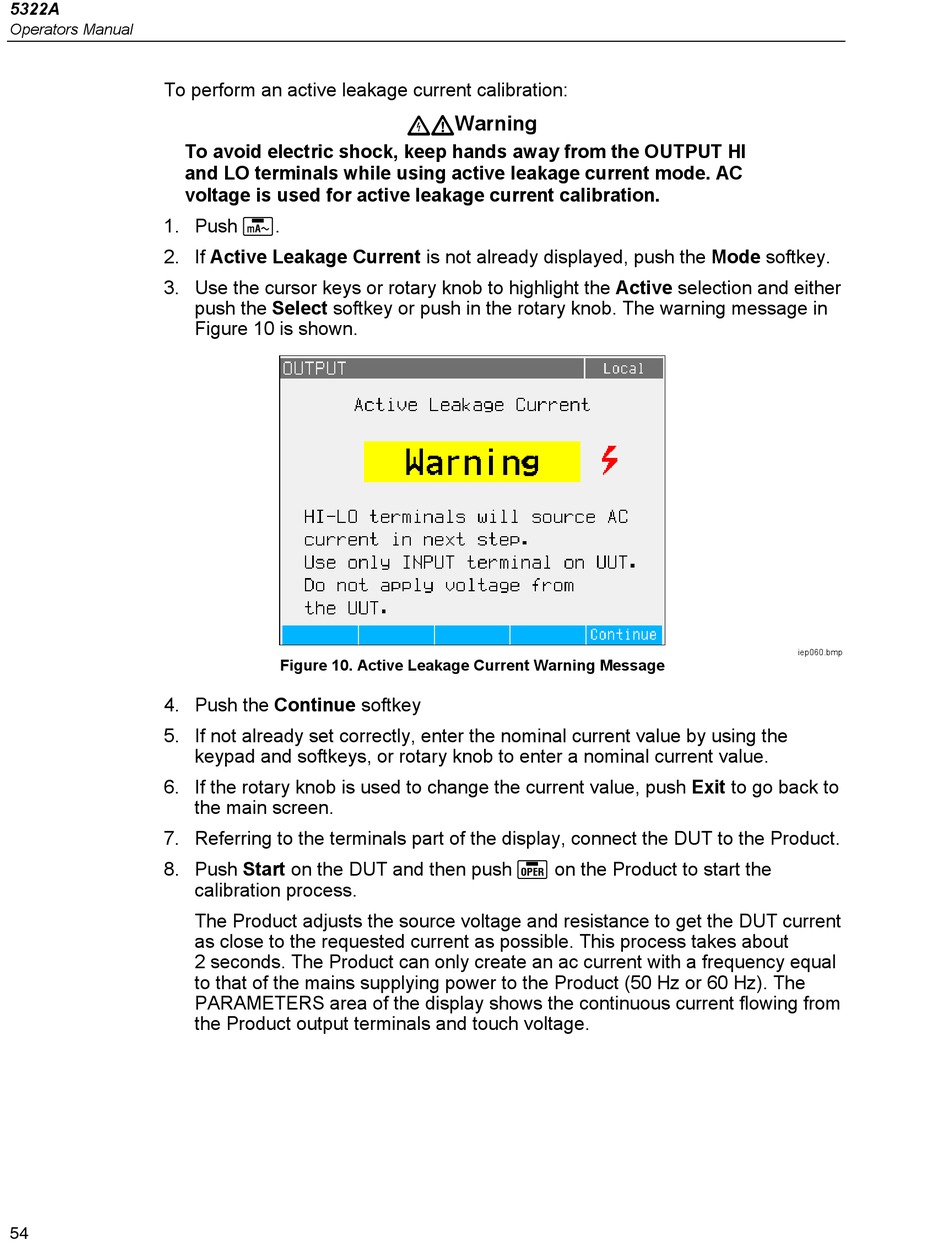

To perform an active leakage current calibration:
To avoid electric shock, keep hands away from the OUTPUT HI
and LO terminals while using active leakage current mode. AC
voltage is used for active leakage current calibration.
1. Push .
2. If Active Leakage Current is not already displayed, push the Mode softkey.
3. Use the cursor keys or rotary knob to highlight the Active selection and either
4. Push the Continue softkey
5. If not already set correctly, enter the nominal current value by using the
6. If the rotary knob is used to change the current value, push Exit to go back to
7. Referring to the terminals part of the display, connect the DUT to the Product.
8. Push Start on the DUT and then push  on the Product to start the
54
push the Select softkey or push in the rotary knob. The warning message in
Figure 10 is shown.
Figure 10. Active Leakage Current Warning Message
keypad and softkeys, or rotary knob to enter a nominal current value.
the main screen.
calibration process.
The Product adjusts the source voltage and resistance to get the DUT current
as close to the requested current as possible. This process takes about
2 seconds. The Product can only create an ac current with a frequency equal
to that of the mains supplying power to the Product (50 Hz or 60 Hz). The
PARAMETERS area of the display shows the continuous current flowing from
the Product output terminals and touch voltage.
XWWarning
